English Translation of Title:

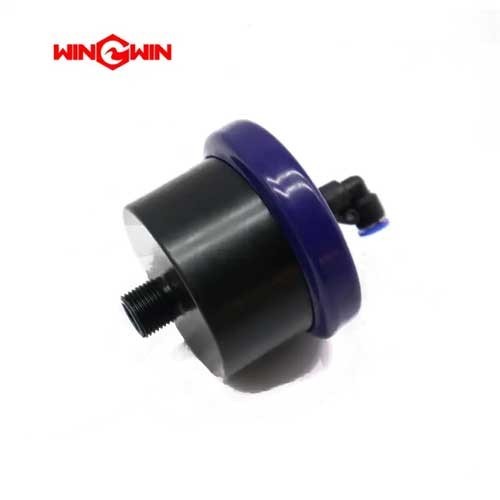

Pneumatic Actuator Assembly – Normally Closed, for Water Jet Cutting Machine Parts, Model No. 10177855-Pneumatic-Actuator-Assembly-NC.977.3-1

Introduction, Application, Features, and Maintenance:

This component is a normally closed pneumatic actuator assembly designed for water jet cutting systems. It converts compressed air energy into linear mechanical motion to actuate valves, clamps, or other machine functions, with a default closed position when air supply is removed (fail‑safe).

Application:
Used to control pneumatic valves, safety gates, clamping devices, or cutting head positioning systems in water jet cutting machines. Typical installations include abrasive flow control valves, high‑pressure dump valves, or safety interlock mechanisms that require fail‑safe closure.

Features:

• Normally closed design ensures the actuator returns to the closed position upon loss of air supply (fail‑safe).

• Provides reliable linear force for actuating machine components.

• Manufactured from durable, corrosion‑resistant materials suitable for industrial water jet environments.

• Compact assembly integrates cylinder, piston, and mounting hardware.

• Responsive operation allows precise control of valve or device positioning.

• Suitable for repeated cycling in high‑duty applications.

Maintenance:

• Regularly inspect the cylinder body, piston rod, and seals for signs of wear, leakage, or damage.

• Check for air leaks at fittings and connections during operation.

• Verify smooth piston movement; sticking or binding may indicate contamination or seal wear.

• Lubricate moving parts with compatible pneumatic oil as recommended.

• Replace seals or the entire assembly if air leakage, reduced force, or erratic operation is observed.

• Ensure the air supply is clean and dry to extend component life.

• Follow the manufacturer’s maintenance schedule for seal replacement and lubrication.
