English Translation of Title:

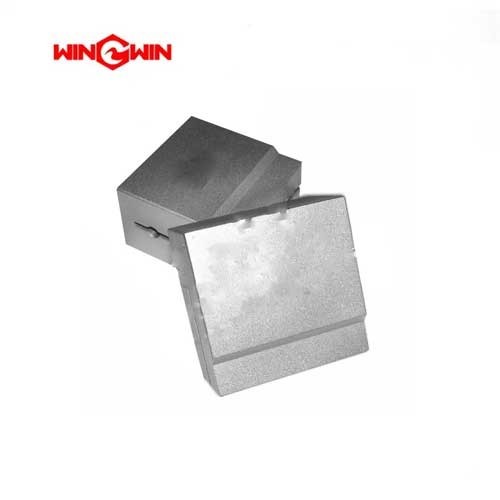

Water Jet Pump Tube Vise – 10 mm, Model No. 20440071-Water-Jet-Pump-Tube-Vise-10.1022.3-1

Introduction, Application, Features, and Maintenance:

This component is a tube vise designed for water jet pump systems. It is a clamping device used to securely hold, support, or position high‑pressure tubes or pipes within the machine, featuring a 10 mm capacity.

Application:
Used to secure and stabilize high‑pressure tubing in water jet cutting machines. Typical installations include mounting tube bundles, supporting rigid lines near the pump or cutting head, and preventing vibration‑induced movement or fatigue in critical piping sections.

Features:

• Designed for 10 mm outer diameter tubes or pipes.

• Provides secure clamping to prevent tube movement and reduce vibration.

• Manufactured from high‑strength, corrosion‑resistant material suitable for harsh water jet environments.

• May include protective liners (e.g., rubber or plastic) to prevent tube damage.

• Adjustable or fixed design for easy installation and alignment.

• Helps extend tube service life by minimizing stress and fatigue.

Maintenance:

• Regularly inspect the vise body, clamping surfaces, and fasteners for signs of corrosion, wear, or loosening.

• Check that the clamped tube remains secure and properly aligned.

• Inspect protective liners for wear or damage that could expose the tube to metal contact.

• Replace the vise immediately if any cracks, deformation, or loss of clamping force is observed.

• Follow specified torque values for mounting fasteners.

• Clean the clamping area periodically to prevent abrasive particle buildup.
