English Translation of Title:
Water Jet Cutter Pump Parts – High-Pressure Bushing, 56 x 25, Male-to-Female, Model No. 10079580-Water-Jet-Cutter-Pump-Parts-HP-Bushing-56-x-25-MF.929.3-1

Introduction, Application, Features, and Maintenance:

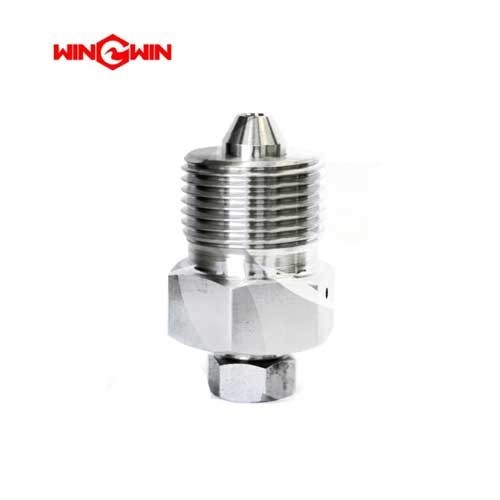

This component is a high-pressure reducing bushing with a male-to-female thread configuration, designed specifically for water jet cutter pump systems. It connects two high-pressure components of different sizes, reducing from a larger male port (56 mm) to a smaller female port (25 mm).

Application:
Used to adapt and connect high-pressure pump outlets or lines to smaller downstream components in water jet cutting machines, typically installed directly at the pump discharge or between high-pressure piping sections where size reduction from male to female is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Male-to-female (MF) configuration allows direct size reduction without additional adapters.

• Reduces from 56 mm male interface to 25 mm female interface, enabling compatibility between pump outputs and standard cutting head supply lines.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Compact design minimizes additional leak points in the high-pressure circuit.

Maintenance:

• Regularly inspect the bushing body, male threads, female threads, and sealing surfaces for signs of erosion, cracking, or thread damage.

• Check for high-pressure leakage at both connection ends during pump operation.

• Replace immediately if any surface pitting, deformed threads, or pressure loss is detected.

• Always use compatible seals or washers as required for the female connection.

• Follow specified torque values when tightening both male and female ends.
