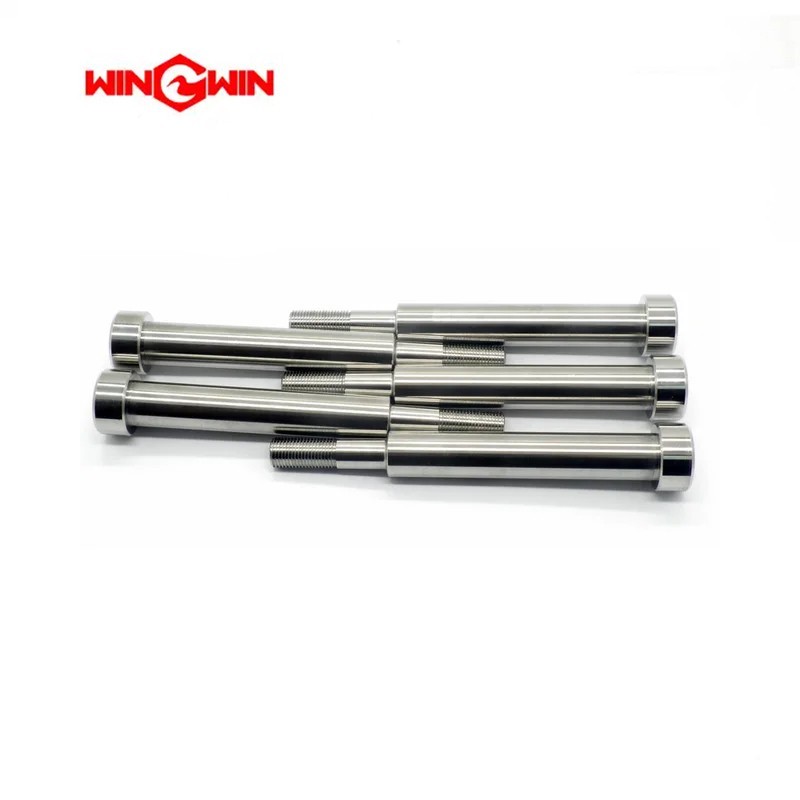

Product Name: Focusing Tube / Mixing Tube (Nozzle Tube) – Part No. 05136023

Description:
This component is a high-pressure focusing tube, also known as a mixing tube, nozzle tube, or abrasive nozzle, specifically designed for abrasive waterjet cutting systems . It is a precision-machined cylindrical consumable component manufactured from ultra-hard, wear-resistant tungsten carbide material to withstand the extreme erosive forces of high-velocity water and garnet abrasive particles .

The focusing tube is installed in the cutting head assembly immediately downstream of the mixing chamber and water orifice. Inside the tube, the high-pressure waterjet (typically up to 60,000-94,000 PSI / 4,137-6,480 bar) and abrasive particles are accelerated and focused into a coherent, high-velocity cutting stream . As a critical high-wear consumable part, it requires periodic replacement as its inner bore gradually erodes over time, which directly affects cut quality, kerf width, and cutting accuracy .

Dimensional Specifications:

• Nominal Length: 9.50 inches (approximately 241.30 mm)

• Actual Length: 9.15 inches (approximately 232.41 mm)

• Inner Diameter (ID): Refer to manufacturer specifications; standard sizes typically range from 0.020" to 0.060" depending on application

• Pressure Rating: 60,000-94,000 PSI (approximately 4,137-6,480 bar)

• Material: Tungsten Carbide / ROCTEC series

Applications:

• Serves as the final focusing element for the abrasive waterjet, directing the cutting stream onto the workpiece

• Defines the kerf width, cutting precision, and edge quality for the waterjet system

• Installed in the cutting head assembly of compatible waterjet systems

• Used during scheduled preventive maintenance, performance restoration, or when cutting quality visibly degrades

Features:

• Tungsten Carbide / Composite Material Construction: Provides exceptional wear resistance and extended service life under extreme abrasive flow conditions

• Precision Inner Diameter (ID): Manufactured to exacting tolerances to ensure a coherent, straight jet for clean, narrow kerf cuts

• Optimized Length: The specific length is engineered for specific cutting head configurations to maximize jet coherence

• High-Pressure Rating: Engineered for continuous operation at 60,000-94,000 PSI

• Critical Consumable Component: As a high-wear part, requires periodic replacement; lifespan depends on abrasive type, flow rate, operating pressure, and water quality

• Compatibility: Designed to be compatible with specific waterjet cutting heads and systems, ensuring proper fit and functionality within the overall cutting assembly

Maintenance:

Expected Service Life:

• Typical mixing tube lifespan ranges from 50 to 1,000 hours depending on operating conditions, abrasive type, and water quality . Tungsten carbide mixing tubes such as ROCTEC 100 typically last 50-100 hours under standard operating conditions . Under optimal conditions with high-quality water filtration and dry abrasive, lifespan can extend to 200-1,000 hours .

Failure Diagnosis (When to Replace):

• Reduced Cutting Performance: Noticeable decrease in cutting speed, rougher edge finish, or increased kerf width indicates bore wear

• Visible Bore Damage: Inspect the exit orifice for ovality, flaring, or visible bore enlargement using a magnifying glass

• Asymmetric Wear: Uneven wear on the tube outlet circumference indicates misalignment between the water orifice and focusing tube

• Jet Divergence: If the abrasive/water stream appears scattered or divergent, the focusing tube may be worn

• Loss of Tolerances: When cutting tolerances drop below acceptable levels, replace the mixing tube

• Clogged Tube: Complete blockage results from wet or contaminated garnet abrasive

Inspection and Replacement Guidelines:

• Rotation Practice (Critical): Rotate the focusing tube by 1/4 turn (90 degrees) every 8-10 operating hours to distribute wear evenly around the circumference and significantly extend service life . This practice avoids uneven wear, helps minimize tapering, and maximizes mixing tube life

• Orifice-to-Tube Ratio: Maintain the manufacturer's recommended diameter ratio between the water orifice and focusing tube. The mixing tube diameter should typically be 2.5 to 5 times the orifice diameter

• Alignment Check: Ensure perfect coaxial alignment between the water orifice and focusing tube. Misalignment causes asymmetric bore wear, poor cut quality, and significantly reduced tube life

• Handling Caution: The focusing tube is extremely hard but brittle; handle carefully to avoid chipping, cracking, or impact damage during installation

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures

• Clean Installation: Perform all maintenance in a clean area. Contamination such as garnet particles, metal chips, or dust can negatively impact cutting performance

• Water Quality Impact: Poor water quality with contaminants accelerates tube wear; maintain proper water filtration to maximize component life. Use of a "last chance filter" installed just before the orifice prevents particles from entering the system

• Abrasive Quality: Use clean, dry, high-quality garnet abrasive. Wet or contaminated abrasive causes clogging and accelerated wear

• Check for Leaks: Before operation, ensure all connectors (high-pressure water pipe, abrasive hose) are tightly clamped; apply thread sealant to connection threads to prevent loosening

• Torque Compliance: When reinstalling the retaining nut, tighten to the specific torque value listed in the equipment service manual; over-tightening may crack the tube

• Replace When Worn: For maximum accuracy, replace the mixing tube more frequently . The size of the kerf and cutting performance are the best indicators of mixing tube wear

• Storage: Store spare focusing tubes in a clean, dry, protective environment to prevent pre-service damage to the delicate inner bore

Cross-Reference Information:

• Table Reference: Table 12-44 Nozzle Tubes

• Nominal Length: 9.50″ (241.30 mm) / Actual Length: 9.15″ (232.41 mm)

• Pressure Rating: 60,000-94,000 PSI

• Material: Tungsten Carbide

• Compatible with: KMT, AccuStream, Flow, OMAX, BFT, WSI, and other standard waterjet systems

• Part of the high-pressure waterjet nozzle tube family
