English Translation of Title:

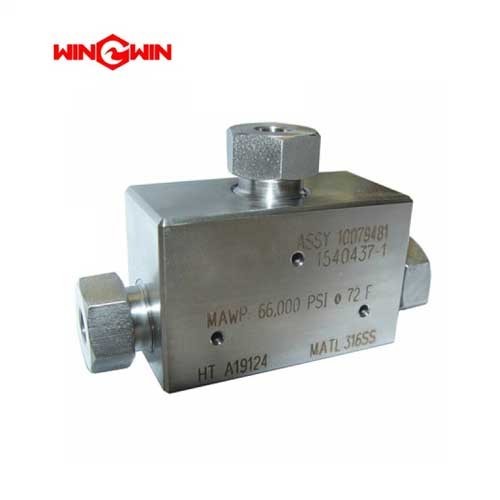

Water Jet Cutting Machine Parts – Tee Fitting, 25 mm, Model No. 10079481-SL-VI-50HP-Waterjet-Parts-Tee-25.941.3-1

Introduction, Application, Features, and Maintenance:

This component is a high-pressure tee fitting designed for water jet cutting systems. It features three connection ports arranged in a T-shaped configuration, allowing flow to be split or combined at a 90-degree angle.

Application:
Used to divide or merge high-pressure water or abrasive slurry flow in water jet cutting machines, typically installed to supply multiple cutting heads from a single pump or to combine return lines.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Three equal ports at 25 mm interface size, configured in a T shape.

• Allows 90-degree branch flow from the main line with minimal pressure loss.

• Constructed from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Compact design enables efficient routing of high-pressure lines in tight machine spaces.

Maintenance:

• Regularly inspect all three ports and the tee body for signs of erosion, cracking, or leakage.

• Check for uneven flow or pressure drops at branch ports, which may indicate internal wear or blockage.

• Replace immediately if any surface pitting, thread damage, or visible wear is detected.

• Follow specified torque values when tightening all three connections.

• Use only compatible seals and washers during reassembly.
