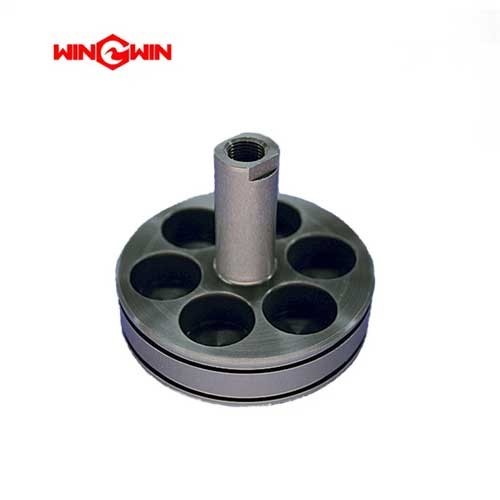

Product Name: Pneumatic Actuator Assembly, Normally Closed (Piston / Component) – Part No. 05145990

Description:
This component is the internal piston for the Normally Closed (NC) pneumatic actuator assembly used in high-pressure waterjet on/off valves (water switches) . As the moving element within the pneumatic cylinder, its primary function is to convert compressed air energy into linear mechanical force to actuate the valve stem .

In a Normally Closed configuration, the valve remains closed when no air pressure is applied—a critical safety feature ensuring the waterjet stops automatically if air supply is lost. When compressed air (typically 85-120 PSIG) is supplied, the piston moves to open the water flow path, allowing the cutting jet to start . This piston is a standard component in the 60K Actuator Assembly (P/N 10177855) and is listed as Item 1 in the pneumatic actuator parts diagram .

Applications:

• Converts pneumatic pressure into mechanical force to actuate the water on/off valve (water switch) on 60,000 PSI waterjet cutting systems

• Serves as the primary moving element within the VL10177855 60K Actuator Assembly

• Used during scheduled preventive maintenance or when the actuator fails to open or close properly

• Compatible with KMT, AccuStream, H2O Jet, and other standard waterjet systems

Features:

• Normally Closed (NC) Configuration: The valve remains closed without air pressure, enhancing operator safety

• Precision-Machined Construction: Manufactured to exact tolerances for smooth reciprocating motion within the actuator cylinder

• Durable Material: Constructed from high-strength, corrosion-resistant material to withstand harsh waterjet environments

• Standard Component: Used with the VL10177855 60K Actuator Assembly, which includes the cylinder, top cover, snap ring, wiper seal, compression springs (6), O-rings, SST backup ring, and actuator cover

• Lightweight: Weight is approximately 0.354 lbs (0.161 kg) for easy handling during maintenance

Maintenance:

Failure Diagnosis (When to Replace):

• Valve Fails to Open: If the cutting head does not produce a waterjet when the control signal is given, the piston may be stuck or damaged

• Valve Fails to Close: If water continues to flow when the control signal is off, the piston or return springs may be worn

• Slow or Sluggish Actuation: Delayed valve response indicates internal wear, low air pressure, or seal degradation

• External Air Leakage: Hissing sounds or feeling air escaping from the actuator body indicates worn seals

• Physical Damage: Cracks, corrosion, or visible damage to the piston surface

• Scheduled Preventive Maintenance: Replace the piston during actuator rebuilds or when seals are replaced

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system (high-pressure water and air supply) and follow lockout/tagout procedures

• Check Air Supply: First verify the air supply is within the required range (85-120 PSIG) and the supply line is not kinked or blocked

• Disassembly: Remove the actuator from the valve body, unscrew the top cover, and remove the snap ring to access the piston and spring stack

• Inspect Piston Surface: Examine the piston for scoring, galling, or uneven wear. Replace if any surface damage is visible

• Replace as Part of Complete Assembly: When piston wear is detected, it is recommended to replace or rebuild the entire actuator assembly, including seals, springs, and O-rings

• Use Repair Kits: For seal replacement, use dedicated actuator repair kits (e.g., VL20422228) which include the spring kit (05054119), wiper seal (10177780), and O-rings (10177806)

• Spring Inspection: The actuator uses six compression springs (05054119) . Inspect springs for fatigue, breakage, or loss of tension; replace all six as a set if any damage is detected

• Lubrication: Apply a small amount of manufacturer-recommended pneumatic tool oil or high-pressure grease to the piston and seals during reassembly to prevent dry start-up

• Torque Compliance: When reassembling the actuator, tighten the top cover and mounting hardware to the specific torque values listed in the equipment service manual

• Test Operation: After reassembly, test at low air pressure first to verify smooth piston movement before returning to full operation

• Cross-Reference Part Numbers: KMT #05145990, WSI #VL20411546, and other industry equivalents (103930)
