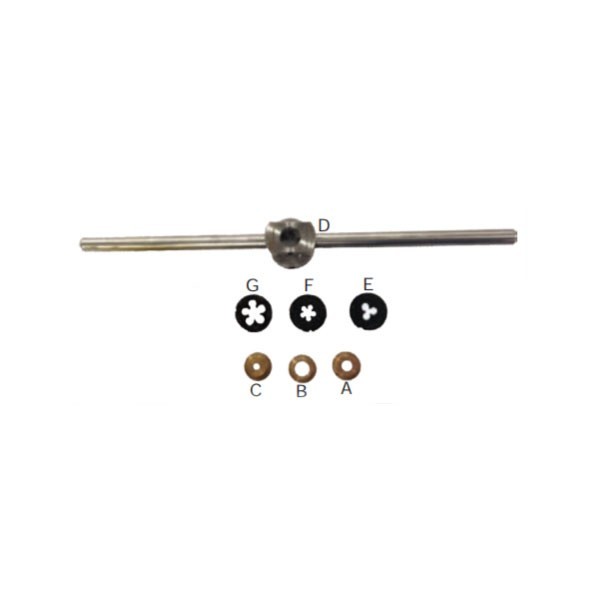

Product Name: Threading Kit / High-Pressure Thread Repair Kit (Part No. 302024-1 / 392024-1)

Description:
The Threading Kit 302024-1 (also identified as 392024-1) is a specialized high-pressure thread repair kit designed for 94,000 PSI (approximately 6,480 bar) waterjet intensifier pump components. This kit is specifically engineered for repairing or re-cutting damaged high-pressure threads on critical intensifier components such as check valve bodies, high-pressure cylinder ends, and fitting ports, where precision threads are essential for maintaining leak-free ultra-high pressure integrity .

Thread damage in ultra-high pressure components often occurs due to galling (a form of wear caused by adhesion between sliding surfaces), cross-threading during assembly, corrosion, or simple fatigue over thousands of pressure cycles . This kit provides the specialized tools and guides necessary to restore damaged threads to OEM specifications without the costly need to replace the entire expensive component body.

The kit is rated for use on components designed for 94,000 PSI operation and is compatible with H2O Jet, FLOW, KMT, and AccuStream waterjet intensifier systems. It is an essential specialized service tool for professional waterjet maintenance facilities.

Applications:

• Repairs damaged high-pressure threads on check valve bodies

• Restores threads on high-pressure cylinder ends and fitting ports

• Removes galling and thread deformation on intensifier components

• Used during major maintenance or component refurbishment when thread damage is detected

• Compatible with 94K waterjet intensifier systems from H2O Jet, FLOW, AccuStream, and KMT

Features:

• Specialized Thread Restoration: Engineered specifically for ultra-high pressure component threads

• 94,000 PSI Compatibility: Designed for components rated for the highest pressure class

• Complete Kit: Includes specialized threading tools or guides for precise restoration

• OEM Specification: Restores threads to meet original equipment manufacturer tolerances

• Component Salvage: Allows repair rather than replacement of expensive intensifier components

• Cross-Brand Compatibility: Suitable for H2O Jet, FLOW, KMT, and AccuStream systems

Maintenance:

When to Use (Failure Diagnosis):

• Thread Galling or Seizure: Visible thread damage, galling, or difficulty threading components together

• External Leakage: High-pressure water leaking from threaded connections despite proper seal replacement

• Cross-Threaded Components: Damage caused by incorrect assembly techniques

• Corrosion Damage: Thread degradation from water exposure over extended service life

• Component Refurbishment: During major overhaul when threads show signs of wear

Usage Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures

• Proper Tool Use: Follow the kit instructions carefully; thread restoration on 94K components requires precision

• Clean Work Area: Perform thread repair in a clean area to prevent contamination of the thread surfaces

• Component Inspection: After thread repair, thoroughly inspect the component for cracks or other damage before reinstallation

• Thread Verification: Use appropriate thread gauges to verify repair meets OEM specifications

• Replacement Criteria: If thread damage is too severe to repair safely, replace the component entirely

Cross-Reference Information:

• 302024-1

• 392024-1

• Compatible with 94K intensifier systems

• H2O Jet part number reference
