Product ID: 05144670 – Poppet Retainer / Inlet Poppet Retainer (Check Valve Component)

Description:

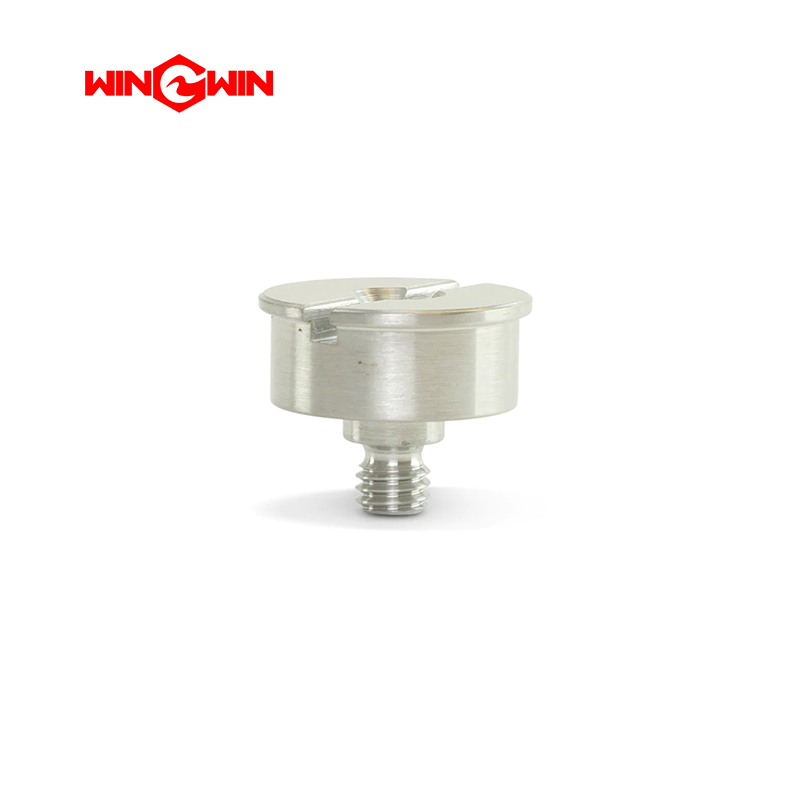

This component is a poppet retainer, specifically an inlet poppet retainer, designed for high-pressure waterjet intensifier pumps. It is a precision-machined, cylindrical or ring-shaped component that serves as a positioning and retaining element within the inlet check valve assembly. The poppet retainer holds the inlet poppet, spring, and associated sealing components in their correct positions within the check valve body, ensuring proper alignment and movement during valve operation. This retainer is specifically designed for the inlet (intake) side of the check valve assembly and is rated for ultra-high pressure operation.

Applications:

• Used in waterjet intensifier pumps to retain and position the inlet poppet and its associated spring within the inlet check valve assembly.

• Installed in the check valve body, securing the inlet poppet against the inlet seat while allowing controlled axial movement for valve opening and closing.

• Suitable for ultra-high pressure waterjet systems, typically operating at 60,000 PSI (approximately 4,137 bar).

Features:

• Constructed from high-strength, wear-resistant, and corrosion-resistant material (typically hardened stainless steel or alloy steel) to withstand repeated contact with the poppet and spring under extreme pressure cycling.

• Precision-machined internal bore and external geometry ensure proper fit within the check valve body and correct alignment of the poppet.

• Functions as a guide to maintain coaxial alignment between the poppet and seat, ensuring consistent sealing performance.

• Engineered to allow the poppet to move freely within a controlled range while preventing dislodgement or misalignment.

• Designed as a durable component but may wear over time and require replacement during check valve servicing.

Maintenance:

• Inspection: During check valve overhaul or preventive maintenance, inspect the poppet retainer for signs of wear, scoring, deformation, cracking, or corrosion. Pay particular attention to the internal bore where the poppet slides.

• Replacement Criteria: Replace the poppet retainer if any visible wear, scoring, deformation, or cracking is detected. A worn retainer can cause misalignment of the poppet, leading to poor sealing, pressure loss, and reduced cutting performance.

• Set Replacement: When servicing the inlet check valve, it is recommended to replace the poppet retainer simultaneously with the inlet poppet, inlet seat, and spring as a set to ensure optimal performance.

• Spring Inspection: During disassembly, inspect the associated inlet spring for fatigue, breakage, or loss of tension; replace if damaged.

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing the check valve assembly or replacing the poppet retainer.

• Proper Assembly: During reassembly, ensure the poppet retainer is correctly oriented and fully seated in its position within the check valve body before tightening.

• Torque Compliance: Tighten all check valve components to the torque values specified in the equipment service manual to ensure proper compression and alignment.

• Kit Availability: This poppet retainer is commonly available as part of inlet check valve repair kits, which include the retainer, poppet, seat, spring, and associated seals for a complete valve overhaul.
