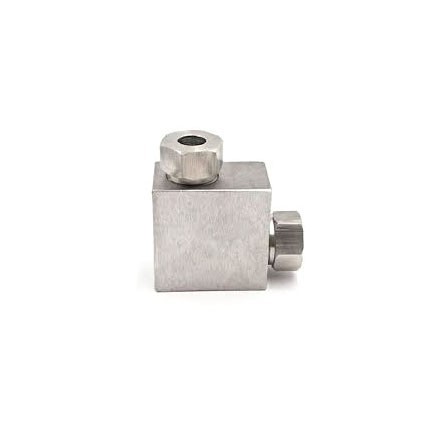

Product Name: HP Elbow / High-Pressure 90° Elbow Fitting (Part No. 10078780)

Description:
This component is a high-pressure (HP) 90-degree elbow fitting, designed for routing ultra-high-pressure water lines in waterjet cutting systems. It is a precision-machined stainless steel fitting that changes the direction of high-pressure water flow by 90 degrees, allowing for efficient plumbing in tight spaces around the cutting head or pump manifold.

The elbow features industry-standard 60-degree cone sealing surfaces and high-pressure threads for a reliable metal-to-metal seal. It is typically rated for continuous operation at 60,000 PSI (approximately 4,137 bar) and is compatible with standard HP tubing, gland nuts, and coned inserts.

Applications:

• Changing the direction of high-pressure water flow by 90 degrees between the on/off valve and cutting head assembly

• Routing HP tubing in space-constrained areas of the waterjet machine (Z-axis, gantry, or pump cabinet)

• Connecting HP components such as intensifier outlets, manifolds, and cutting head inlets

• Reducing vibration-related wear by providing a compact, rigid connection point

• Compatible with 60K and higher pressure waterjet systems

Features:

• 90-Degree Compact Design: Allows efficient routing in tight spaces, reducing stress on connections and minimizing vibration-related wear

• High-Strength Stainless Steel Construction: Corrosion-resistant material withstands extreme pressure cycling and harsh waterjet environments

• Precision Cone Sealing Surfaces: Machined 60-degree cone seats ensure reliable metal-to-metal sealing with compatible HP fittings

• Standard High-Pressure Threads: Compatible with industry-standard gland nuts, coned inserts, and HP tubing

• Leak-Free Operation: Engineered to maintain seal integrity under pressure fluctuations and mechanical vibration

Maintenance:

Failure Diagnosis:

• External Water Leakage: Visible water weeping from the elbow connection indicates a failed cone seal, damaged threads, or improper torque

• Thread Damage: Stripped, galled, or cross-threaded threads prevent proper sealing and require immediate replacement

• Cone Seat Damage: Nicks, scratches, pitting, or deformation on the 60-degree cone sealing surface will cause high-pressure leaks

• Surface Wear: Inspect the elbow body for cracks, corrosion, or wear marks where it may contact machine components

• Vibration Fatigue: Repeated loosening or signs of fretting may indicate inadequate support or improper torque

Inspection and Replacement Guidelines:

• Inspect Before Reinstallation: This adapter should always be inspected for surface wear or thread damage before reinstallation to ensure high-pressure integrity

• Full Depressurization (Critical): Always fully depressurize the waterjet system (high-pressure water, hydraulic system, and air supply) and follow lockout/tagout procedures before installing or removing the elbow

• Thread Cleaning: Clean all threads thoroughly before assembly; remove debris, old sealant, and corrosion

• Thread Lubrication: Apply a thin, even layer of high-pressure anti-seize compound (e.g., "Silver Grade" or "Blue Goop") to male threads only. Do not apply lubricant to cone sealing surfaces

• Cone Seat Check: Inspect the 60-degree cone seat for nicks, scratches, or deformation. Replace the elbow if any damage is found

• Proper Seating: Ensure HP tubing and coned inserts are fully seated in the fitting ports before tightening

• Torque Compliance: Use a calibrated torque wrench to tighten the gland nuts to the specific torque value listed in the equipment service manual. Use a second wrench to counter-hold the elbow body to prevent twisting stress

• Replacement Criteria: Replace the elbow immediately if threads are damaged, cone seats are pitted or deformed, the body shows cracks, or if leakage persists after proper installation

• Use Compatible Components: Use only compatible cutting heads and valves to maintain correct pressure ratings and sealing performance

• Two-Wrench Method: Always use two wrenches when tightening or loosening—one to hold the elbow body and one to turn the gland nut—to avoid twisting stress on the assembly

Cross-Reference Information:

• OEM: Part No. 10078780

• Equivalent to: 90° Adapter for On/Off Valve to Cutting Head

• Rated for: 60K-87K waterjet systems
