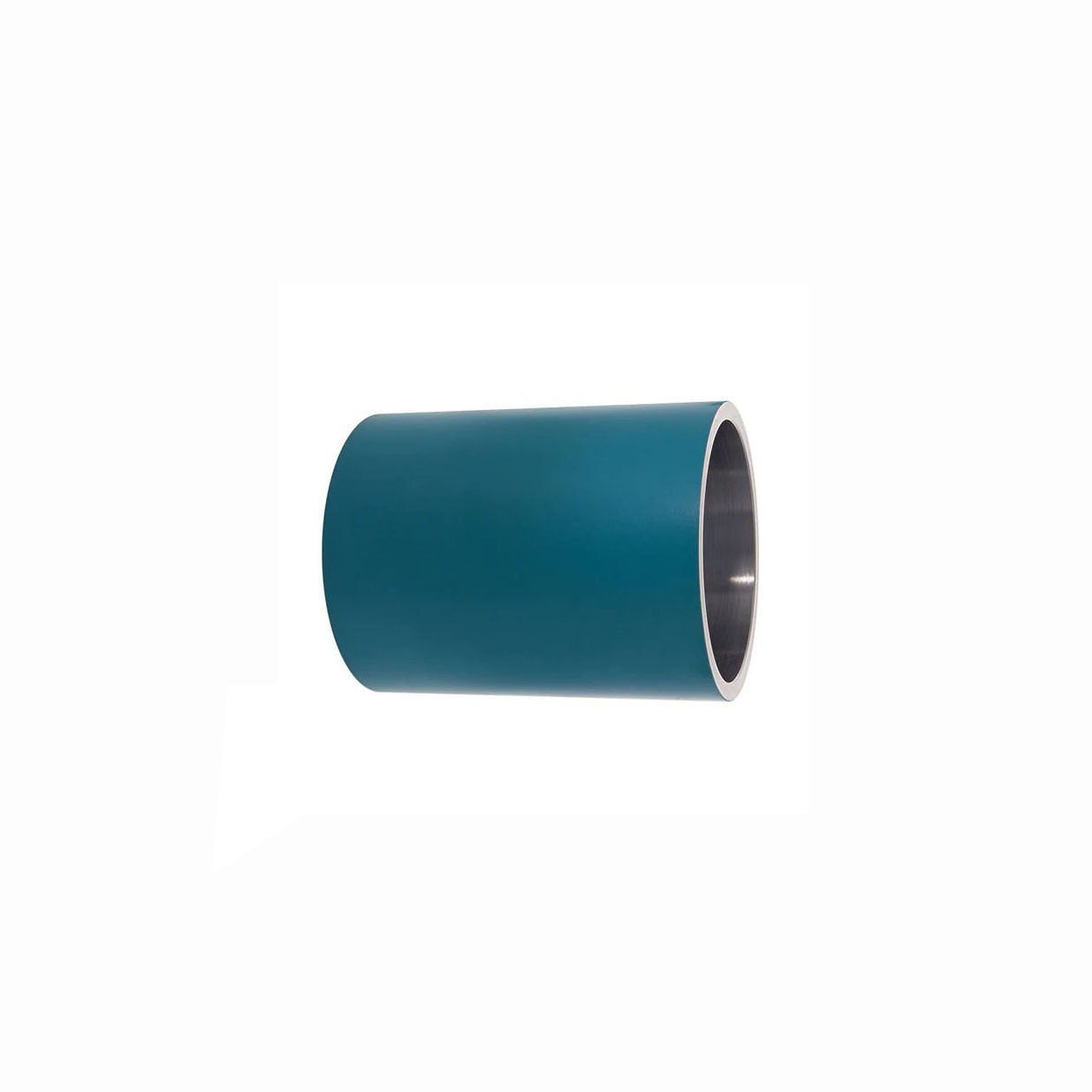

011290-1 87K intensifier low-pressure cylinder

Short Description:

011290-1 87K intensifier low-pressure cylinder is used for FLOW 90K pump.

We offer the complete range of FLOW-certified parts – from high-pressure seals to precision cutting heads.
Everything is guaranteed for perfect compatibility with your equipment and consistent performance.
Maximum system lifespan, minimal risk of downtime – that's the long-term added value we offer.

INQUIRY

Details

004380-1 check valve retaining screw

020071-1 Check Valve Assembly

More precise: Preserve the material's inherent qualities and manufacture complex geometries.

More powerful: Effortlessly handles hard and delicate materials.

More reliable: Original equipment and parts ensure a continuous production flow.

More economical: Less waste, higher efficiency, and optimized total costs.

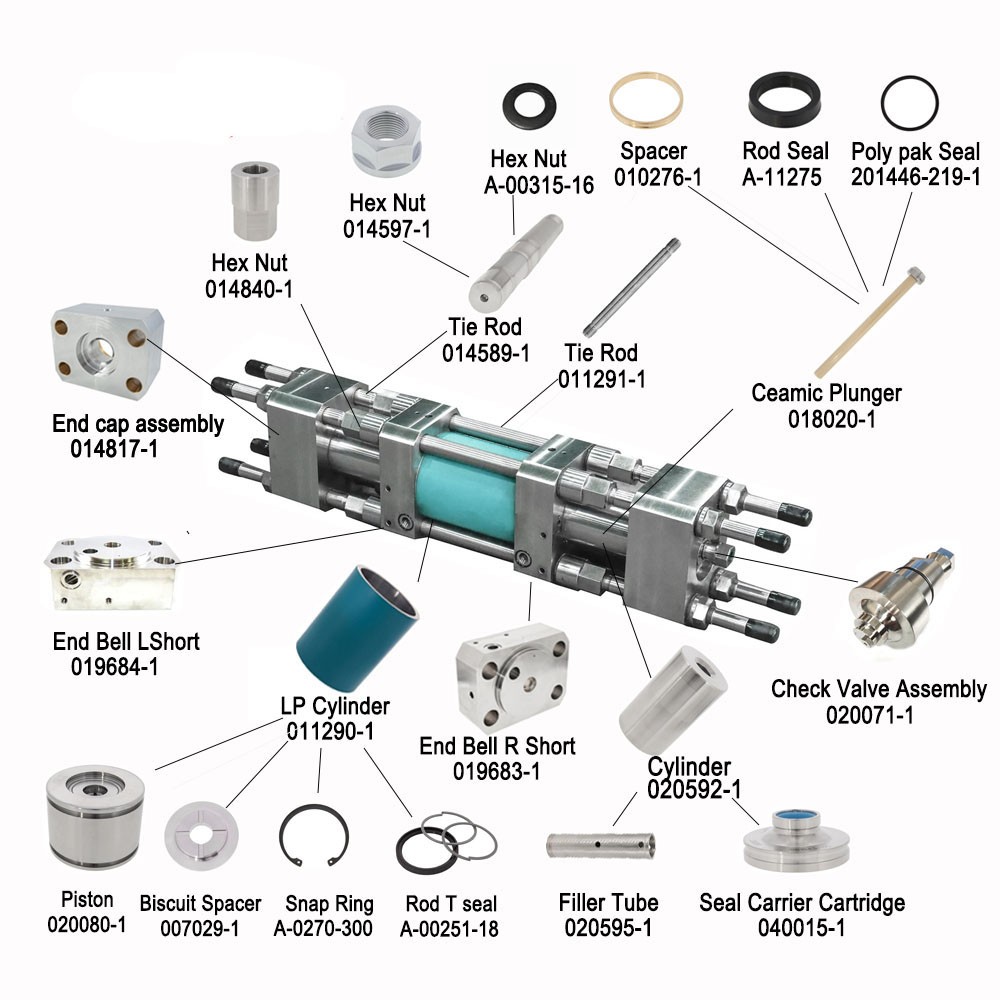

Item	Part Number	Description	Item	Part Number	Description
1	A-11275	Rod Seal	15	020592-1	High-Pressure Cylinder
2	010276-1	Spacer	16	020595-1	Filler Tube
3	A-0264-112	Snap Ring	17	014589-1	High-Pressure Tie Rod
4	201446-219-1	Poly-Pak Seal	18	014817-1	End Cap
5	011304-1	Piston Biscuit	19	020077	Check Valve Body
6	A-00251-18	Rod T-Seal	20	014389-1	Adapter
7	007029-1	Biscuit Spacer	21	A1606	Compression Spring
8	A-0270-300	Snap Ring	22	014388-1	Seat
9	010253-1	Plunger Assembly	23	A-0275-131	O-ring
10	011290-1	Low-Pressure Cylinder	24	010564-1	Support Assembly
11	A-0275-248	O-Ring	25	004380-1	Retainer Screw
12	A-00437-248	Backup Ring	26	A-00315-16	Washer
13	014623-1	End Bell	27	Nut 014597-1	Tie Rod
14	040015-1	Seal Cartridge	28	014597-1	Tie Rod Nut
