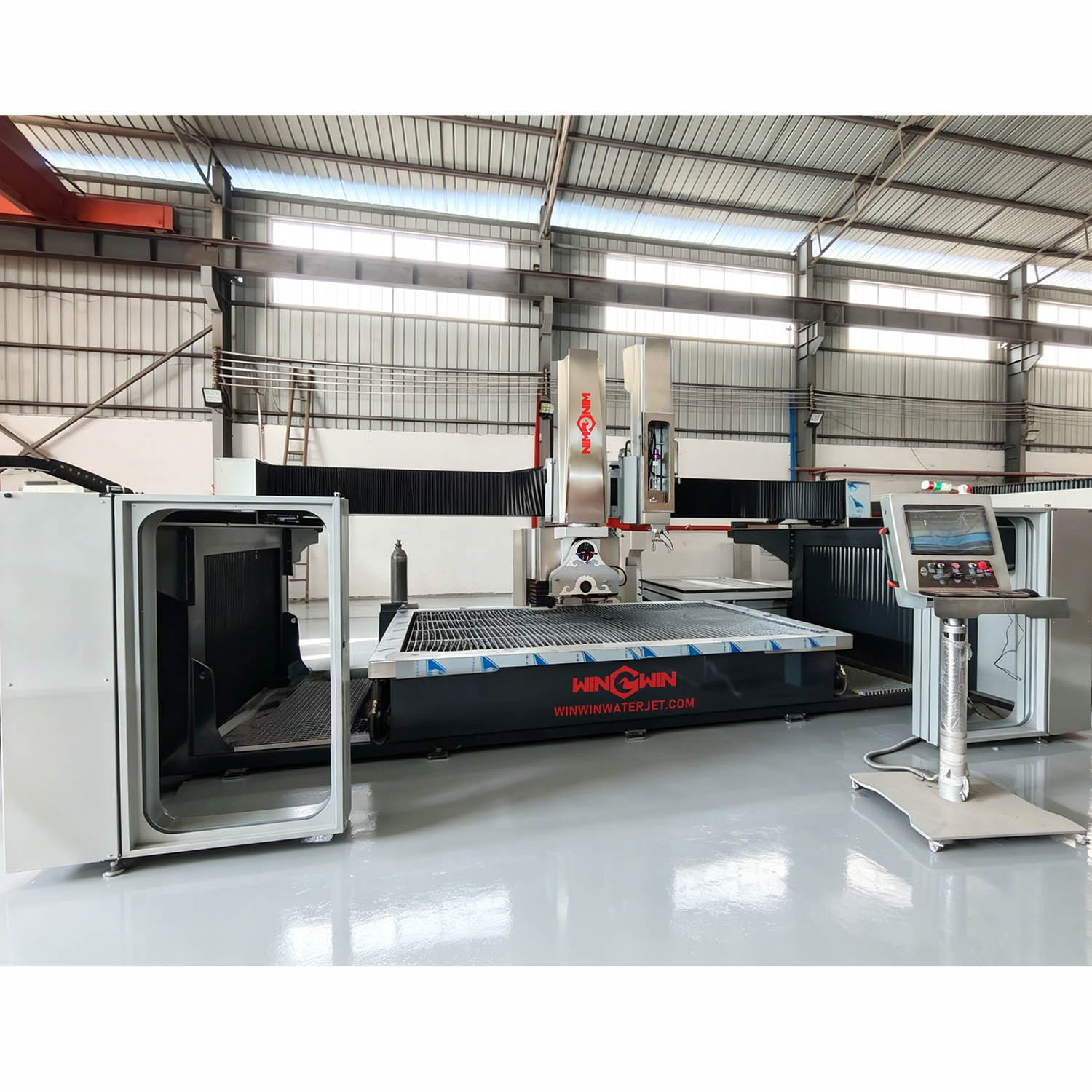

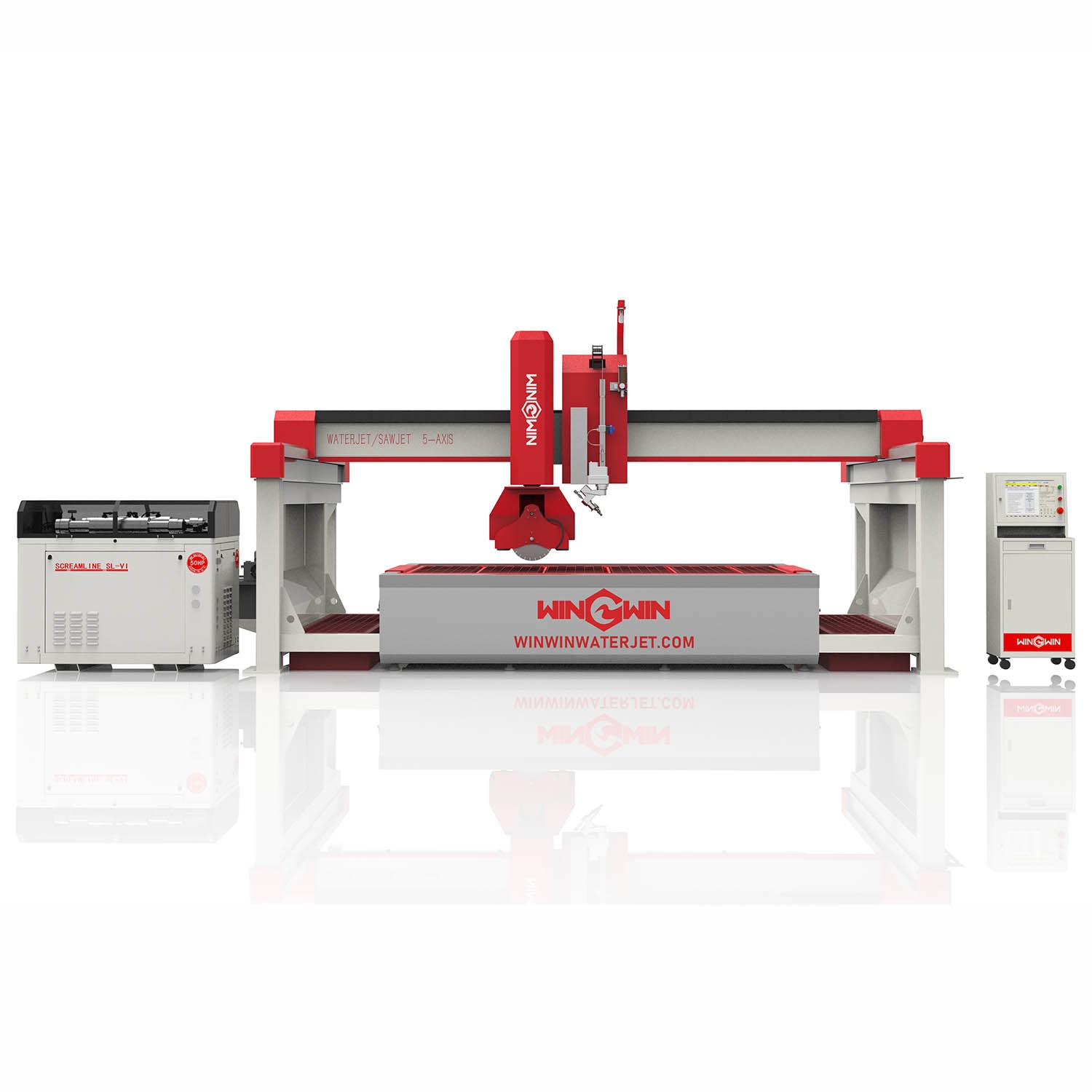

CNC Sawjet Machine

Short Description:

Dual Cutting Technology – Integrates a high-speed diamond saw and an ultra-high-pressure waterjet for both straight-line and intricate shape cutting.

CNC Precision Control – Computer-controlled axes ensure accurate, repeatable cuts with tight tolerances based on programmed designs.

Versatile Material Processing – Capable of cutting a wide range of materials, including stone, glass, metal, and composites.

Bevel and Miter Cutting Ability – Allows angle cuts and beveling (e.g., 45° edges)

INQUIRY

Details

Dual-Process Integration
Combines high-speed abrasive waterjet cutting (for intricate shapes and cold cutting) with a high-torque diamond saw blade (for rapid straight-line cutting), maximizing productivity for stone, ceramic, and metal slabs.

Reduced Material Waste
The narrow kerf of both processes (saw: ~3mm, waterjet: ~1mm) minimizes material loss, especially valuable for natural stone and quartz slabs.

Cold Cutting Zone
Waterjet cutting generates no heat-affected zone (HAZ), preventing micro-cracking, edge hardening, or material distortion—critical for brittle materials like glass or composite stone.

High-Precision Abrasive Delivery
Features a precision garnet feeder system that ensures consistent abrasive flow, resulting in smooth, burr-free edges that often require no secondary finishing.

Automatic Tool Change & Calibration
CNC-controlled automatic switching between saw blade and waterjet head, including integrated height sensors and tool wear compensation.

Bevelling & Complex Contours
A programmable 5-axis rotary head (on premium models) allows cutting of bevels, miters, and 3D shapes without repositioning the slab.

Dust-Free & Lower Operating Costs
Waterjet operation eliminates airborne dust. Compared to pure waterjet-only machines, the saw function reduces abrasive consumption by up to 70% on linear cuts.

Parameter	Standard Value
Table Size (L x W)	3200mm x 2000mm (126" x 78.7")
Cutting Travel (X / Y / Z)	3200mm / 2000mm / 250mm (126" / 78.7" / 9.8")
Max. Saw Blade Diameter	400mm - 500mm (16" - 20")
Max. Waterjet Pressure	380MPa - 420MPa (55,000 - 60,000 PSI)
Saw Motor Power	15kW - 22kW (20HP - 30HP)
Waterjet Orifice Diameter	0.3mm - 0.4mm (0.012" - 0.016")
Abrasive Type	Garnet (80 mesh)
Max. Workpiece Thickness (Saw)	150mm - 200mm (6" - 8")
Max. Workpiece Thickness (Waterjet)	Up to 150mm (6") depending on material
Positioning Accuracy	±0.1mm (±0.004")
Cutting Speed (Saw)	0 - 5000 mm/min (0 - 200 IPM)
Cutting Speed (Waterjet)	0 - 6000 mm/min (0 - 236 IPM)
Control System	CNC (FANUC / Siemens / Syntec / OSAI)
Rotary Axis (Optional)	0 - 360° with 0.001° resolution
Power Requirement	380V / 3PH / 50-60Hz / 30-40 kVA
Air Requirement	6 - 8 bar (90 - 120 PSI)
