Product ID: 20427804 – Intensifier Support Block / Support Bracket

Description:

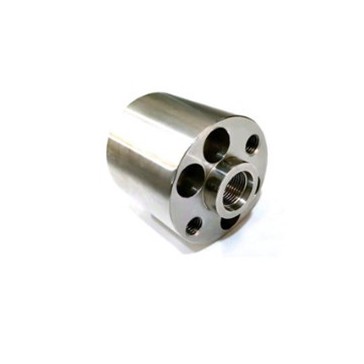

This component is an intensifier support block or support bracket designed for high-pressure waterjet cutting systems. It serves as a structural mounting component that secures and aligns the intensifier pump assembly to the machine frame. The support block ensures precise positioning of the intensifier relative to the hydraulic drive system, maintaining proper alignment of the cylinder assemblies during operation. High-pressure tubing runs from the intensifier to the cutting station must be installed with appropriate mountings, support brackets, and hardware .

Applications:

• Used to mount and secure the intensifier pump assembly to the waterjet cutting machine chassis

• Provides structural support for high-pressure tubing runs between the intensifier and cutting head

• Maintains precise alignment between the hydraulic cylinder and high-pressure cylinder assemblies

• Suitable for ultra-high pressure waterjet systems operating at 40,000–60,000 PSI (approximately 2,800–4,137 bar)

Features:

• Structural Rigidity: Constructed from heavy-gauge steel or high-strength alloy to dampen vibration and withstand high reaction forces generated during pressure cycling

• Precision Machining: Critical mounting surfaces are CNC-machined to exact tolerances for perfect coaxial alignment of cylinders and plungers

• Vibration Dampening: Engineered to absorb mechanical vibration from the intensifier’s reciprocating motion, protecting connected components

• Corrosion Resistance: Manufactured from materials treated to resist rust and degradation from continuous water exposure

• Heavy-Duty Construction: Designed to support the substantial weight of intensifier components, including the high-pressure cylinder (approximately 13.7 kg), hydraulic cylinder (approximately 32.9 kg), and associated assemblies

Maintenance:

• Regular Inspection: Visually inspect support brackets and mounting bolts for signs of loosening, cracking, or fatigue. Compromised supports can lead to catastrophic misalignment

• Hardware Check: Verify that all mounting hardware (bolts, nuts, lock washers) remains torqued to manufacturer specifications to prevent movement during operation

• Alignment Verification: During major pump overhauls or seal replacements, verify intensifier alignment relative to the hydraulic drive to prevent premature wear on internal parts

• Crack Detection: Examine support components for stress cracks, particularly at weld points and bolt hole locations, using dye penetrant if necessary

• Full Depressurization: Before any maintenance involving the intensifier support, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures

• Support Weight During Service: The high-pressure cylinder is heavy; support its weight during removal and installation to prevent damage to the plunger or injury to personnel

• Replacement Criteria: Replace the support bracket if cracks, deformation, severe corrosion, or thread damage is detected. Do not attempt to repair a cracked support structure
