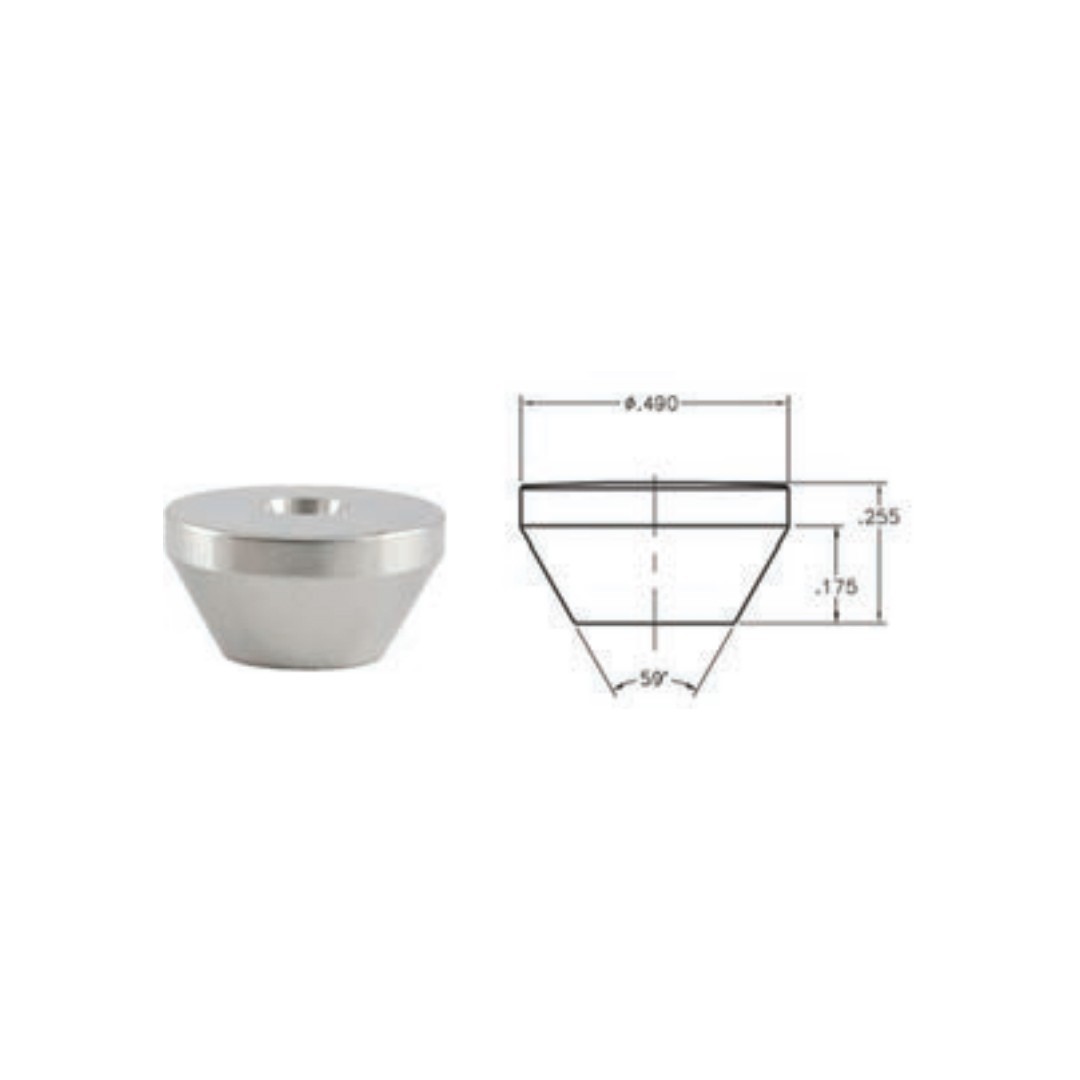

Product Name: P-III Nozzle Assembly / Ruby or Diamond Orifice Assembly (Part No. 201501-xx)

Description:
This component is a P-III nozzle assembly, a precision-engineered mounting unit designed to house the ruby or diamond orifice (also known as the jewel nozzle or water nozzle) in abrasive waterjet cutting systems . This assembly serves as the upper section of the cutting head, positioned directly above the mixing chamber. Its primary function is to securely hold and perfectly align the ultra-hard orifice with the mixing tube below. The assembly channels the incoming ultra-high-pressure water (up to 60,000-90,000 PSI) through the precisely laser-drilled hole in the ruby or diamond disc to form a coherent, high-velocity waterjet before it enters the mixing chamber .

The -xx suffix in the part number indicates that the assembly can be supplied with various orifice diameters (e.g., .010, .011, .013, .014 inches), allowing operators to choose the optimal jet size for their specific cutting application and pump capability .

Applications:

• Mounts the ruby or diamond orifice in the cutting head assembly of abrasive waterjet systems

• Forms the initial coherent waterjet before abrasive mixing

• Compatible with P-III nozzle bodies and other standard 3/4-16 thread cutting heads

• Used in both 60,000 PSI and 90,000 PSI (PRO-III) waterjet systems

Features:

• P-III Standard Design: Industry-standard mounting interface for use with P-III nozzle bodies

• Ruby or Diamond Orifice: Capable of housing either a ruby or a diamond orifice, allowing the user to select the appropriate jewel for the application

• Precision Alignment: Engineered to maintain perfect coaxial alignment between the orifice and the mixing tube, which is critical for jet coherence and focusing tube life

• Thread Compatibility: Features standard 3/4-16 threads for universal fitment with major manufacturers' on/off valves and cutting heads

• Multiple Sizes: Available in various orifice diameters (denoted by -xx) to match pump flow rates and cutting requirements

Maintenance:

When to Replace (Failure Diagnosis):

• Split or Divergent Waterjet: If the low-pressure water stream exiting the mixing tube is scattered, split, or not straight, the orifice is likely worn or damaged and must be replaced

• Reduced Cutting Performance: A noticeable drop in cutting speed or edge quality may indicate a worn orifice

• Visible Damage: During disassembly, inspect the jewel surface for cracks, chips, or erosion of the orifice hole

• Pressure Fluctuations: An erratic waterjet can cause pressure instability in the cutting head

Installation and Replacement Guidelines:

• Inspect the Seal: Before installing a new orifice assembly, ensure the sealing O-ring is in good condition to prevent high-pressure water leakage

• Clean Assembly: Thoroughly clean the nozzle body and mixing chamber to remove any debris or abrasive particles that could damage the new orifice

• Torque Compliance: Tighten the retaining cap or nut to the specific torque value listed in the equipment service manual. Over-tightening can crack the jewel; under-tightening will cause leaks

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before replacing the orifice assembly

• Handle with Care: Ruby and diamond orifices are hard but brittle; avoid impact or scratching the precision surface. Use the correct tools for removal and installation

• Water Quality Impact: Poor water quality with contaminants accelerates orifice wear. Maintain proper water filtration to maximize orifice life

Optimal Sizing:

• Orifice Diameter Selection: The appropriate orifice size (e.g., .010, .011, .013, .014) depends on the pump's horsepower and flow rate. For example, a 60 HP PRO-III pump typically uses an orifice no larger than .011 inches

• Mixing Tube Ratio: For maximum focusing tube life and cutting efficiency, maintain an orifice-to-mixing tube diameter ratio of approximately 1:3
