Product Name: Advantage EP 94k Pump Maintenance Kit (Part No. 392022-1)

Description:
This component is a comprehensive pump maintenance kit specifically engineered for 94,000 PSI (approximately 6,480 bar) extreme pressure (EP) waterjet intensifier pumps. It is designed for compatibility with H2O Jet systems and serves as an OEM-equivalent maintenance solution for high-performance waterjet cutting equipment. The kit contains all the critical wear components necessary to perform a complete overhaul of the intensifier pump, restoring factory-level performance and ensuring reliable ultra-high pressure operation.

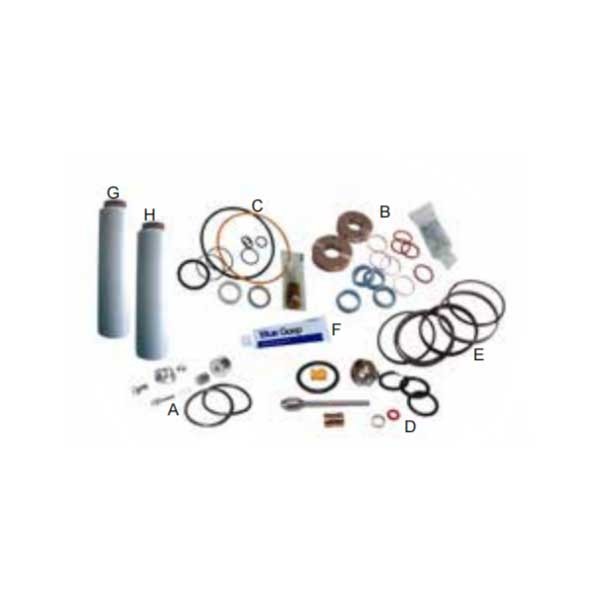

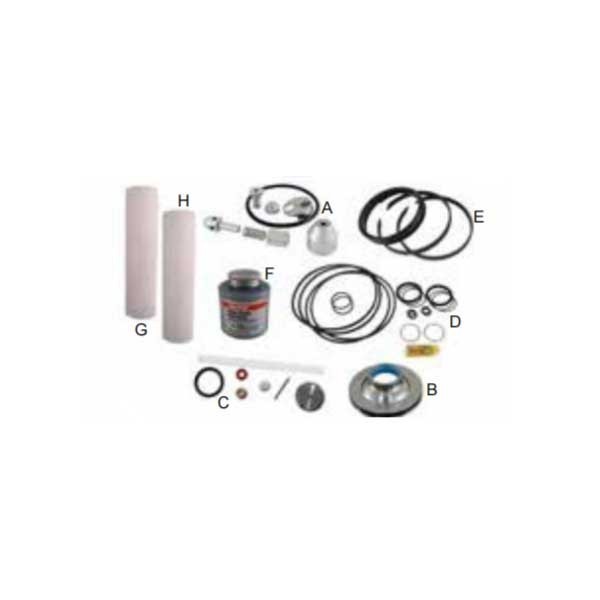

According to manufacturer documentation and industry practice, a pump maintenance kit of this type typically includes high-pressure seal cartridges, check valve repair components, O-rings, backup rings, dynamic seals, static seals, and other essential wear parts . The 94k pressure rating indicates this kit is designed for the highest pressure class in waterjet cutting, offering superior cutting speed and precision for demanding industrial applications .

This kit is compatible with H2O Jet intensifiers and can be used with other major waterjet brands including Flow, KMT, OMAX, WSI, and BFT systems . The "Advantage EP" designation suggests this is an enhanced performance kit featuring upgraded component designs for smoother operation and extended service life compared to standard maintenance kits .

Applications:

• Major overhaul and complete maintenance of 94,000 PSI extreme pressure waterjet intensifier pumps

• Restoration of pump performance when symptoms such as pressure drop, external leakage, or erratic cycling occur

• Scheduled preventive maintenance for high-production waterjet cutting systems

• Suitable for H2O Jet, Flow, KMT, OMAX, WSI, and BFT waterjet intensifier systems

• Ideal for heavy-duty cutting operations requiring maximum cutting speed and precision

Features:

• 94,000 PSI Pressure Rating: Engineered for the highest pressure class in waterjet cutting, delivering maximum cutting performance

• Complete Overhaul Solution: Contains all critical seals, O-rings, check valve components, and wear parts for a full pump rebuild

• Advantage EP Design: Upgraded component specifications for enhanced performance, smoother operation, and reduced downstream shock

• Multi-Brand Compatibility: Fully compatible with H2O Jet, Flow, KMT, OMAX, WSI, and BFT waterjet systems

• OEM Quality: Precision-manufactured to meet or exceed original equipment specifications

• Extreme Wear Resistance: Components manufactured from high-grade materials including hardened stainless steel, tungsten carbide, and high-performance elastomers

Maintenance:

When to Replace (Failure Diagnosis):

• Significant Pressure Drop: A substantial reduction in cutting pressure from normal operating levels indicates internal component wear requiring kit replacement

• External Water Leakage: Visible water weeping from the pump area, weep holes, or around high-pressure connections signals seal failure

• Hydraulic Oil Contamination: Milky or discolored hydraulic oil indicates water intrusion past dynamic seals

• Erratic Intensifier Cycling: Inconsistent or irregular pump cycling suggests check valve or seal wear

• Scheduled Major Maintenance: Most manufacturers recommend major overhaul at specific hour intervals, typically after 1,500-5,000 operating hours

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures to prevent severe injury

• Complete Kit Replacement: When performing a major overhaul, replace all components in the kit simultaneously; do not mix new components with old ones

• Clean Room Conditions: Perform the rebuild in a designated clean area to prevent contamination of new seals with abrasive particles

• Proper Lubrication: Apply manufacturer-recommended high-pressure grease and anti-seize compound to seals, O-rings, and threads during installation

• Cylinder Bore Inspection: Before installing new seals, thoroughly inspect the high-pressure cylinder bore for scoring, pitting, or out-of-round conditions. A damaged cylinder will rapidly destroy new seals

• Plunger Surface Inspection: Inspect the reciprocating plunger surface for scoring, scratching, or diameter reduction; any visible damage warrants plunger replacement before installing new seals

• Use Proper Installation Tools: Use manufacturer-specified seal removal and installation tools to avoid scratching the cylinder bore or damaging new seals during the procedure

• Torque Compliance: When reassembling the pump, tighten all retaining components to the specific torque values listed in the equipment service manual

• Post-Installation Testing: After reassembly, operate the pump at low pressure first (without an orifice) to flush the system, then at high pressure with orifice installed to check for leaks before returning to full cutting operations

• Cross-Reference Information: This kit is compatible with H2O Jet #392022-1 and may correspond to Flow #014885-1 with appropriate spring retainers
