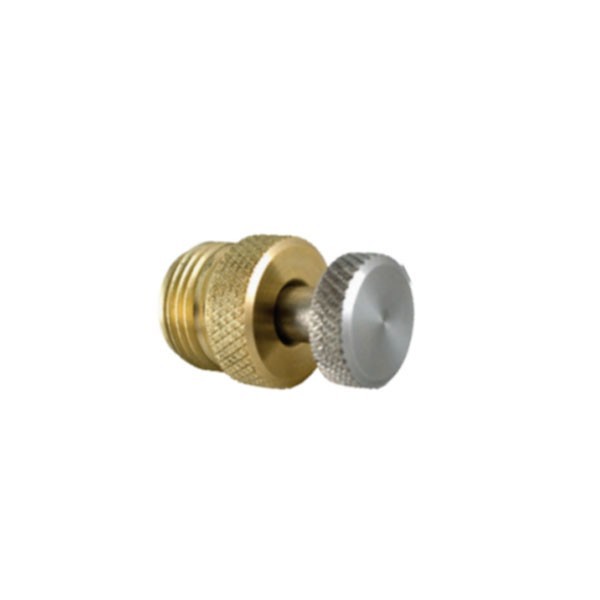

Product Name: Mini Valve Seal Installation Tool (Part No. 392501-1)

Description:
The Mini Valve Seal Installation Tool 392501-1 is a specialized precision tool designed for the maintenance of compact waterjet on/off valves (water switches) and high-pressure check valves. Its primary function is to safely insert delicate polyurethane or rubber dynamic seals into the valve body without causing rolling, pinching, or cutting. Typically constructed from hardened steel or durable aluminum with a smooth, polished finish, this tool ensures that new seals are seated perfectly and protected from sharp threads during assembly.

Applications:

• Installing new dynamic seals or O-rings into compact "Mini" series waterjet valve bodies.

• Servicing waterjet pneumatic on/off valves during routine preventive maintenance.

• Repairing high-pressure check valves where seal installation is difficult to perform by hand.

• Compatible with 60K/94K waterjet systems requiring precise seal seating.

Features:

• Precision Machined: Manufactured to the exact internal diameter of the targeted valve body for a perfect fit.

• Protective Design: Often features a stepped mandrel or sleeve configuration that shields the seal from internal threads or sharp edges.

• Durable Construction: Made of heat-treated steel or robust aluminum to withstand repeated industrial use.

• Ergonomic Handling: Typically includes a knurled handle or a flat gripping surface for smooth, controlled insertion force.

• Application-Specific: Engineered specifically for the "Mini" valve platform common in specific waterjet cutting systems.

Maintenance:

• Clean Immediately: Wipe off all grease, metal debris, and water after use to prevent corrosion or particle buildup.

• Inspect for Burrs: Regularly check the leading edge of the tool for nicks or raised burrs that could damage a new seal.

• Lubricate: Apply a thin film of oil or high-pressure grease to the tool surface before use to allow the seal to slide smoothly into place.

• Storage: Store in a clean, dry location, ideally in a foam-lined tool case, to protect the precision surfaces from impact.
