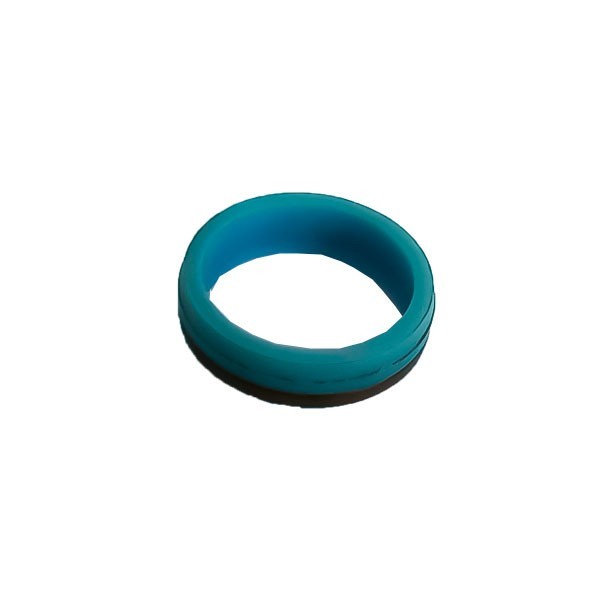

Product Name: HP Seal Kit / High-Pressure Seal Kit, 15 GPM, 60k (Part No. 100053-3)

Description:
This component is a high-pressure (HP) seal kit, specifically designed for 60,000 PSI (approximately 4,137 bar), 15 GPM waterjet intensifier pumps. It is a comprehensive consumable parts kit that contains all the necessary sealing components required to rebuild the high-pressure seal stack on both sides of the intensifier pump.

The HP seal kit is a critical maintenance component for restoring the primary sealing integrity between the reciprocating ceramic plunger and the high-pressure cylinder bore. When dynamic seals wear, high-pressure water bypasses the plunger, leading to pressure loss, reduced cutting performance, and water leakage from the pump weep holes.

Modern HP seal kits feature technologically advanced seal buttresses that are precision-machined to tight tolerances on the inner diameter (ID). This tight ID fit keeps the HP seal from extruding between the plunger and buttress under ultra-high pressure, significantly extending seal life. Additionally, the outside edges of the buttresses are uniquely grooved for easy gripping and removal during maintenance.

This kit is designed for intensifier pumps that use a total of 4 high-pressure seal sets and 2 bronze backups. For optimal performance and reduced downtime, it is recommended to replace the HP seals and bronze backup gaskets simultaneously as a complete set.

Applications:

• Rebuilds the high-pressure seal stack in 60,000 PSI, 15 GPM waterjet intensifier pumps

• Restores sealing integrity between the reciprocating ceramic plunger and cylinder bore

• Used during scheduled Major Maintenance or when seal failure symptoms appear

• Compatible with standard waterjet intensifier systems

Features:

• Complete Seal Set: Includes all necessary components for rebuilding both sides of the intensifier

• Precision-Machined Buttresses: Tight ID tolerance prevents seal extrusion between plunger and buttress

• Easy Removal Design: Uniquely grooved outer edges for simple gripping and removal during service

• 60,000 PSI Rating: Engineered for continuous ultra-high pressure operation

• 15 GPM Flow Rating: Optimized for medium-flow waterjet intensifier systems

• Recommended Set Replacement: Best practice to replace HP seals and bronze backups together for maximum service life

Maintenance:

Failure Diagnosis:

• Water in Drain Container: Water flowing into the drain container indicates HP seal failure

• Water from Leak Detection Block: Visible water weeping from the leak detection weep holes is a primary seal failure indicator

• Pressure Drop: Inability to maintain rated cutting pressure suggests seal wear. A drop of more than 2,000 PSI under load indicates intensifier seal degradation

• Plunger Surface Inspection: Rotate the plunger 360 degrees while viewing light reflection on the surface to detect dullness, streaks, pits, or other defects

Replacement Guidelines:

• Set Replacement (Recommended): The intensifier pump uses a total of 4 sets of high-pressure seals and two bronze backups. Operators should replace them at the same time to reduce the number of repairs and equipment shutdowns. Under normal circumstances, service life is 3-5 months

• Special Tools Required: HP seals should always be installed using special intensifier tools to prevent damage

• Clean Work Environment: Perform seal replacement in a designated clean area. Hands must be free of debris, as any contaminants that enter the pump can damage it during use

• Surface Preparation: If seal debris is present on the plunger, polish with 600-grit wet/dry sandpaper using a radial (circular) motion only. Do not polish longitudinally

• Lubrication: Lightly coat new seal components with manufacturer-recommended high-pressure grease before installation

• Proactive Replacement: On 60K psi intensifier pumps, replace seals at the 200-hour mark during scheduled maintenance, not when they fail. A proactive seal change prevents expensive collateral damage

• Full Depressurization: Always fully depressurize the waterjet system, lock out the main power, and follow lockout/tagout procedures before servicing

Component Life:

• Normal Service Life: Under normal operating conditions, HP seal service life is typically 3-5 months

• Factors Affecting Life: Plunger surface condition, water quality, filtration effectiveness, and operating pressure all impact seal longevity

• Water Quality Impact: Poor water quality dramatically reduces seal lifespan. Filter to <1 micron particle size for optimal seal life
