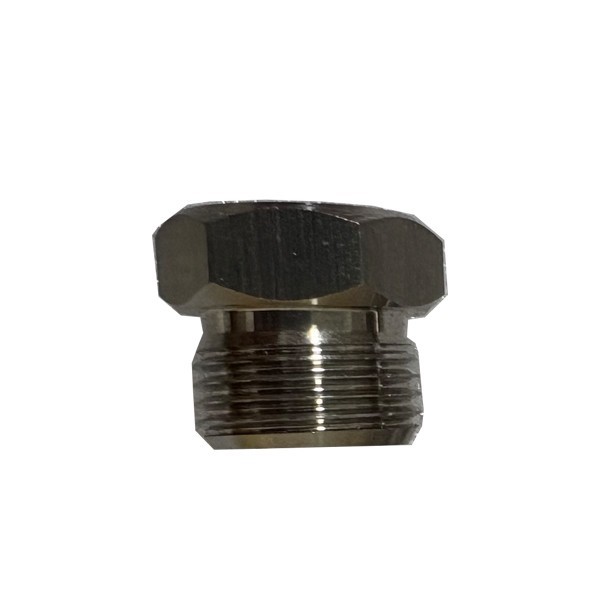

Product Name: Gland Nut, Adjustable P-III Nozzle Body (Part No. 100027-3)

Description:
This component is a gland nut, specifically designed for the Adjustable P-III Nozzle Body in high-pressure waterjet cutting systems. It is a precision-machined threaded fastener, typically constructed from high-strength stainless steel, that serves as the primary compression mechanism for the seal stack within the cutting head assembly.

The gland nut threads onto the adjustable nozzle body and, when tightened, compresses the high-pressure seals, mixing chamber components, and abrasive inlet assembly into a leak-tight configuration. Its adjustable design allows the operator to fine-tune the compression force to compensate for normal seal wear over time, extending the service life of the cutting head without requiring immediate part replacement. Proper adjustment ensures consistent abrasive suction (Venturi effect) and prevents high-pressure water leakage.

Applications:

• Provides adjustable compression for seals and internal components in P-III series waterjet cutting heads

• Used on both 3-axis flat cutting systems and 5-axis cutting head configurations

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with standard P-III nozzle body assemblies and fine abrasive cutting applications

Features:

• High-Strength Stainless Steel Construction: Provides corrosion resistance and structural integrity under extreme pressure cycling

• Adjustable Compression Design: Allows fine-tuning of seal compression to compensate for normal wear

• Precision-Machined Threads: Ensures smooth engagement with the nozzle body and consistent torque application

• Wrench Flats: Machined flats provide secure gripping surface for torque application with standard wrenches

• 60,000 PSI Rating: Engineered for continuous ultra-high pressure operation

Maintenance:

Failure Diagnosis:

• External Water Leakage: Water weeping from the cutting head body indicates the gland nut may require re-torquing or seal replacement

• Loss of Cutting Performance: Decreased cutting efficiency may indicate improper gland nut compression affecting the Venturi effect

• Visible Damage: Inspect wrench flats for rounding and threads for damage, galling, or corrosion

Inspection and Replacement Guidelines:

• Re-torque Procedure: If the cutting head leaks externally, check and re-torque the gland nut to the specific torque value listed in the equipment service manual

• Thread Care: Before reassembly, clean threads thoroughly and apply a thin layer of high-pressure thread lubricant to prevent galling

• Replacement Criteria: Replace the gland nut immediately if wrench flats are rounded, threads are damaged or galled, cracks are visible, or the nut shows signs of deformation

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before tightening or loosening the gland nut

• Use Proper Tools: Use correctly sized wrenches on the wrench flats; do not use pipe wrenches or pliers that could damage the nut surfaces
