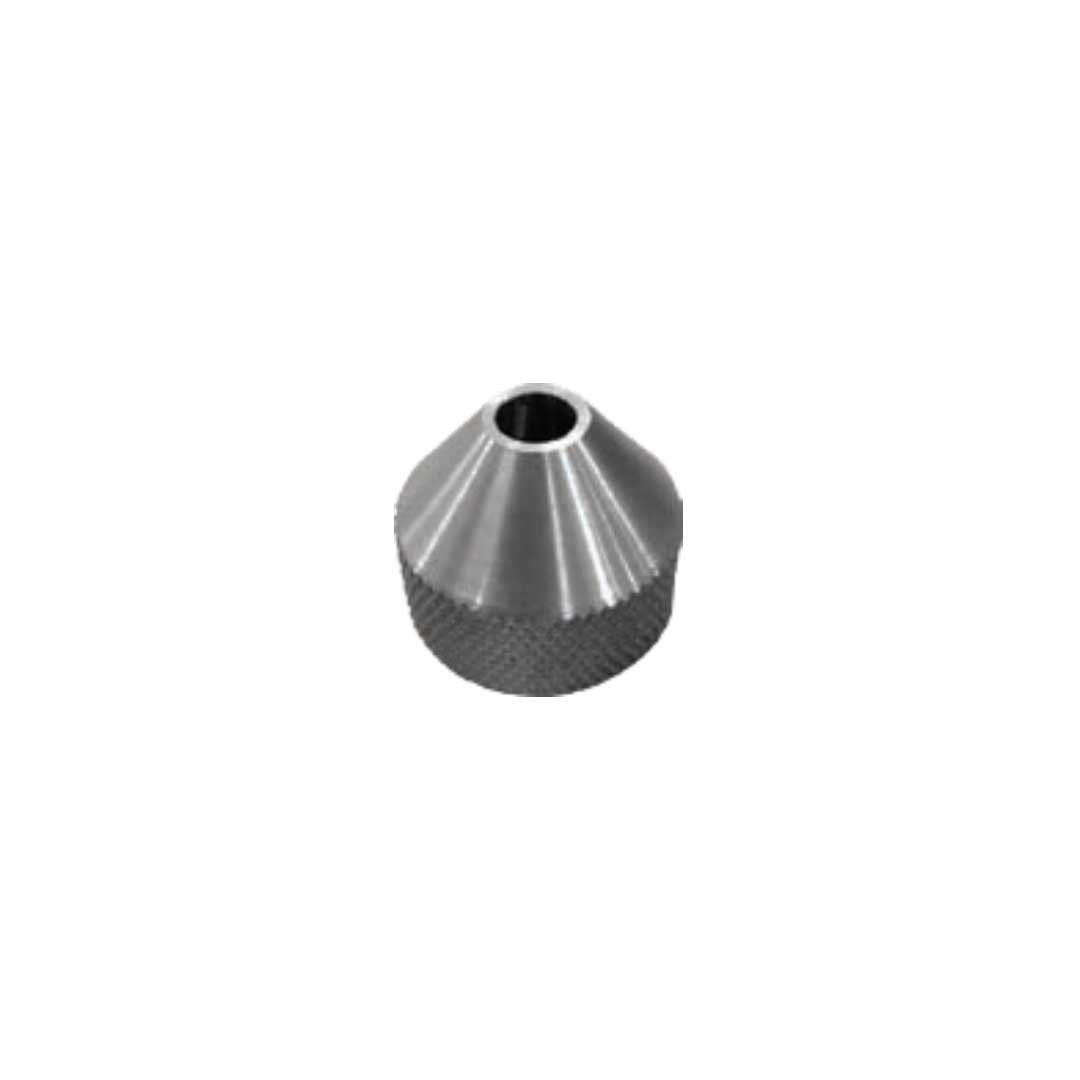

Product Name: 94k-IDE™ Clamp Nut / High-Pressure Clamp Nut (Part No. 190172-1)

Description:
This component is a high-strength clamp nut engineered for the IDE (Integrated Diamond Eductor) series of cutting heads in 94,000 PSI (6,500 bar) ultra-high pressure waterjet systems. It serves as the primary mechanical fastener securing the high-pressure tube to the cutting head body. Unlike standard hex nuts, this "clamp nut" design is precision-machined to provide uniform clamping force, protect the delicate cone sealing surfaces, and withstand the extreme cyclic pressure spikes of 94k operation.

Applications:

• Securing the high-pressure water delivery tube to the inlet of the IDE cutting head.

• Retaining the internal mixing tube or IDE nozzle assembly within the cutting head housing.

• Used exclusively in 94,000 PSI rated waterjet systems.

Features:

• Ultra-High Pressure Rating: Specifically rated for 94,000 PSI (approx. 6,500 bar) service.

• Corrosion Resistant: Manufactured from hardened stainless steel for durability.

• Anti-Galling Design: Thread geometry is optimized to prevent seizure under high torque.

• Critical Safety Component: Essential for maintaining a leak-free seal in high-cycle industrial environments.

Maintenance:

• Torque Compliance (Critical): Must be tightened to the specific torque value in the service manual. Over-tightening can crack ceramic/diamond components; under-tightening causes high-pressure leaks.

• Cone Seat Inspection: Before reassembly, inspect the internal cone sealing surface for nicks, scratches, or erosion. Replace the nut if damaged.

• Lubrication: Apply high-pressure anti-seize lubricant to threads to ensure accurate torque transfer.

• Full Depressurization: Always depressurize the waterjet system and follow lockout/tagout procedures before servicing.

•
