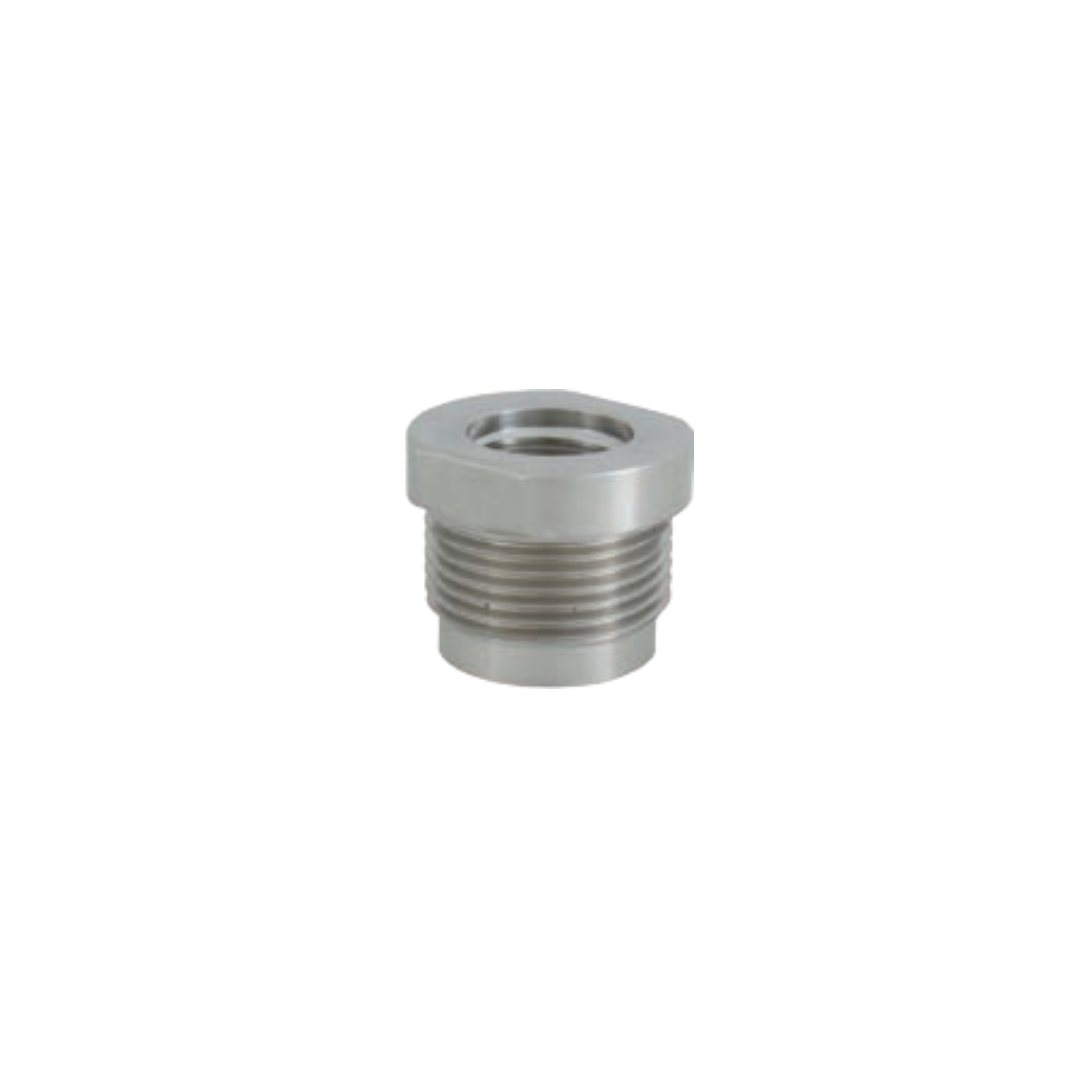

Product Name: 94k Clamp Nut Adapter (Part No. 190172-2)

Description:
This component is a high-pressure clamp nut adapter specifically designed for 94,000 PSI (approximately 6,480 bar) ultra-high pressure waterjet cutting systems . It serves as a critical connecting interface between high-pressure tubing, manifolds, on/off valves, and cutting head assemblies . The adapter utilizes a clamp nut retention mechanism that distributes clamping force evenly around the connection, preventing thread galling and ensuring a secure, leak-free metal-to-metal seal under extreme pressure cycling.

The adapter is manufactured from precipitation-hardened (PH) stainless steel, selected for its exceptional tensile strength, fatigue resistance, and corrosion resistance in high-stress waterjet environments . It is precision-machined to exacting tolerances to ensure proper alignment and sealing performance at pressures up to 94,000 PSI .

This component is designed for use with the 94k Advantage series waterjet systems and is fully compatible with industry-standard high-pressure components .

Applications:

• Connects high-pressure tubing to pump manifolds, on/off valves, cutting head swivels, and intensifier outlets in 94,000 PSI waterjet systems

• Serves as a reinforced coupling where standard 60k fittings are not rated for extreme pressure service

• Used in demanding cutting applications including aerospace components, heavy metal fabrication, stone processing, and advanced composite cutting

Features:

• 94,000 PSI Pressure Rating: Engineered for continuous operation at 6,480 bar, significantly higher than standard 60k components

• Precipitation-Hardened Stainless Steel Construction: Provides superior tensile strength, fatigue resistance, and corrosion protection

• Clamp Nut Retention Design: Evenly distributes clamping force around the connection, preventing thread galling and extending component life

• Metal-to-Metal Cone Seal: Precision-machined 60-degree cone sealing surface ensures leak-free operation under extreme pressure

• OEM Compatibility: Manufactured to original equipment specifications for 94k Advantage systems

Maintenance:

Inspection and Failure Diagnosis:

• Cone Seal Surface Inspection: Before assembly, inspect the 60-degree cone sealing surface for nicks, scratches, pitting, or deformation. Any damage will cause high-pressure leaks

• Thread Inspection: Check the clamp nut and adapter threads for signs of wear, galling, corrosion, or cross-threading. Damaged threads require immediate replacement

• Internal Bore Check: Examine the internal bore for erosion or wear patterns that could restrict flow or weaken the adapter

• External Leakage: Any visible water weeping from the connection indicates seal failure or improper installation

Installation and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures. 94,000 PSI systems present extreme injury risks

• Lubrication: Apply a thin, uniform layer of high-pressure thread lubricant or anti-seize compound to the cone sealing surface and clamp nut threads during reassembly to prevent galling and ensure proper seating

• Torque Compliance: Tighten the clamp nut to the specific torque value listed in the equipment service manual. 94k systems typically require higher torque than standard 60k fittings

• Cone Seal Care: Handle the adapter carefully to avoid damaging the precision-machined cone sealing surface. Even minor scratches can cause leaks

• Use as a Set: The clamp nut adapter should be used with matching 94k-rated gland nuts, cones, and tubing to maintain rated pressure integrity

• Replacement Criteria: Replace the adapter immediately if the cone sealing surface is damaged, threads are worn or deformed, cracks are visible, or internal erosion is detected

• Storage: Store spare adapters in a clean, dry environment with protective caps to prevent damage to precision sealing surfaces

Cross-Reference Information:

• Designed for 94k Advantage EP waterjet systems

• Compatible with 94,000 PSI rated high-pressure components
