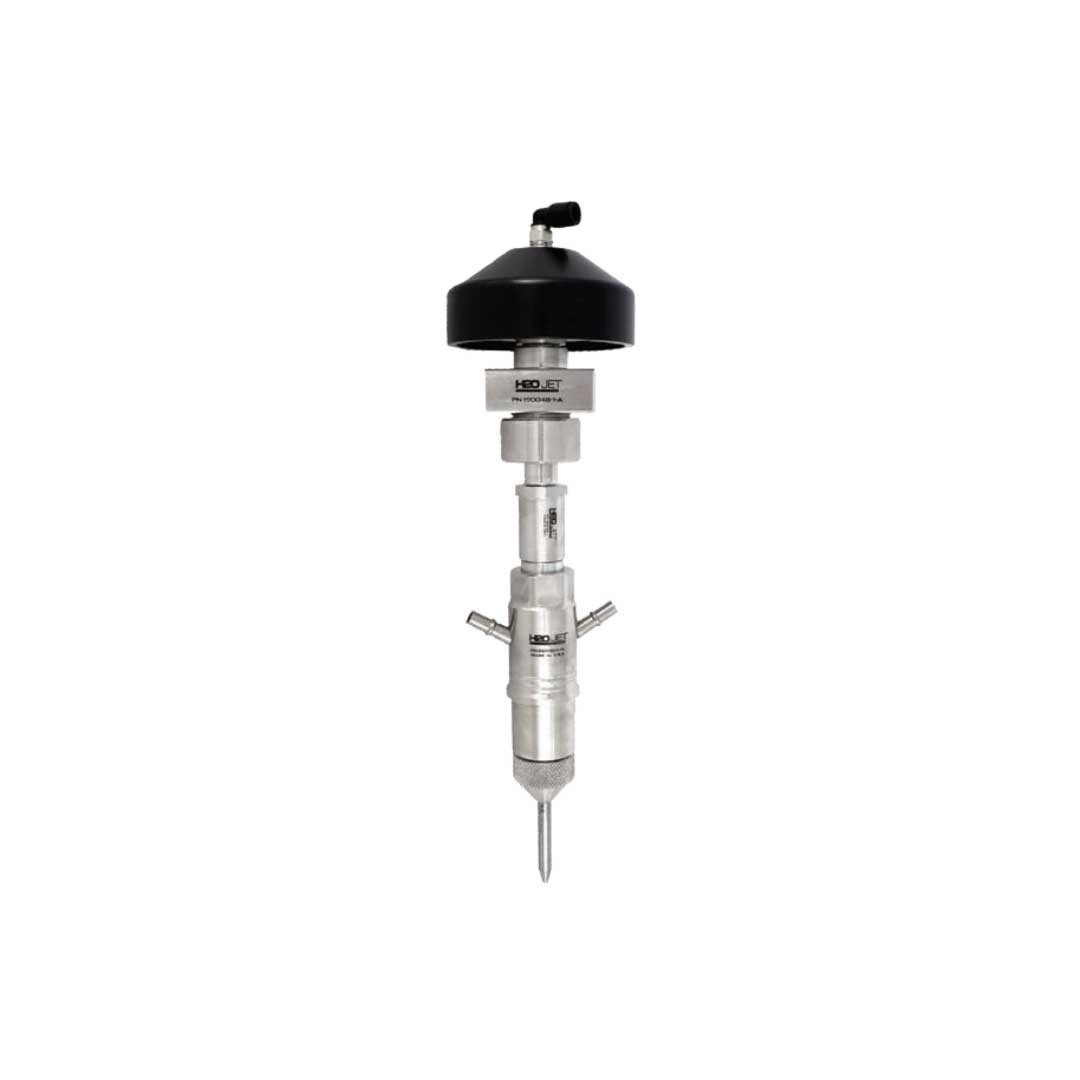

Product Name: 94k Advantage EP IDE Cutting Head Assembly (Part No. 391124-1-XX)

Description:
The 94k Advantage EP IDE cutting head is a complete, high-performance abrasive waterjet cutting head assembly rated for operation at pressures up to 94,000 PSI (approximately 6,480 bar) . This assembly incorporates H2O Jet's Integrated Diamond Eductor (IDE) technology, where the diamond orifice and mixing chamber are combined into a single, precision-aligned unit .

The IDE design provides perfect coaxial alignment between the orifice and the mixing tube, optimizing the Venturi effect for efficient abrasive suction and jet coherence . The assembly is a complete, turn-key solution that typically includes the mini-valve actuator, nozzle body, IDE mixing chamber (with integrated diamond and carbide components), and abrasive nozzle .

The "Advantage EP" (Extreme Pressure) designation indicates this model is specifically engineered to withstand the demands of 94,000 PSI operation while delivering superior cutting performance. Different suffix variations (e.g., -1-12, -3-07) denote different orifice diameters, port configurations (dual port vs. single port), and angle configurations (straight vs. 90-degree) .

Applications:

• Used as the primary cutting head assembly on ultra-high pressure waterjet cutting systems operating at 60,000–94,000 PSI

• Suitable for abrasive waterjet cutting of metals, stone, glass, ceramics, composites, and armor plate

• Compatible with dynamic/tilting head systems (90-degree Dyn XD variant) with matching tool center point for easy retrofit

• Applications include precision manufacturing, aerospace component cutting, automotive parts fabrication, and stone processing

Features:

• Integrated Diamond Eductor (IDE) Technology: Combines the diamond orifice and mixing chamber into a single unit, ensuring perfect alignment and simplifying maintenance

• 94,000 PSI Pressure Rating: Engineered for continuous operation at extreme pressures (6,480 bar) for maximum cutting speed and efficiency

• Complete Turn-Key Assembly: Ready-to-install unit requiring no additional component assembly

• Dual Port Configuration (Select Models): Available with dual abrasive ports for enhanced flow versatility

• Extended Component Life: The IDE design provides longer service life, more accurate cutting, and uses fewer parts than conventional designs

• Garnet Savings: Users can save up to 20% on garnet consumption per inch of cut due to optimized mixing efficiency

• Retrofit Compatibility: The 90-degree Dyn XD variant maintains the same tool center point as original heads for simple, direct replacement

Maintenance:

Maintenance Requirements:

• High-Pressure Inline Filter (Mandatory): An inline high-pressure filter (such as the Short Stop Filter #391026-3) MUST be used to protect the integrated diamond orifice from debris, foreign objects, and contamination (especially important after pump rebuilds). Failure to use a filter will void warranties and damage the diamond .

• Low Maintenance Design: The IDE cutting head is described as providing "long, maintenance-free performance" due to the integrated orifice and mixing chamber design .

Inspection:

• Periodically inspect the cutting head for signs of external water leakage, which may indicate seal or component wear.

• Monitor cut quality; a decrease in cutting speed or edge quality may indicate mixing tube wear or diamond orifice degradation.

• The splash guard or water deflector (compatible with Flow splash guards or H2O Jet water deflectors) should be checked for damage .

Component Wear:

• The primary wear components are the mixing tube (focusing tube) and the integrated IDE unit itself, though the IDE design significantly extends service life compared to traditional separate orifice/chamber designs .

• Replace the mixing tube when cut quality degrades or when bore wear is visible.

Installation/Replacement:

• The assembly is designed for straightforward installation; the Dyn XD variant can be mounted directly to tilting heads without re-calibration .

• Always fully depressurize the waterjet system and follow lockout/tagout procedures before disconnecting or installing the cutting head.

Cross-Reference Information:

• H2O Jet Part Number: 391124-1-XX (where XX denotes orifice size and configuration)

• Available orifice sizes include .007 inch, .010 inch, .012 inch, etc.

• Configurations include straight (Adv EP IDE) and 90-degree (Adv EP IDE 90deg Dyn XD) variants
