English Translation of Title:
Ferrule for Hose – Water Jet Cutting Machine Parts, Model No. 10083897-Ferrule-Hose-25.1263.3-1

Introduction, Application, Features, and Maintenance:

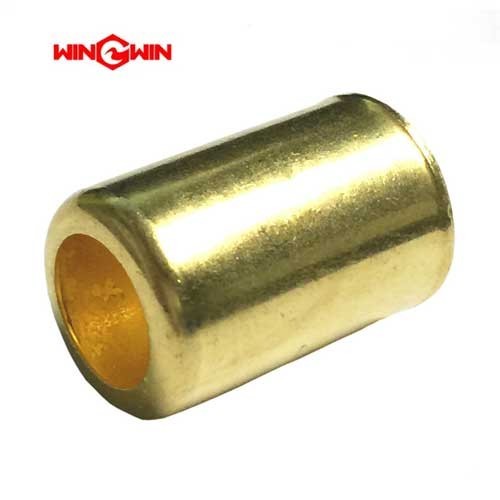

This component is a hose ferrule designed for water jet cutting systems. It is a cylindrical metal sleeve that is crimped, swaged, or pressed over the end of a flexible hose to secure the hose to a fitting or barb, creating a leak-proof connection.

Application:
Used to terminate and secure flexible hoses in water jet cutting machines, typically in low-pressure or return lines such as cooling water circuits, abrasive slurry return hoses, or drain lines where reliable hose-to-fitting connections are required.

Features:

• Designed for hoses with a nominal size of 25 mm.

• Manufactured from high-strength, corrosion-resistant material suitable for water and abrasive slurry exposure.

• Provides a permanent, leak-proof mechanical bond between hose and fitting.

• Smooth inner surface prevents damage to the hose during crimping.

• Resists loosening under vibration and pressure fluctuations.

• Available as a single-use component; must be replaced when the hose is removed or replaced.

Maintenance:

• Inspect the ferrule and the adjacent hose area for signs of corrosion, cracking, or wear during routine servicing.

• Check the connection for any leakage during machine operation.

• Replace the ferrule immediately if leakage, corrosion, or physical damage is observed.

• Always use a new ferrule when installing a new hose or re-terminating an existing hose.

• Ensure proper crimping tools and techniques are used during installation to achieve correct compression.

• Do not reuse a ferrule once it has been crimped.
