English Translation of Title:
U-Bolt for Water Jet Cutting Machine Parts – Model No. 10083384-U-Bolt-75.1325.3-1

Introduction, Application, Features, and Maintenance:

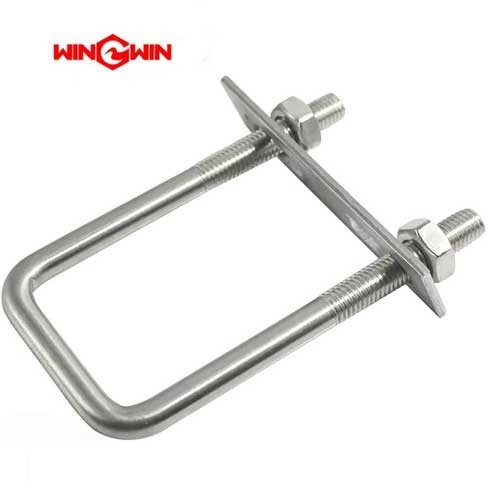

This component is a U-bolt designed for water jet cutting systems. It is a curved fastener shaped like the letter "U" with threaded ends on both sides, used to clamp and secure pipes, tubes, hoses, or conduit to mounting surfaces or brackets.

Application:
Used to secure high-pressure tubing, low-pressure hoses, flexible conduits, or cable assemblies in water jet cutting machines. Typical installation locations include pump mounting areas, cutting head cable management, and high-pressure line routing along machine frames.

Features:

• Designed to accommodate components with approximately 75 mm outer diameter.

• Manufactured from high-strength, corrosion-resistant material suitable for harsh water jet environments.

• U-shape design provides secure wrap-around clamping with even load distribution.

• Threaded ends allow secure fastening with nuts and washers to mounting brackets or frames.

• Resistant to vibration-induced loosening when properly torqued.

• Can accommodate protective liners or grommets to prevent damage to clamped components.

Maintenance:

• Regularly inspect the U-bolt for signs of corrosion, cracking, thread damage, or deformation.

• Check clamping tightness periodically, as machine vibration may cause gradual loosening.

• Inspect the surface of the tube or hose under the U-bolt for signs of abrasion or indentation.

• Replace immediately if any cracks, severe corrosion, stripped threads, or bending is observed.

• Use appropriate torque values when tightening nuts to avoid over-compression.

• Consider using rubber or plastic liners to protect soft tubing from wear.
