English Translation of Title:

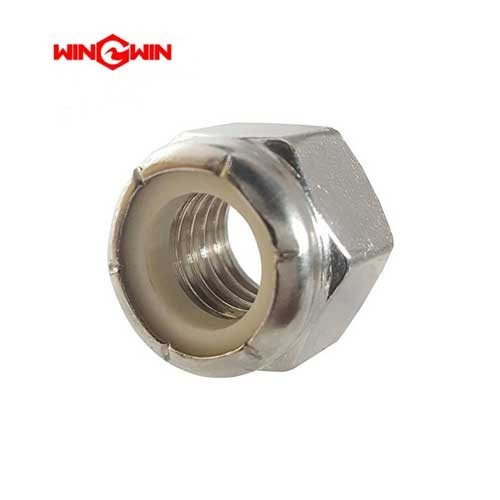

Lock Nut for Water Jet Cutting Machine Parts – Model No. 10083012-Lock-Nut-50.1248.3-1

Introduction, Application, Features, and Maintenance:

This component is a lock nut designed for water jet cutting systems. It is a threaded fastener that secures components in place and resists loosening under vibration, pressure pulsations, or thermal cycling commonly found in high-pressure water jet equipment.

Application:
Used to secure fittings, valves, conduits, or mounting hardware in water jet cutting machines. Common installation points include high-pressure connections, pump assemblies, cutting head mounting, and flexible conduit terminations where vibration resistance is required.

Features:

• Rated for extreme pressures and vibration conditions common in water jet cutting.

• Designed with locking mechanism such as nylon insert, distorted threads, or prevailing torque features to prevent loosening.

• Manufactured from high-strength, corrosion-resistant material suitable for harsh water jet environments.

• Standard thread size of 50 mm interface or compatible with 50 mm fittings.

• Reusable in most cases unless locking feature is compromised.

Maintenance:

• Regularly inspect the lock nut for signs of thread damage, corrosion, or loss of locking torque.

• Check for loosening of connected components during routine machine inspection.

• Replace immediately if threads are stripped, deformed, or if the locking feature no longer provides resistance.

• Apply appropriate torque values as specified for the connection type.

• For nylon insert type lock nuts, replace after several uses as the nylon may lose effectiveness.

• Clean threads thoroughly before reinstallation to ensure proper engagement.
