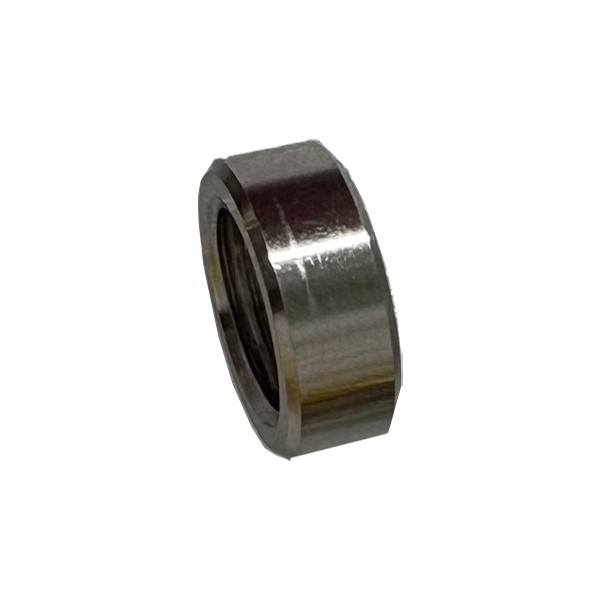

Product Name: HP Adapter (Part No. 400008-5)

Description:
This component is a High-Pressure (HP) adapter rated for 60,000 PSI (approximately 4,137 bar) waterjet systems. It is a precision-machined stainless steel fitting designed to transition between two distinct high-pressure port configurations. The specific geometry, likely a male-to-male or union design, facilitates secure connections between components such as manifolds, high-pressure cylinders, and cutting head assemblies without reducing the internal flow path.

Applications:

• Used to connect high-pressure cylinders or check valves to distribution manifolds in the intensifier pump assembly.

• Serves as a direct coupling to join two high-pressure lines or components with compatible ports.

Features:

• High-Strength Material: Machined from premium stainless steel to withstand the extreme cyclic pressures of waterjet operation.

• Leak-Free Integrity: Features precision-machined threads and sealing surfaces to ensure a reliable, metal-to-metal seal.

• Corrosion Resistance: The material composition offers resistance to water and abrasive dust in demanding environments.

Maintenance:

• Inspection: Before use, inspect the threads and cone seats for nicks, galling, or corrosion to prevent high-pressure leaks.

• Thread Preparation: Apply a thin layer of high-pressure anti-seize lubricant to the threads (not the cone seat) before assembly.

• Torque Compliance: Tighten to the manufacturer’s specified torque value. Use two wrenches to counter-hold the adapter body to avoid twisting stress.

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before installation or removal.
