APW Abrasive Body / Mixing Chamber (for APW Waterjet Cutting Heads)

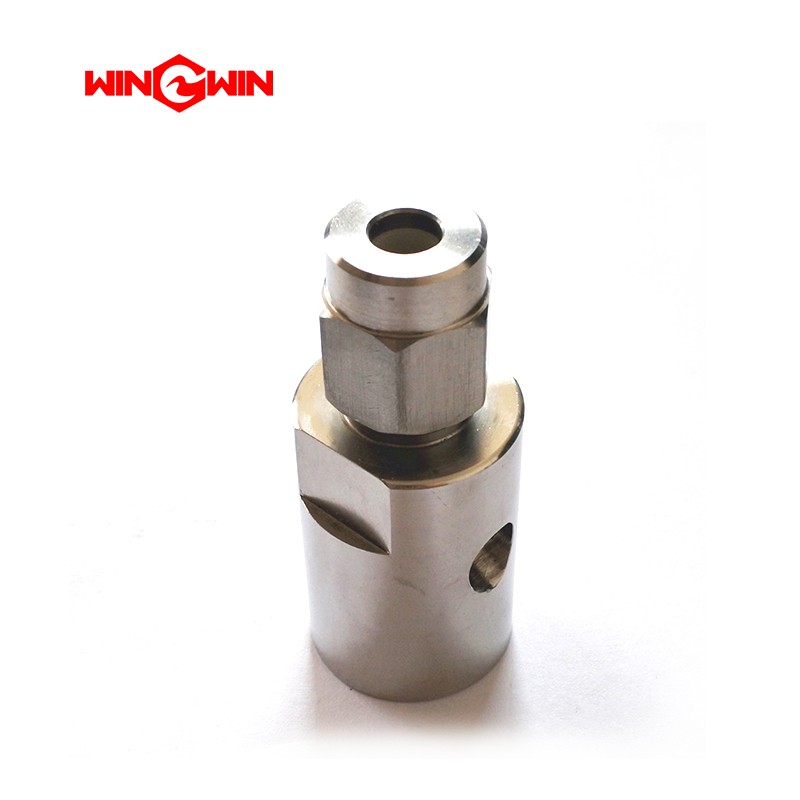

This component is the mixing chamber (also referred to as the abrasive body or mixing body) used in APW (Aotufo) series abrasive waterjet cutting heads. It is a precision-machined component—typically constructed from hardened stainless steel or wear-resistant alloy—that serves as the central housing where the ultra-high-pressure waterjet and abrasive particles (usually garnet) are combined before being accelerated through the focusing/mixing tube .

Applications

• Installed as a core component of the cutting head assembly in APW-series abrasive waterjet cutting systems .

• Positioned between the water nozzle (orifice) and the focusing tube (mixing tube) to facilitate the mixing process.

• Utilized in post-mixed (Venturi effect) abrasive waterjet systems, where the high-speed water jet creates a vacuum that draws abrasive into the chamber .

• Suitable for high-pressure waterjet cutting of various materials including metal, stone, glass, and composites.

Features

• Venturi/ Vacuum Integration: Engineered to create a localized vacuum (via the Venturi effect), ensuring the smooth suction and mixing of dry abrasive without requiring an external pump .

• Precision Geometry: The internal bore and chamber dimensions are machined to tight tolerances to ensure optimal alignment between the water orifice and the focusing tube, which is critical for jet coherence .

• Wear Resistance: Constructed from high-strength, corrosion-resistant materials (e.g., stainless steel) to withstand the erosive nature of high-velocity abrasive flow .

• Abrasive Inlet Port: Features a specialized side port designed to introduce abrasive particles at an optimized angle into the waterjet stream .

• Tool-Free or Easy Maintenance: Often designed for quick disassembly, allowing rapid access for cleaning or replacing internal wear components (such as the mixing tube or orifice) without complex tools.

Maintenance

• Erosion Inspection: Regularly inspect the internal bore and walls of the mixing chamber for signs of erosion, wear grooves, or diameter enlargement caused by abrasive particles . Excessive wear will degrade mixing efficiency and cut quality.

• Contamination Cleaning: During cutting head maintenance, remove the mixing chamber and thoroughly clean any compacted abrasive debris or residual particles from the chamber to prevent blockages .

• Component Seating: Ensure that the water nozzle, mixing chamber, and mixing tube are perfectly coaxial (aligned) during reassembly. Misalignment will lead to rapid wear of the mixing tube and poor cut quality .

• Seal Replacement: Always replace associated O-rings and high-pressure seals when reassembling the mixing chamber to prevent high-pressure water leaks.

• Full Depressurization: Always fully depressurize the waterjet system (high-pressure water and abrasive supply) and follow lockout/tagout procedures before disassembling or servicing the mixing chamber.

•
