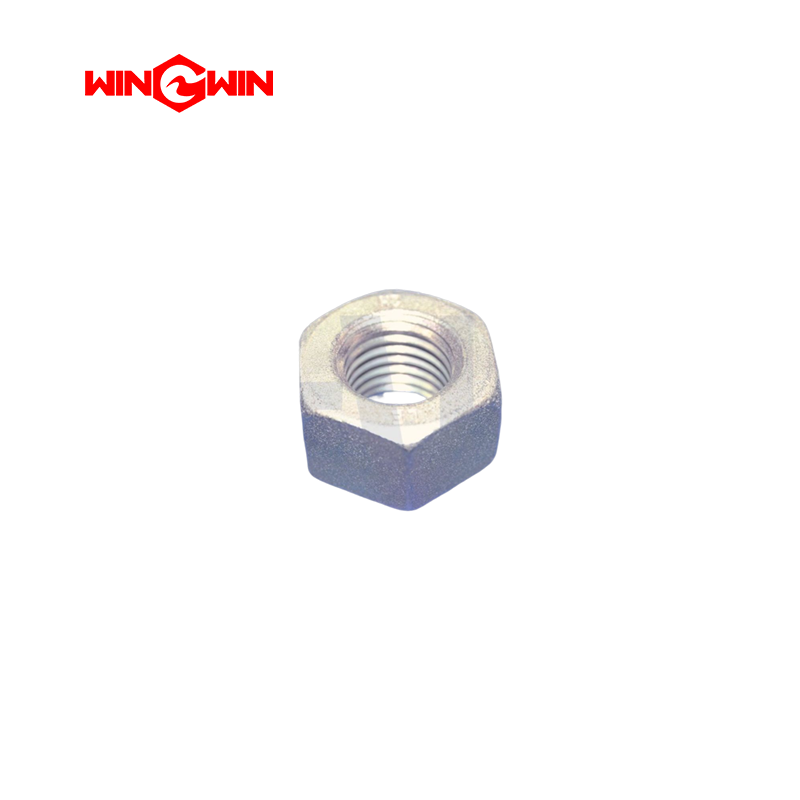

Product ID: 10069904 – Heavy Hex Nut

Description:
This component is a heavy hex nut, a high-strength threaded fastener designed for critical bolted connections in waterjet intensifier pumps . Unlike standard hex nuts, the heavy hex series features a larger width across flats and greater thickness, providing increased bearing surface and higher tensile strength. This heavy hex nut is typically used as a structural fastener on tie rods or mounting stems that secure the major pump assemblies, such as the high-pressure cylinder, end flanges, and hydraulic cylinder head, into a single rigid stack .

Applications:

• Used as a structural retaining nut on intensifier pump tie rods (mounting stems) to secure the high-pressure cylinder, end flanges, and hydraulic cylinder head together .

• Installed on the threaded ends of long tie rods that run the length of the intensifier assembly, applying clamp load to withstand the extreme separation forces generated during the compression stroke .

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar) and higher .

• Compatible with SL-IV, SL-V, Classic, and other standard intensifier assemblies .

Features:

• Heavy Hex Configuration: Features a larger width across flats and greater thickness than standard nuts, providing a larger bearing surface and distributing clamp load more evenly across flange surfaces .

• High-Strength Material: Manufactured from heat-treated alloy steel or hardened stainless steel to meet or exceed property class requirements for high-strength bolting applications .

• Precision Threads: CNC-machined internal threads to exact dimensional specifications (e.g., Unified National Coarse or Fine series) for consistent fit and reliable torque performance .

• Corrosion-Resistant Finish: Surface treated (e.g., zinc plating, black oxide, or similar) to resist corrosion from water exposure and hydraulic fluids in waterjet operating environments .

• Fatigue Rated: Engineered to withstand the cyclic loading inherent in intensifier pump operation, resisting loosening and fatigue failure over extended service intervals .

Maintenance:

• Torque Compliance: Tighten the heavy hex nut to the specific torque value listed in the equipment service manual. Use a calibrated torque wrench and follow a staggered (cross) tightening pattern when multiple nuts secure a common flange .

• Inspection: During pump overhaul or preventive maintenance, inspect the nut for signs of thread damage, galling, corrosion, or cracking. Pay particular attention to thread deformation or evidence of overtightening .

• Replacement Criteria: Replace the heavy hex nut if any visible thread damage, cracking, or severe corrosion is detected. Nuts that have been overtightened (stretched threads) should also be replaced .

• Thread Lubrication: Apply manufacturer-recommended anti-seize compound or thread lubricant to the mating bolt threads during reassembly to prevent galling, ensure accurate torque transfer, and facilitate future disassembly .

• Full Depressurization: Always fully depressurize both the hydraulic system and the high-pressure water system before removing or installing heavy hex nuts on the intensifier assembly. Follow lockout/tagout procedures .

• Preload Verification: When replacing tie rods or mounting stems, always use new heavy hex nuts to ensure proper preload and thread fit. Reusing nuts on new bolts may result in reduced clamp load .

• Set Replacement: Replace heavy hex nuts as a complete set when rebuilding the intensifier to ensure even clamp load distribution across all tie rods .
