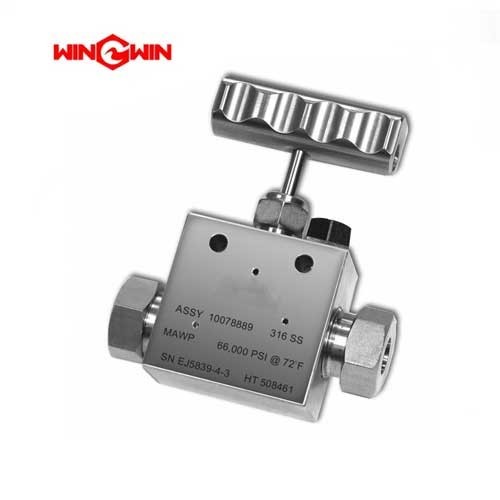

Product Name: 2-Way Straight Valve, 9/16" – Part No. 10078889

Description:
This component is a two-way straight high-pressure valve, specifically designed for 9/16 inch waterjet cutting systems. It provides reliable manual on/off control of high-pressure water flow in a straight-through (inline) configuration, making it ideal for main transmission lines where space is not constrained. The valve is rated for continuous operation at 60,000 PSI (approximately 4,137 bar). Constructed from stainless steel, it is engineered to withstand the extreme pressure cycling, vibration, and erosive conditions inherent in waterjet cutting.

This valve is an OEM-equivalent replacement part, with multiple cross-references including 1-13166-60-9, A-0788-5, KMT 10078889, H2O Jet 400072-3-2, WSI FT60VM9071, and Allfi Waterjet 910210-I. It is also listed in Table 12-54 (High Pressure Fitting and Valve Assemblies).

Applications:

• Provides straight-line on/off control of high-pressure water flow in waterjet cutting systems

• Installed between the intensifier pump outlet and the cutting head assembly for main flow control

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (4,137 bar)

• Used in high-pressure manifolds, accumulator systems, and main transmission lines

• Compatible with major waterjet systems from KMT, FLOW, AccuStream, H2O Jet, OMAX, BFT, WSI, and APW

Features:

• 2-Way Straight Configuration: Provides inline on/off flow control without changing flow direction

• 9/16 Inch Connection Size: Industry-standard size for high-flow waterjet plumbing

• 60,000 PSI Pressure Rating: Engineered for continuous operation at 4,137 bar

• Stainless Steel Construction: Provides excellent corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Sealing Surfaces: Ensures leak-tight shut-off and smooth valve operation

• Standard Cone-and-Thread Connections: Compatible with standard 9/16" HP fittings, gland nuts, and coned inserts

• Direct OEM Replacement: Interchangeable with major waterjet brands

• Straight-Through Design: Minimizes turbulence and pressure drop, delivering consistent water flow

Maintenance:

Failure Diagnosis (When to Replace):

• External Water Leakage: Visible water weeping from the valve body or stem indicates seal failure, requiring immediate valve replacement

• Thread Damage: Stripped, galled, or corroded thread ports prevent proper tightening and will cause high-pressure leaks

• Cone Seat Damage: Nicks, galling, or pitting on the 60-degree cone sealing surfaces will compromise the seal

• Stem Seal Failure: If the valve leaks from the stem area during operation, internal stem seals have failed

• Difficult Operation: If the valve handle requires excessive force or feels gritty when turning, internal components may be damaged

• Cracked or Deformed Body: Any visible cracking or distortion of the stainless steel valve body warrants immediate replacement

• Scheduled Preventive Maintenance: Develop a routine for leak-checking high-pressure fittings and valves at the beginning of each shift; repair any leaks as soon as they are discovered

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, and follow lockout/tagout procedures. Never service a pressurized HP line

• Leak Detection: Leaks not visible to the naked eye can often be discovered by feeling the temperature of components — if a connection feels warmer than normal, internal leakage may be occurring

• Port Inspection: Before installation, thoroughly inspect both port threads and cone seats for nicks, galling, or deformation. Examine the valve body for cracks or corrosion

• Component Replacement Practice: When disassembling a high-pressure joint, it is standard practice to replace the cone, gland, and collar if they show signs of wear

• Lubrication: Apply a thin, even layer of high-pressure anti-seize lubricant (e.g., "Silver Grade" or "Blue Goop") to the male threads of the mating gland nuts only. Do not apply lubricant to the cone sealing surfaces

• Two-Wrench Method (Critical): When tightening or loosening connections, use two appropriately sized wrenches—one to counter-hold the valve body and one to tighten the gland nut—to prevent twisting stress on the assembly

• Torque Compliance: Tighten all connections to the specific torque values listed in the equipment service manual for 9/16" HP connections using a calibrated torque wrench

• Clean Area Maintenance: Perform valve rebuilds in a designated clean area to prevent contamination of replacement parts with abrasive particles; wear disposable gloves to prevent natural oils from being introduced to seal materials

• Replace if Damaged: Replace the valve immediately if threads are damaged, cone seats are pitted or deformed, cracks are visible, stem seals are leaking, or persistent leakage occurs despite correct installation

• Storage: Store spare valves in a clean, dry environment to protect precision threads and sealing surfaces from damage before use

Cross-Reference Information:

• OEM Part Number: 10078889

• Table 12-54: High Pressure Fitting and Valve Assemblies

• AccuStream #: 1-13166-60-9

• Flow #: A-0788-5

• KMT #: 10078889

• H2O Jet #: 400072-3-2

• WSI #: FT60VM9071

• Other #: NVT9H1VM60, 7500029, Allfi Waterjet 910210-I

• Pressure Rating: 60,000 PSI (4,137 bar)

• Connection Size: 9/16 inch

• Material: Stainless Steel
