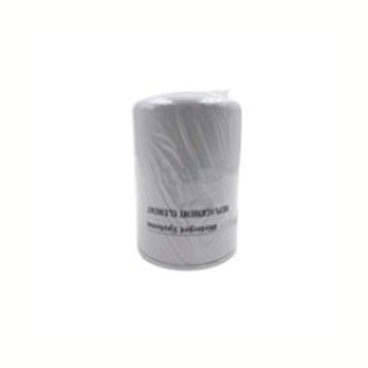

Product ID: 20468666 – Filter Element, Hydraulic (Return Line Filter Element)

Description:
This component is a hydraulic return line filter element designed specifically for high-pressure waterjet intensifier pumps and hydraulic power units . It is a cylindrical, consumable filtration component that removes particulate contaminants, metal shavings, dirt, and water from hydraulic oil circulating in the closed-loop hydraulic system. The filter element is installed within a filter housing on the return line to the hydraulic reservoir, ensuring that oil returning from the intensifier cylinder is cleaned before re-entering the pump.

The filter element utilizes a composite filtration medium consisting of high-strength paper and glass fiber layers, balancing high filtration efficiency with adequate dirt-holding capacity . The construction features a corrosion-resistant stainless steel core and end caps, providing structural integrity under high differential pressures. The outer surface typically incorporates a ribbed or pleated design to maximize surface area while maintaining collapse resistance.

Applications:

• Used in waterjet cutting machines to filter hydraulic oil on the low-pressure return line from the intensifier cylinder to the reservoir tank

• Installed within a spin-on or cartridge-style filter housing, typically located on the hydraulic power unit or pump manifold

• Suitable for high-pressure hydraulic systems in waterjet intensifier pumps operating at hydraulic pressures of 1,500–5,000 PSI (approximately 100–345 bar)

• Compatible with SL-V, SL-VI, Classic series, and OEM intensifier assemblies with return line filtration requirements

Features:

• Composite Filtration Media: Utilizes a proprietary blend of high-grade paper and glass fiber layers, providing high contaminant capture efficiency while maintaining consistent flow rates

• Stainless Steel Core: Corrosion-resistant stainless steel inner core and end caps prevent collapse under high differential pressure and resist degradation from hydraulic fluid exposure

• High Collapse Pressure Rating: Engineered to withstand return line pressure spikes without structural failure, typically rated for differential pressures up to 290 PSI (20 bar) or higher

• Pleated Design: High-density pleating maximizes filtration surface area, extending service life and reducing flow restriction

• Filtration Efficiency: Designed to capture particles down to 3–10 microns absolute, protecting sensitive hydraulic components from abrasive wear

• Thermal Stability: Operating temperature range suitable for hydraulic oil temperatures up to 120–150°C (248–302°F)

• Compatibility: Compatible with petroleum-based hydraulic oils, synthetic hydraulic fluids, and biodegradable oils commonly used in waterjet systems

Maintenance:

• Change Interval: Replace the hydraulic return line filter element according to the manufacturer’s recommended schedule, typically every 500–1,000 operating hours or when a filter clogging indicator (if equipped) activates

• Pressure Drop Monitoring: If the system is equipped with a clogging indicator, replace the element immediately when the indicator enters the red zone or bypass valve opens

• Inspection During Replacement: When replacing the element, inspect the filter housing interior for metal particles or sludge accumulation; excessive metal debris indicates internal pump or cylinder wear requiring further investigation

• Contamination Control: Use extreme cleanliness when replacing the filter element. Prevent any contaminants from entering the housing or hydraulic reservoir. Clean the housing interior with lint-free wipes before installing a new element

• Seal Replacement: Always replace the O-ring or gasket seal on the filter housing cover during each element change to prevent external hydraulic leaks

• Full Depressurization: Before removing the filter element, fully depressurize the hydraulic system (shut off pump, cycle intensifier to bleed stored pressure), shut off the high-pressure water system, and follow lockout/tagout procedures

• Replacement Criteria: Replace the element immediately if any of the following are observed:

• Visual inspection shows media discoloration, tears, or media separation from end caps

• Collapse or deformation of the stainless steel core

• The element has exceeded the manufacturer’s maximum recommended operating hours

• Pressure drop across the element exceeds the manufacturer’s specified limit

• Storage: Store spare filter elements in a clean, dry environment in sealed plastic bags to prevent contamination and moisture absorption by the paper/glass fiber media

• Environmental Disposal: Dispose of used filter elements in accordance with local environmental regulations; used elements contain captured contaminants and residual hydraulic oil

• Cross-Reference Information: This filter element may be referenced under various OEM part numbers. Verify dimensions (outside diameter, inside diameter, length) and micron rating before installation
