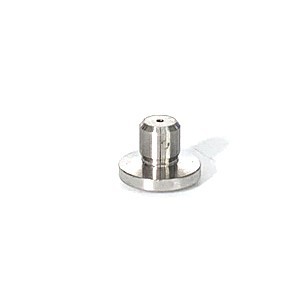

Product ID: 10178697 – Valve Seat (Pneumatic On/Off Valve Component)

Description:
This component is a valve seat for the pneumatic on/off valve assembly in high-pressure waterjet cutting systems . It is a precision-machined disc-shaped sealing component that serves as the stationary sealing surface within the water switch valve body. The valve seat works in conjunction with the valve stem to create a leak-tight shut-off, controlling the flow of high-pressure water from the pump to the cutting head.

This part is manufactured by AccuStream (KMT Waterjet Systems) under OEM part number 10178697 and is also cross-referenced as production number 1-11099 . The valve seat is rated for ultra-high pressure operation and is a critical consumable component in the pneumatic on/off valve assembly used on SL-V series (30-50 HP) and other compatible intensifier systems .

Applications:

• Used as the stationary sealing seat within the pneumatic on/off valve (water switch) assembly of waterjet cutting systems

• Installed in the valve body (Product ID 10189181) between the high-pressure inlet and the valve stem, providing a sealing surface for the valve stem to close against

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar)

• Compatible with KMT AccuStream SL-V series (30-50 HP), Techni waterjet cutting heads , and other standard waterjet systems

• Used in both normally closed (NC) and normally open (NO) pneumatic valve configurations

Assembly Context (Pneumatic Control Valve, Normally Closed):
The valve seat (item 7) is a key component within the complete pneumatic on/off valve assembly. The assembly includes :

• Item 1: 10177855 – Pneumatic Actuator Assembly, NC

• Item 2: 10189181 – Valve Body

• Item 3: BV701184 – HP Gland

• Item 4: 10188233 – Brass Backup Ring

• Item 5: 20428052 – Seal Assembly

• Item 6: 20435636 – Valve Stem

• Item 7: 10178697 – Valve Seat

Features:

• High-Strength Construction: Manufactured from wear-resistant, hardened material to withstand repeated impact from the valve stem and high-velocity water flow

• Precision-Ground Sealing Surface: Machined to exact specifications for leak-tight shut-off when mated with the corresponding valve stem

• Consumable Component: The valve seat is a high-wear consumable part designed to protect the more expensive valve body from damage

• OEM Compatibility: Direct replacement part for KMT AccuStream waterjet systems and compatible with Techni waterjet cutting heads

• Standardized Dimensions: Engineered to OEM specifications for drop-in replacement during valve maintenance

• Critical Sealing Interface: Functions as the stationary sealing surface that the valve stem closes against to stop high-pressure water flow

Maintenance:

• Critical Wear Component: The valve seat is a high-wear consumable part. If the seat sealing surface is damaged or worn, the valve will not seal properly, resulting in water leakage from the cutting head when the valve is supposed to be closed, pressure drop, or inability to maintain rated cutting pressure

• Inspection: During pneumatic valve overhaul or preventive maintenance, inspect the valve seat sealing surface for pitting, erosion, cracking, indentation, or wear caused by repeated valve stem impact. Even minor surface damage can cause leakage

• Replacement Criteria: Replace the valve seat immediately if any surface damage is visible. A worn or damaged seat will prevent the valve from sealing properly, leading to water leakage, pressure loss, and reduced cutting performance

• Simultaneous Stem Replacement: When replacing the valve seat, always replace the corresponding valve stem (Product ID 20435636) simultaneously. Reusing a worn valve stem with a new seat (or vice versa) will compromise sealing and shorten the life of both components

• Full Depressurization: Always fully depressurize the waterjet system (both hydraulic and high-pressure water circuits) and follow lockout/tagout procedures before removing the pneumatic valve assembly or replacing the valve seat

• Seal Replacement: When servicing the valve, also replace the seal assembly (20428052) and brass backup ring (10188233) as part of a complete valve overhaul

• Torque Compliance: When reinstalling, tighten the HP gland (BV701184) to the specific torque value listed in the equipment service manual to ensure proper seat compression and leak-free operation

• Water Quality Impact: Poor water quality (contaminants, hardness) accelerates wear on both the valve seat and stem. If these components require replacement too frequently, investigate and improve water filtration/treatment

• Kit Availability: This valve seat is commonly available as part of pneumatic valve repair kits, which may include the seat, stem, seal assembly, and backup ring for a complete valve overhaul
