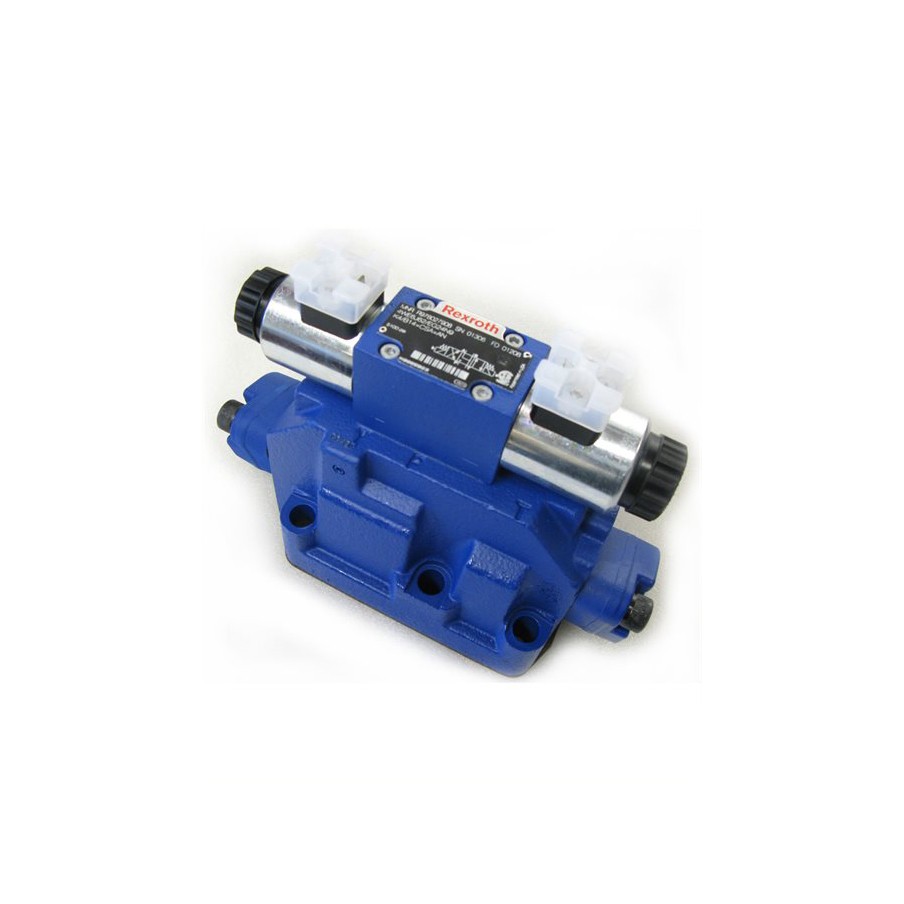

Product ID: 20437164 – Directional Control Valve / Electrical Shift Pilot Assembly

Description:
This component is a directional control valve, specifically an electrical shift pilot assembly designed for high-pressure waterjet intensifier pumps . It is a precision electromechanical control component that directs the flow of high-pressure water or hydraulic fluid to control the movement of the pump plunger from forward to reverse stroke. The assembly receives electrical signals from the pump control system and converts them into mechanical action to shift the intensifier direction .

This component consists of multiple integrated parts, typically including a solenoid valve, pilot valve, and pressure switch, which work together to control plunger movement. This assembly is specifically designed for 100HP waterjet cutting pumps and high-pressure intensifier systems.

Applications:

• Used in waterjet intensifier pumps to control the directional shifting of the hydraulic piston and plunger assembly between forward and reverse strokes

• Installed on the control panel or manifold block of the intensifier pump, receiving electrical signals from the CNC controller or pump control system

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar) and higher

• Compatible with 100HP waterjet cutting pumps and high-pressure intensifier assemblies

Features:

• Electrically Actuated Pilot Valve: Converts electrical control signals into hydraulic or water pressure shifts to reverse plunger direction at the end of each stroke

• Integrated Solenoid Valve: Opens to allow high-pressure water flow toward the pilot valve when an electrical signal is received from the control system

• Pilot Valve Mechanism: Uses the pressure of water or hydraulic flow to move the pump plunger from forward to reverse direction

• Pressure Switch Integration: Monitors system pressure and provides feedback to ensure proper shift timing

• Precision Control: Provides reliable and precise control mechanism for moving the pump plunger, ensuring consistent pressure output and pump cycling

• Fast Response Time: Engineered for rapid directional changes to maintain stable cutting pressure and efficient pump operation

• High-Pressure Rating: Designed for continuous operation at pressures up to 60,000–90,000 PSI (4,137–6,200 bar)

• Corrosion-Resistant Construction: Manufactured from materials suitable for waterjet environments with exposure to water and hydraulic fluids

Maintenance:

• Critical Control Component: The directional control valve is a key component of the waterjet intensifier system. If damaged or malfunctioning, the plunger may move improperly or fail to shift, leading to decreased pump performance or complete pump failure

• Failure Symptoms: Signs of malfunction include erratic pump cycling, failure to reverse direction, pressure drop, inconsistent cutting performance, or the pump stopping at the end of a stroke

• Electrical Testing: Verify that the solenoid valve receives proper voltage at the specified rating. Check electrical connections for corrosion, loose terminals, or damaged wiring

• Pilot Pressure Check: Ensure adequate pilot pressure is available for valve actuation. Low pilot pressure can cause incomplete or failed shifting

• Internal Cleaning: During overhaul, clean internal passages to remove debris, mineral deposits, or contamination that could block pilot ports

• Seal Replacement: When servicing the pilot assembly, replace all associated seals, O-rings, and gaskets. Do not reuse old sealing components

• Full Depressurization: Before servicing the directional control valve, place the main electrical disconnect in the OFF position, bleed down all high-pressure lines, fully depressurize the hydraulic system, and follow lockout/tagout procedures

• Replacement Criteria: Replace the directional control valve assembly if the solenoid fails to actuate despite correct electrical signal, if the pilot valve sticks or fails to shift, if internal components are worn or damaged, or if visible damage to the housing is detected

• Cross-Reference Information: This component is also known as an electrical shift pilot assembly for 100HP waterjet cutting pumps . It is a direct OEM replacement part for specific intensifier models
