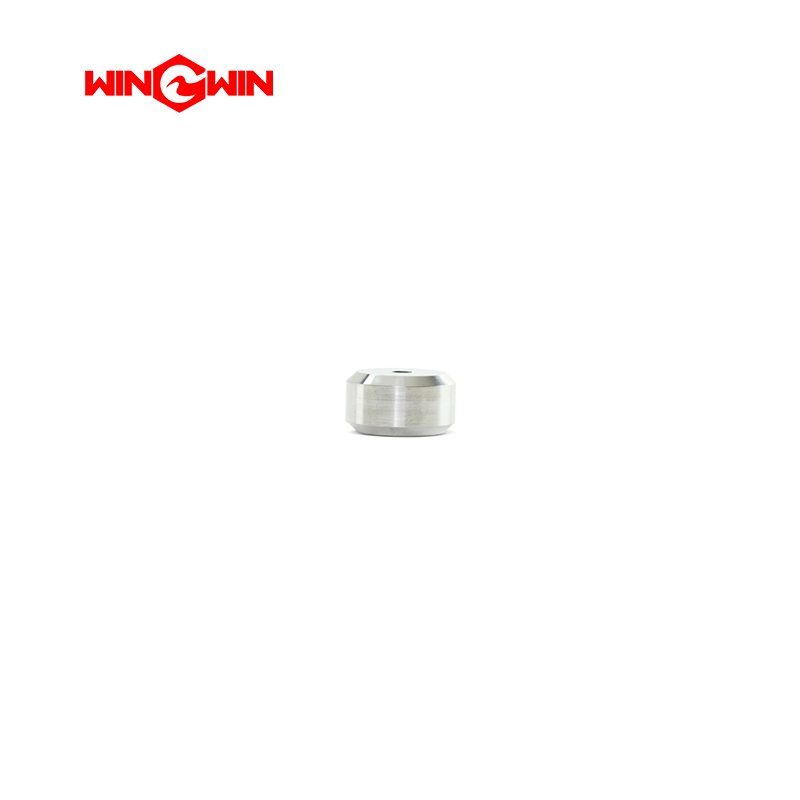

Product ID: 05112768 – HP Seat / Discharge Seat (Check Valve Component)

Description:
This component is a high-pressure (HP) seat, also known as a discharge seat or flat outlet poppet seat, designed for waterjet intensifier pumps . It is a precision-machined, disc-shaped sealing component that serves as the stationary sealing surface within the high-pressure check valve assembly. The HP seat works in conjunction with a poppet (valve stem) to create a leak-tight seal, controlling the one-way flow of pressurized water from the intensifier cylinder to the outlet manifold . This part is designed for intensifier pumps with a .875 inch (7/8") plunger diameter and is rated for 60,000 PSI (approximately 4,137 bar) operation . Alternative or cross-reference part numbers include 1-11266 and 10107902 .

Applications:

• Used as the outlet (discharge) check valve seat within the high-pressure check valve assembly of waterjet intensifier pumps .

• Installed in the check valve body, positioned between the intensifier cylinder and the high-pressure outlet line, sealing against the outlet poppet to prevent reverse water flow.

• Suitable for ultra-high pressure waterjet systems operating at 60,000 PSI (approximately 4,137 bar), compatible with .875 inch plunger intensifiers such as SL-IV, SL-V, Classic, and Neoline series pumps .

Features:

• Constructed from high-strength, wear-resistant material (typically hardened steel or carbide) to withstand the repeated impact of the poppet and high-velocity water flow.

• Precision-ground sealing surface ensures a leak-tight shut-off when mated with the corresponding outlet poppet.

• Engineered as a sacrificial consumable; the seat is designed to wear over time while protecting the more expensive check valve body.

• Flat seat design (flat outlet poppet seat) provides reliable sealing under extreme pressure cycling .

• Dimensional specifications: approximately 0.1–0.35 mm thickness range depending on variant .

Maintenance:

• Critical Wear Component: The HP seat is a high-wear consumable part. If the seat is damaged or worn, the machine will experience pressure drop or inability to maintain rated cutting pressure .

• Inspection: During check valve or intensifier overhaul, inspect the seat sealing surface for pitting, erosion, cracking, or indentation caused by repeated poppet impact. Even minor surface damage can cause pressure loss.

• Replacement Criteria: Replace the HP seat immediately if any surface damage is visible. A worn or damaged seat will prevent the check valve from sealing properly, leading to pressure drop, reduced cutting performance, and increased cycle times.

• Frequent Replacement Warning: If the HP seat requires replacement too frequently, investigate potential causes such as poor water quality (contaminants accelerating wear) or damage to the corresponding poppet or check valve body . Excessive seat wear may indicate other issues within the high-pressure system.

• Poppet Inspection: Always replace the corresponding outlet poppet (valve stem) simultaneously with the seat. Reusing a worn poppet with a new seat will compromise sealing and shorten seat life .

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing the check valve assembly or replacing the HP seat.

• Torque Compliance: When reinstalling, tighten all check valve components to the torque values specified in the equipment service manual to ensure proper seat compression and leak-free operation.

• Kit Replacement: The HP seat is commonly available as part of check valve repair kits (e.g., 80074057, 20489495), which include the seat, poppet, spring, and other required components for a complete valve overhaul .
