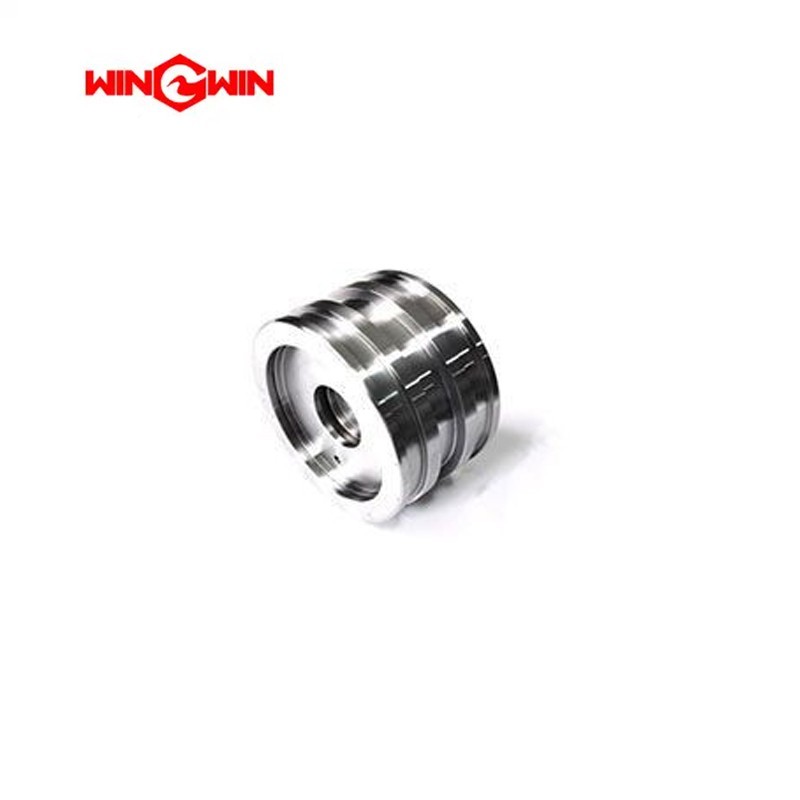

Product Name: Hydraulic Piston (Part No. 20457966) – Intensifier Component

Description:
This component is the hydraulic piston, a primary moving component within the hydraulic cylinder of a waterjet intensifier pump assembly . It functions as the main force-transmitting element that converts hydraulic oil pressure into linear mechanical motion . As the piston reciprocates inside the hydraulic cylinder, it directly drives the high-pressure plunger (connected via a plunger rod), which in turn compresses water to ultra-high cutting pressures (typically 60,000–94,000 PSI / approximately 4,137–6,480 bar).

This part is engineered to withstand millions of high-cycle strokes under extreme hydraulic pressure and is manufactured from high-strength, fatigue-resistant alloy steel. The piston includes precisely machined grooves to accommodate multiple high-load (Hi-Load) seals, including Nylon Back-up Rings, an inner Energizer Ring, and an outer Teflon Cap Ring . It is a core element of the Hydraulic Piston Assembly, which also includes the piston rebuild kit (piston rings and seals) . This component is compatible with intensifier assemblies across major waterjet brands, including KMT, AccuStream, and H2O Jet, and is listed as item 2 in the Intensifier Assembly parts diagram (20458728).

Applications:

• Serves as the primary reciprocating drive element within the hydraulic cylinder of waterjet intensifier pumps

• Converts hydraulic fluid pressure into linear mechanical force to drive the high-pressure plunger assembly

• Part of the Hydraulic Piston Assembly (20458869), which includes the piston, rebuild kit (20458821), and seal (20460216)

• Suitable for 60k–94k ultra-high pressure waterjet intensifier systems

• Used in major intensifier assemblies (KMT, H2O Jet, AccuStream, Flow) for both minor maintenance and complete pump overhauls

Features:

• Hi-Load Piston Design: Equipped with an extra support sleeve and advanced sealing materials (Nylon backup rings + Teflon cap) for significantly longer service life

• High-Strength Alloy Construction: Manufactured from fatigue-resistant steel to withstand extreme cyclical hydraulic pressures and millions of strokes

• Precision-Machined Grooves: Engineered with specific seal grooves for the two outer Teflon Bearing Rings and a central energizing seal stack

• Critical Power Transmission: Directly drives the high-pressure plunger (via a yoke or retainer) to generate water cutting pressure

• OEM Direct Replacement: Interchangeable with major OEM part numbers (KMT, H2O Jet, AccuStream) and listed directly in intensifier assembly parts lists

Maintenance:

When to Replace (Failure Diagnosis):

• Loss of Cutting Pressure: If the intensifier fails to build or maintain rated cutting pressure, internal piston seal bypass is a common cause

• Hydraulic Oil Bypass: If the intensifier cycles more slowly in one direction or "overstrokes," the piston seals may be worn

• Erratic Cycling or Knocking: Inconsistent intensifier stroke rates or loud "banging" during direction changes can indicate piston seal or component failure

• External Hydraulic Leakage: Oil weeping from the hydraulic cylinder or end bell areas suggests rod seal failure, often requiring piston assembly inspection

• Scheduled Preventive Maintenance: It is standard practice to replace the piston seals (rebuild kit) during major intensifier overhauls or when the pump is disassembled for seal replacement

Inspection and Replacement Guidelines:

• Hydraulic Oil Cleanliness (Critical): Contaminated oil with impurities is the primary cause of piston seal and cylinder bore wear. Maintain proper filtration and change oil at recommended intervals

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize both the hydraulic system and the high-pressure water circuit, and follow lockout/tagout procedures

• Proper Seal Orientation: The outer Teflon bearing rings must be installed with their end joints offset (not aligned). For Hi-Load pistons, the two Nylon backup rings must be installed with their curved inside edges facing the Teflon cap

• Heating the Teflon Cap Ring: To facilitate installation of the Teflon Cap Ring, heat it in 150°–200°F (65°–90°C) water for 2–3 minutes to soften it

• Ring Compressor Required: After installing the Teflon Cap, the ring must be resized using a ring compressor for at least three minutes so it will fit properly in the hydraulic cylinder bore

• Inspect Cylinder Bore: Before installing a new piston assembly, inspect the hydraulic cylinder bore for scratches, burrs, or gouges. A damaged cylinder will rapidly destroy new seals

• Lubricate During Installation: Apply clean hydraulic oil to the cylinder bore and the new seals/piston assembly to prevent dry start-up and ensure proper seating

• Torque Compliance: When reinstalling the piston assembly and end bells, use a crossing pattern to tighten tie rod nuts to the torque value specified in the equipment service manual (e.g., 160 Nm / 120 ft-lbs)

• Use Alignment Fixture: An intensifier assembly fixture must be used to square the end bells with each other during reassembly to prevent oil manifold damage

• Replacement Kit Availability: The piston seal and ring components are available as a specific rebuild kit (P/N 20458821), which should be used during a complete overhaul. The seal (P/N 20460216) is also listed as an additional service component

Cross-Reference Information:

• H2O Jet / KMT #: 20457966

• OEM: AccuStream

• Part of Hydraulic Piston Assembly: 20458869

• Works with Rebuild Kit, Piston Rings: 20458821

• Works with Seal: 20460216

• Listed in Intensifier Assembly 20458728
