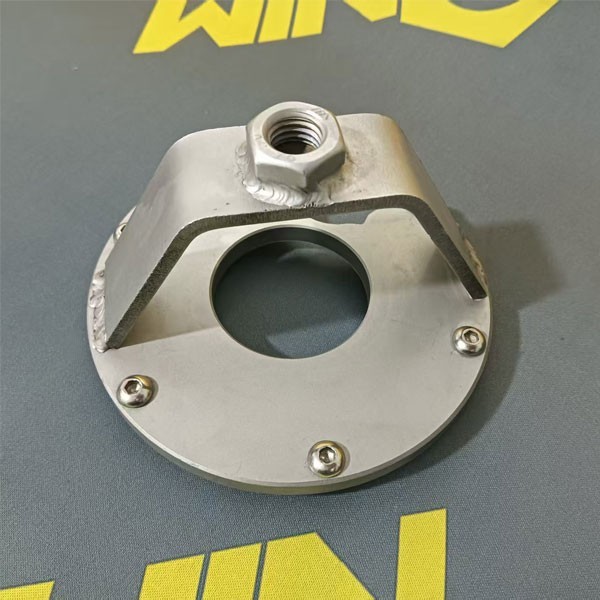

Product Name: Intensifier End Cap Torque Tool / Hard Seal End Cap (HSEC) Wrench (Part No. 301041-1)

Description:
This component is a specialized torque tool (specifically a pin spanner or face spanner wrench) designed for the installation and removal of the Hard Seal End Cap (HSEC) on high-pressure waterjet intensifier pumps . It is a precision-machined tool, typically manufactured from hardened alloy steel with a corrosion-resistant coating, engineered to provide the exact grip and leverage required to safely service end caps rated for pressures up to 60,000 PSI (approximately 4,137 bar) .

The primary function of this tool is to engage the pin holes or slots on the end cap, allowing technicians to apply the correct torque during reassembly. This ensures a leak-free metal-to-metal seal between the end cap and the sealing head while preventing damage to the critical threads and sealing surfaces of the high-pressure cylinder assembly . Using this specialized tool, rather than improvised methods, helps maintain proper plunger alignment, reduces high-pressure seal wear, and minimizes maintenance downtime .

Applications:

• Used for removing and tightening the Hard Seal End Cap (HSEC) on 60,000 PSI waterjet intensifier pumps .

• Applicable during major pump overhaul, high-pressure seal replacement, or check valve servicing .

• Essential for aligning the sealing head within the high-pressure cylinder to prevent premature seal failure .

Features:

• Precision Fit: Machined to exact tolerances to prevent slipping, which protects the end cap pin holes from damage .

• High Durability: Constructed from heat-treated alloy steel to withstand the high torque required for 60K system assembly .

• Ergonomic Design: Designed to provide stable leverage, allowing the technician to apply hand force and "light taps" without over-torquing the assembly .

Maintenance:

Inspection:

• Visual Check: Regularly inspect the tool’s drive pins for wear, bending, or cracking. Worn pins can damage the end cap.

• Handle Integrity: Check the handle for signs of bending or fatigue cracks.

Usage Procedure:

1. Preparation: Apply anti-seize compound (e.g., Molygrease) to the jackbolts and sealing head threads to ensure accurate torque transfer .

2. Removal: Position the tool's pins in the end cap holes. Turn counter-clockwise to break the end cap loose; tapping the wrench handle with a plastic mallet may be required if the seal is seized .

3. Installation: Screw the end cap on clockwise by hand until it bottoms out. Use the tool to tighten it with hand force, finishing with a single light tap on the wrench handle.

4. Torque Caution: Do not use a cheater bar or excessive force. The tool is designed to apply hand-tight torque plus a light tap. Over-torquing can damage the threads or distort the metal-to-metal cone seal, leading to leaks .

5. Full Depressurization: Always lock out the main power, bleed high-pressure lines, and turn off low-pressure water before using this tool on the intensifier .
