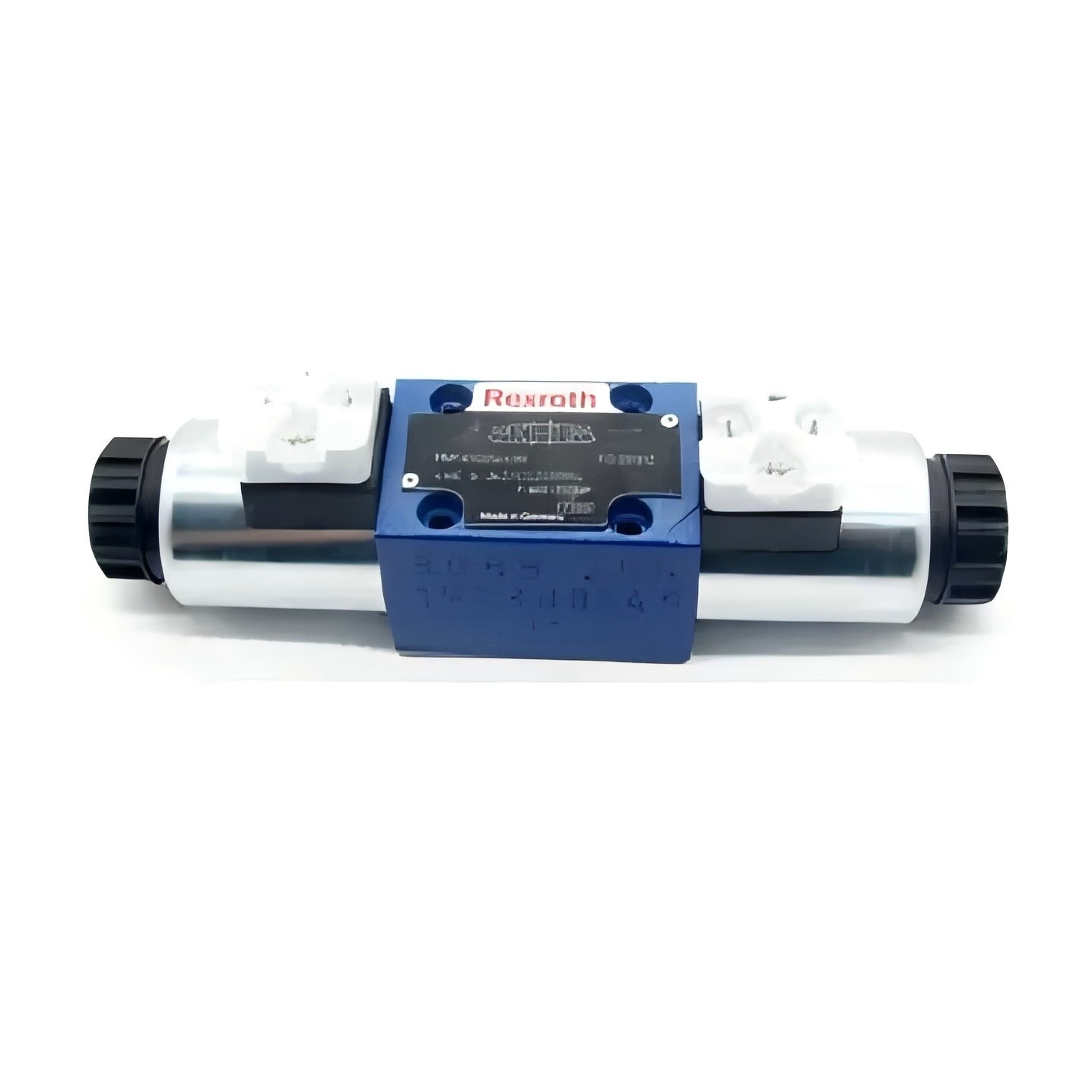

Product ID: 05017553 – Pilot Valve

Description:
This component is a pilot valve designed for waterjet cutting systems. It serves as a control element that uses a small pilot pressure to actuate a larger main valve, enabling precise regulation of high-pressure water flow.

Applications:

• Used in waterjet cutting machines to control the main on/off valve for the cutting jet.

• Installed within the high-pressure hydraulic or water circuit to remotely and safely initiate system operation.

• Suitable for both pure water and abrasive waterjet systems requiring proportional or discrete flow control.

Features:

• Compact solenoid or hydraulically actuated design for low power consumption.

• Capable of handling lower pilot pressures while controlling very high main line pressures.

• Fast switching response for precise jet timing and piercing control.

• Constructed with corrosion-resistant materials compatible with water and mild abrasives.

Maintenance:

• Inspect electrical connections (if solenoid-operated) for wear or moisture ingress.

• Check pilot ports and small orifices for blockage caused by debris or scale; clean with low-pressure air or water.

• Replace pilot valve seals and gaskets at recommended intervals or if leakage occurs at the pilot exhaust vent.

• Verify proper pilot pressure supply per system specifications before troubleshooting main valve issues.

• Always depressurize the complete waterjet system and disconnect power before removing or servicing the pilot valve.
