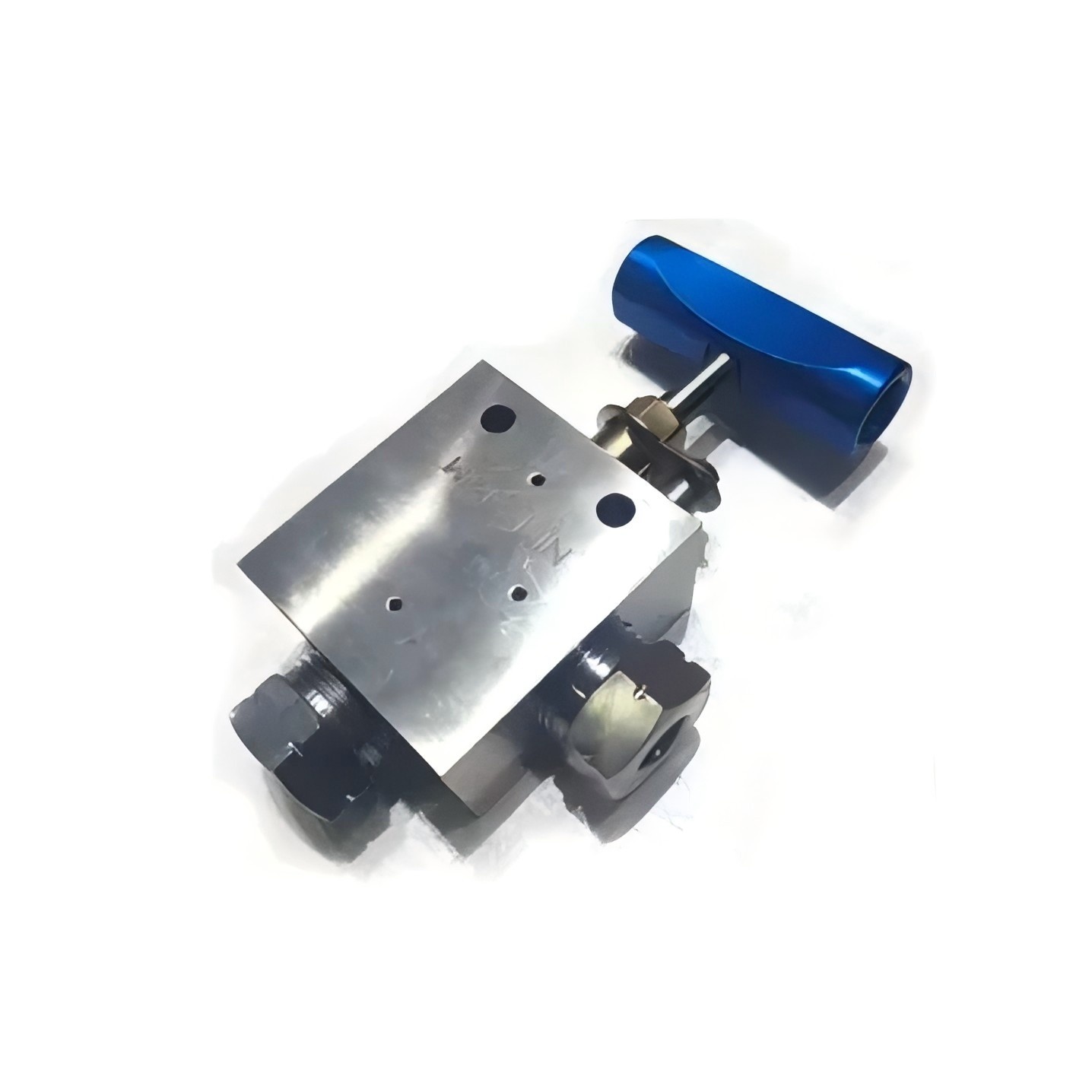

Product ID: 916 – Two-Way Angle Valve

Description:
This component is a two-way angle valve designed for waterjet cutting systems. It controls the on/off flow of high-pressure water or abrasive slurry at a 90‑degree angle, redirecting flow direction within the cutting head or high-pressure piping.

Applications:

• Used in waterjet cutting machines to start and stop the cutting jet precisely.

• Commonly installed near the cutting head for rapid pressure discharge or jet activation.

• Suitable for both pure water and abrasive waterjet systems.

Features:

• Compact right‑angle design allows installation in space‑constrained areas.

• Engineered to withstand ultra‑high pressure, typically up to 6,000 bar (87,000 psi) or as per system rating.

• Fast response time for accurate jet control during piercing and cutting.

• Sealing components are made from advanced wear‑resistant and high‑pressure resistant materials.

Maintenance:

• Periodically check for external leakage around the valve body and stem.

• Inspect internal seals for wear or extrusion; replace seals at recommended intervals or when valve fails to close completely.

• Clean the valve interior with low‑pressure water when disassembled; avoid abrasive cleaning tools.

• Ensure proper torque on all connections to prevent high‑pressure leaks.

• Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures.
