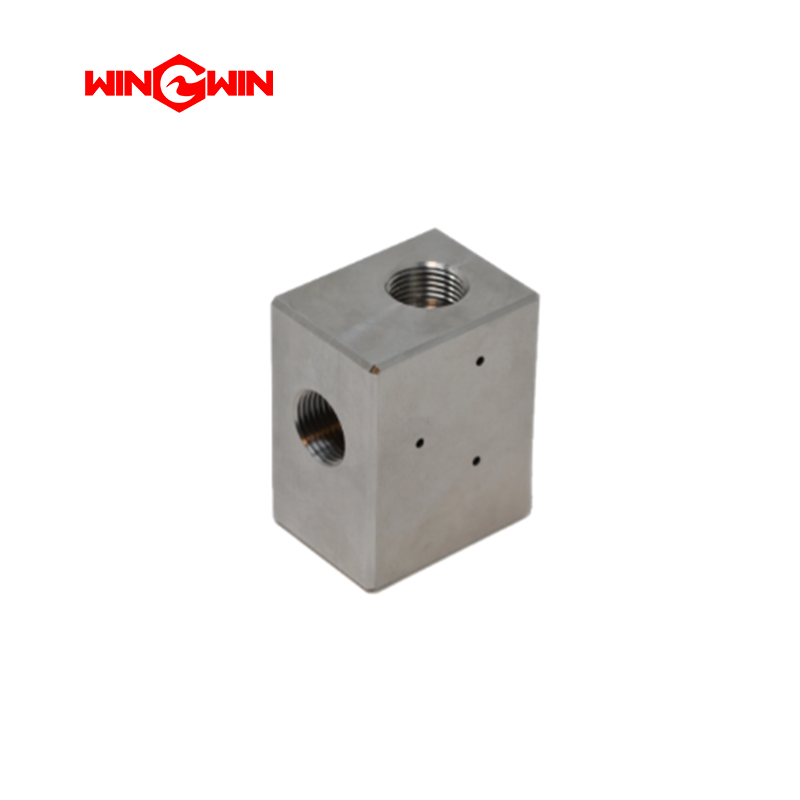

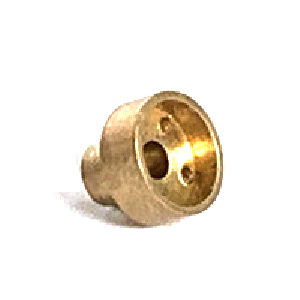

Product ID: 10189181 – Pneumatic Valve Body

Description:
This component is a pneumatic valve body, specifically a square-type body designed for use in the pneumatic on/off valve assembly of high-pressure waterjet cutting systems . It serves as the central fluid passage housing within the valve, directing high-pressure water flow when actuated by the pneumatic actuator. The valve body is rated for ultra-high pressure operation and is a critical component for controlling the start and stop of the cutting jet . This valve body is typically configured as a normally closed (NC) valve, meaning it remains closed when no pneumatic pressure is applied .

Alternative or cross-reference part numbers include 1-11320 and AccuValve equivalents . The component has an approximate weight of 0.6–0.7 kg  and is manufactured from stainless steel . The size dimensions are approximately standard (length × width × height) as specified by OEM .

Applications:

• Used as the central flow control body in the pneumatic on/off valve assembly for waterjet cutting systems.

• Installed in the high-pressure water line between the pump outlet and the cutting head to control water flow.

• Suitable for both pure water cutting applications and as part of larger waterjet systems .

• Compatible with 60,000 PSI (approximately 4,137 bar) intensifier pumps, including SL intensifier assemblies .

• Used in waterjet robotic cutting systems, automotive interior cutting, 3-axis and 5-axis waterjet machines, shipbuilding, and aerospace industries .

Features:

• Stainless Steel Construction: Manufactured from high-grade stainless steel for excellent corrosion resistance and durability in waterjet environments .

• Ultra-High Pressure Rating: Rated for continuous operation at 60,000 PSI (approximately 4,137 bar) .

• Square Body Design: Features a square-type body configuration for secure mounting and compatibility with standard pneumatic actuators .

• Precision-Machined: Manufactured using CNC machining with high dimensional accuracy, including high-pressure port threading and sealing surfaces .

• Supply Port Options: The supply port is typically 3/8 inch HP connection. For 1/4 inch HP connection requirements, use adapter 49864283 or 20454363 if a filter is needed at that port .

• High Fatigue Resistance: Engineered with heat treatment processes and high-pressure bore mirror finishing to resist metal fatigue under continuous pressure cycling .

• Long Service Life: Designed as a durable component with extended operational lifespan .

Maintenance:

• Inspection: During valve overhaul or preventive maintenance, inspect the valve body for signs of cracking, corrosion, pitting, erosion, or thread damage. Pay particular attention to internal flow passages and sealing surfaces.

• Thread Inspection: Check all threaded connections (supply and outlet ports) for signs of wear, galling, or deformation. Damaged threads can cause high-pressure leaks.

• Internal Passage Cleaning: Clean the internal flow passages thoroughly using low-pressure water and a soft brush. Remove all debris, mineral deposits, or old seal residue that could restrict flow or damage downstream components.

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before removing or servicing the pneumatic valve body.

• Torque Compliance: When reinstalling, tighten all connections to the specific torque values listed in the equipment service manual. Over-tightening may damage threads; under-tightening may cause high-pressure leaks.

• Thread Lubrication: Apply manufacturer-recommended high-pressure thread lubricant or anti-seize compound to all threads during reassembly to prevent galling and ensure accurate torque application.

• O-Ring Replacement: Always replace all O-rings and seals associated with the valve body during each service. Do not reuse old sealing components.

• Replacement Criteria: Replace the valve body if cracks, severe corrosion, internal erosion, or thread damage is detected. Do not attempt to repair a cracked or severely eroded valve body.

• Actuator Compatibility: The valve body is designed to work with compatible pneumatic actuator assemblies (e.g., 10177855) . Verify compatibility before installation.

• Component Set: When servicing the complete valve assembly, replace the valve stem (20435636), valve seat (10178697), seal assembly (20428052), and brass backup ring (10188233) together with the valve body as needed .
