High-Pressure Fitting and Valve Assembly for Water Jet Cutting Machine Parts – Bulkhead Coupling, 56 x 56, Female-to-Female, Model No. 10079705-High-Pressure-Fitting-and-Valve-Assemblies-Bulkhead-Coupling-56-x-56-FF.933.3-1

Introduction, Application, Features, and Maintenance:

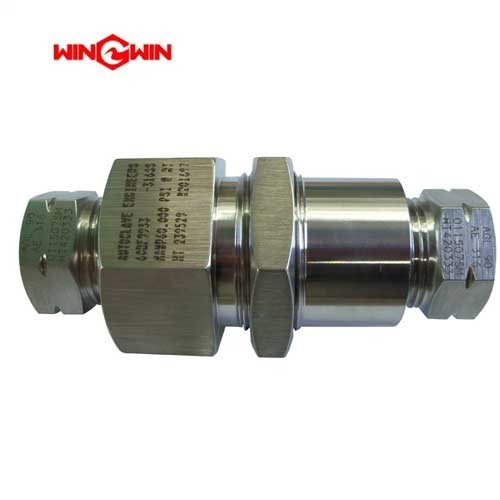

This component is a high-pressure bulkhead coupling with a female-to-female thread configuration, designed for water jet cutting systems. It passes through a panel or wall, allowing high-pressure lines to connect on both sides with 56 mm interfaces.

Application:
Used to route high-pressure water or abrasive slurry through machine enclosures, bulkheads, or protective panels in water jet cutting machines. It enables secure connections from outside to inside, or between isolated compartments.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Female-to-female (FF) configuration accepts male-threaded fittings on both ends.

• Bulkhead design includes a mounting flange or shoulder for panel installation.

• Both ports feature identical 56 mm interfaces for straight-through flow.

• Manufactured from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Provides strain relief and seals the panel opening against leakage.

Maintenance:

• Regularly inspect the coupling body, both female threads, and sealing surfaces for signs of erosion, cracking, or thread damage.

• Check the bulkhead mounting area for signs of loosening or panel deformation.

• Examine both connection ends for high-pressure leakage during operation.

• Replace immediately if any surface pitting, thread damage, or pressure loss is detected.

• Verify that panel seals are intact to prevent external leakage.

• Follow specified torque values when tightening both ends.
