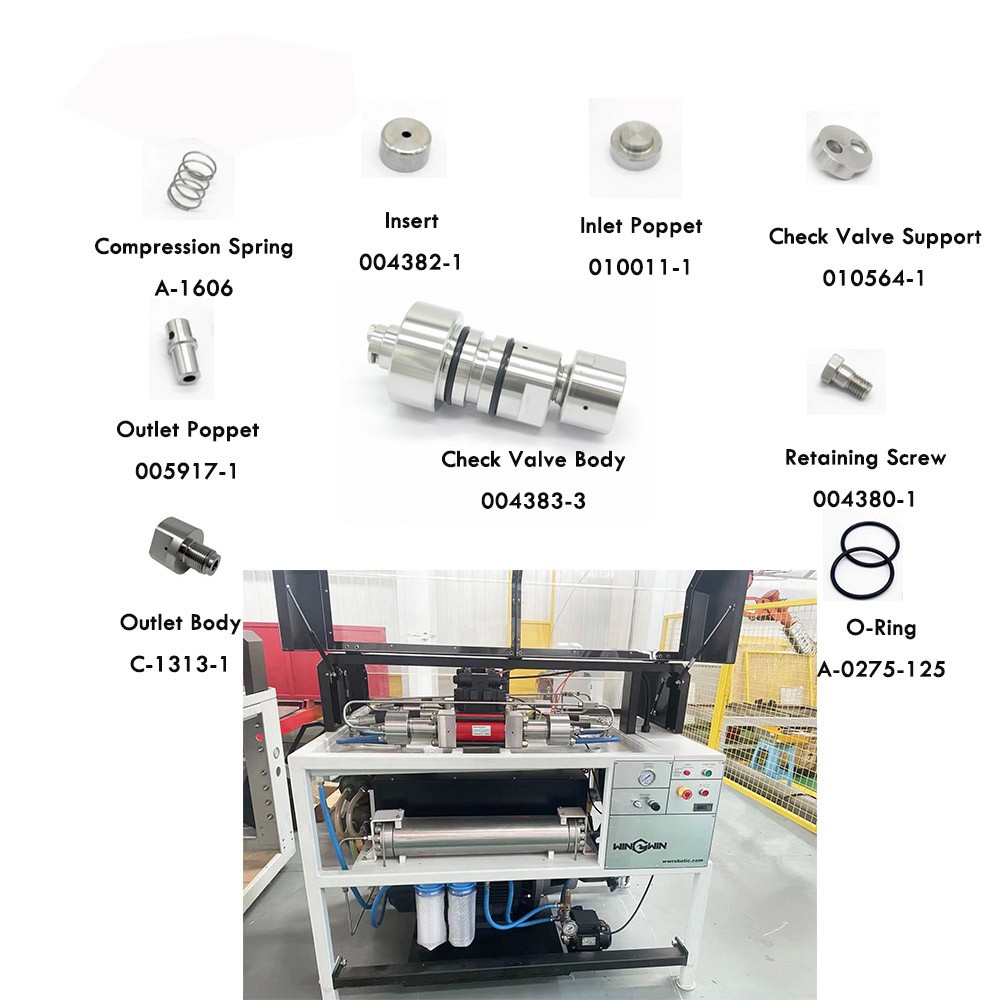

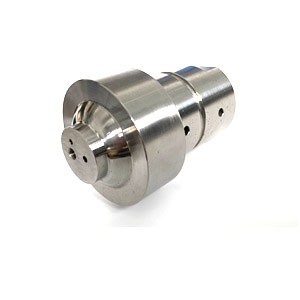

020077 Check Valve Body

Short Description:

020077 Check Valve Body is used for FLOW 60K pump.

We offer the complete range of FLOW-certified parts – from high-pressure seals to precision cutting heads.
Everything is guaranteed for perfect compatibility with your equipment and consistent performance.
Maximum system lifespan, minimal risk of downtime – that's the long-term added value we offer.

INQUIRY

Details



More precise: Preserve the material's inherent qualities and manufacture complex geometries.

More powerful: Effortlessly handles hard and delicate materials.

More reliable: Original equipment and parts ensure a continuous production flow.

More economical: Less waste, higher efficiency, and optimized total costs.

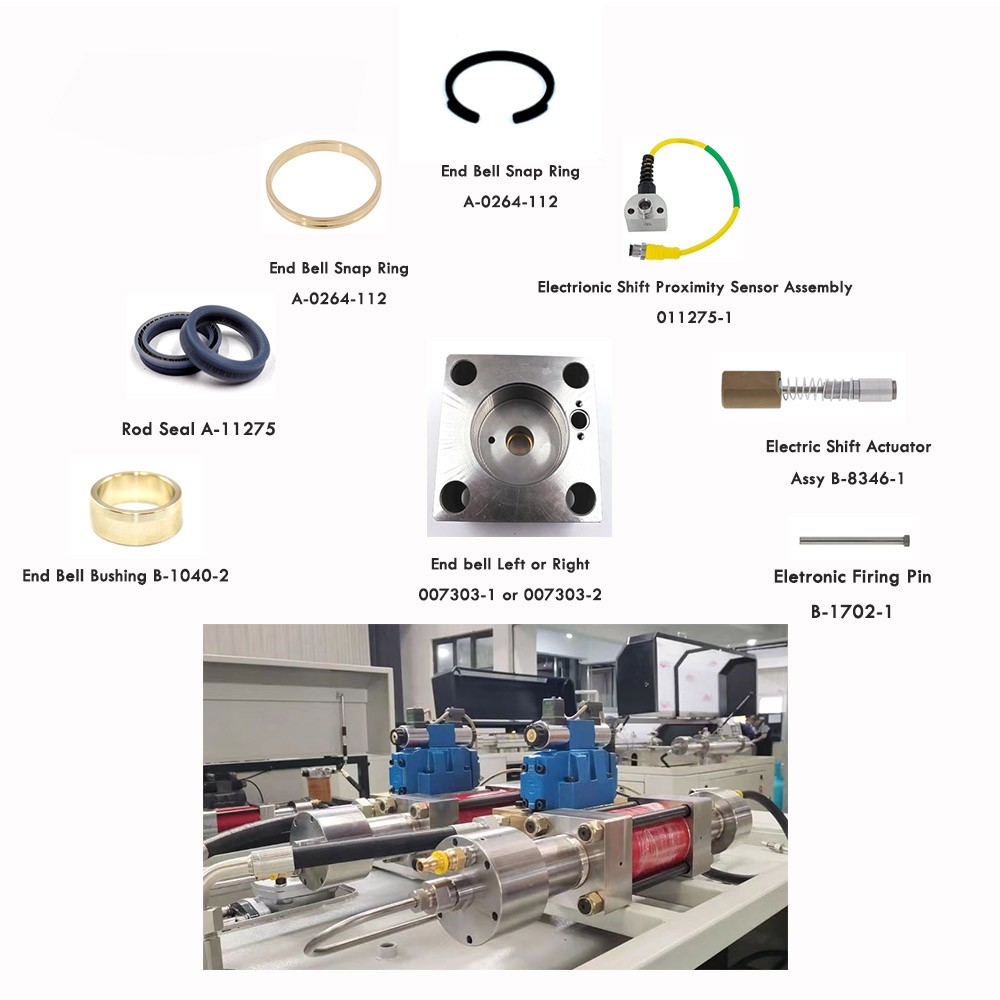

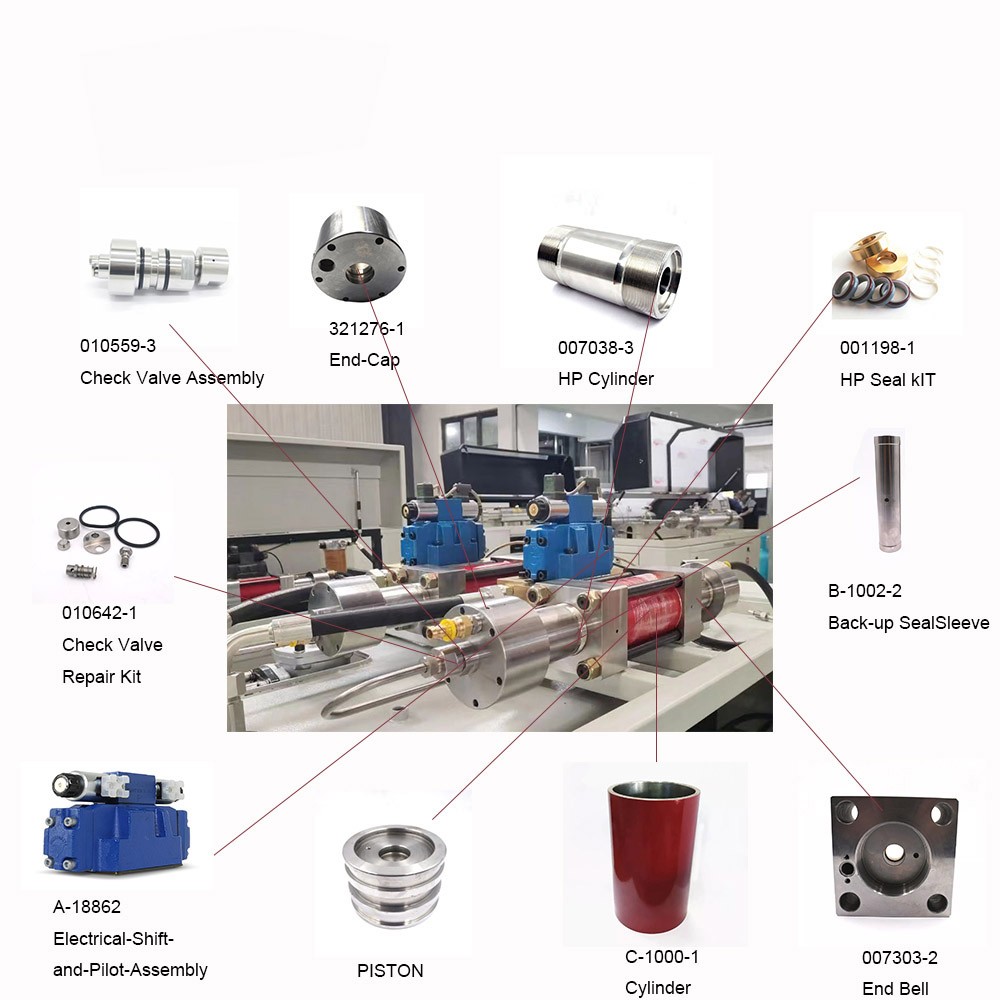

Item	Part Number	Description	Item	Part Number	Description
1	010561-1	Piston assy	15	A-2838	High-pressure gland
2	010559-3	Check valve assy	16	A-2839	High-pressure collar
3	007038-3	Cylinder end	17	A-4689	AR Food grade grease*
4	007303-2	End bell assy	18	B-1000-2	Tie rod
5	007303-1	End bell assy	19	C-1000-1	Low-pressure cylinder
6	B-1465-1	Seal ring	20	321276	End cap
7	B-1002-2	Seal backup sleeve	21	A-00633-023	O-ring
8	A-11275	Rod seal	22	A-0275-240	O-ring
9	A-0264-112	Snap ring	23	A-00250-240	Back up ring
10	010276-1	Oil seal spacer	24	A-1000	Hex nut
11	004406-1	High-pressure seal	25	010640-1	Label
12	004407-1	Hoop seal	26	004345-1	Quick coupling nipple
13	B-8075-119	Ultra HP o-ring	27	A-0274-6	O-ring
14	A-1001	Poly pak seal	28	A-2185-2	AR High-friction lubricant
