Product ID: 05074380 – Plunger Retainer Pin

Description:
This component is a plunger retainer pin designed for high-pressure intensifier pumps in waterjet cutting systems. It is a precision-engineered cylindrical pin that secures and aligns the ceramic plunger assembly within the hydraulic piston of the intensifier pump. This pin is an essential component for maintaining proper plunger positioning during reciprocating motion under extreme pressure cycles .

Applications:

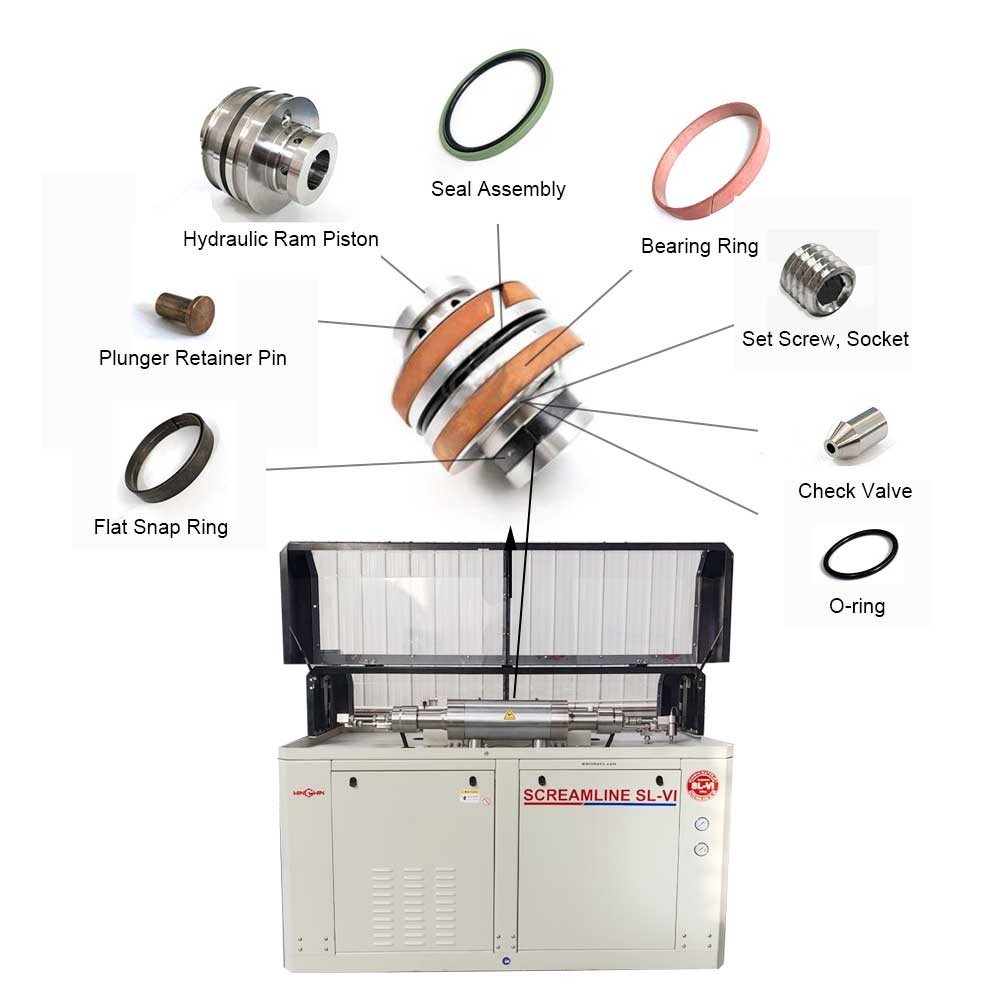

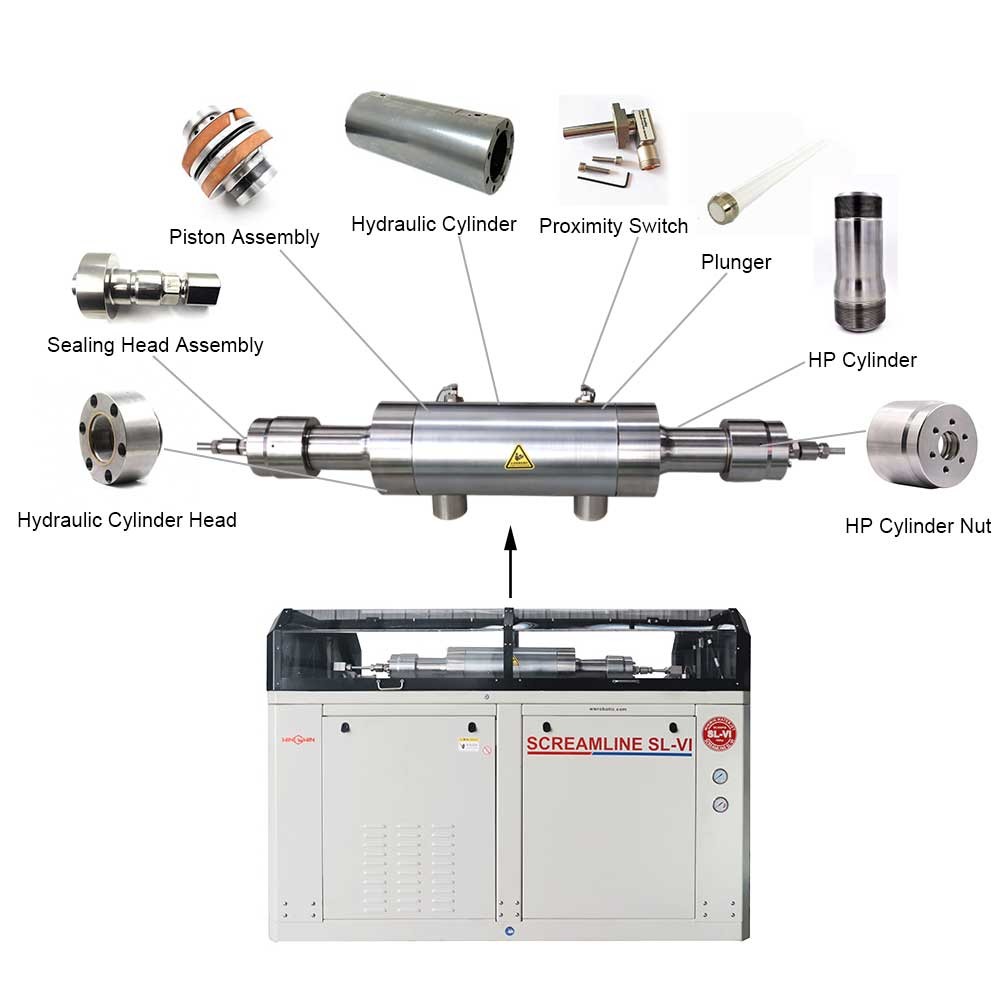

• Used in waterjet intensifier pumps to fix the plunger assembly to the hydraulic piston, ensuring consistent alignment during high-pressure operation .

• Installed in the plunger socket or button assembly; multiple retainer pins (typically six) work together to grip the plunger button and hold the plunger in place .

• Suitable for 100HP waterjet intensifier pumps and compatible with standard intensifier systems requiring plunger retention functionality .

Features:

• Manufactured from high-strength, hardened stainless steel or alloy steel to provide exceptional wear resistance, corrosion protection, and durability under extreme high-pressure and high-frequency cycling conditions .

• CNC-machined to tight tolerances for a precise fit within the plunger socket pin holes .

• Prevents unwanted plunger movement, vibration, and misalignment under operating pressures, reducing seal wear and hydraulic instability .

• Functions as part of a retention system that includes the retainer pin, a retaining spring, and flat snap rings to secure the plunger .

• Engineered to withstand continuous pressure cycling without deformation or fatigue failure.

Maintenance:

• During pump overhaul or plunger replacement, fully depressurize the waterjet system and follow lockout/tagout procedures before servicing .

• Remove the flat snap rings from both ends of the piston to access and extract the plunger retainer pins .

• Inspect each retainer pin for unusual wear, deformation, cracking, or corrosion. Clean the pin holes and inspect for wear, deformation, or hole enlargement .

• Verify that each pin moves freely within its pin hole without excess side play during reinstallation .

• Replace any pin that shows signs of damage, wear, or deformation. The small size and critical function of this component necessitate replacement rather than repair if damaged .

• When reinstalling, ensure all six pins (or the designated quantity) are equally extended to grip the plunger button uniformly, confirming proper plunger attachment .

• During plunger removal, use the appropriate plunger removal tool to retract the pins and release the plunger from the socket .

• Apply manufacturer-recommended grease to related components (such as backup rings and O-rings in the plunger socket) before reinstalling the pins .

• Replace the plunger retainer pin as part of scheduled preventive maintenance during complete intensifier pump rebuilds to ensure optimal system reliability .
