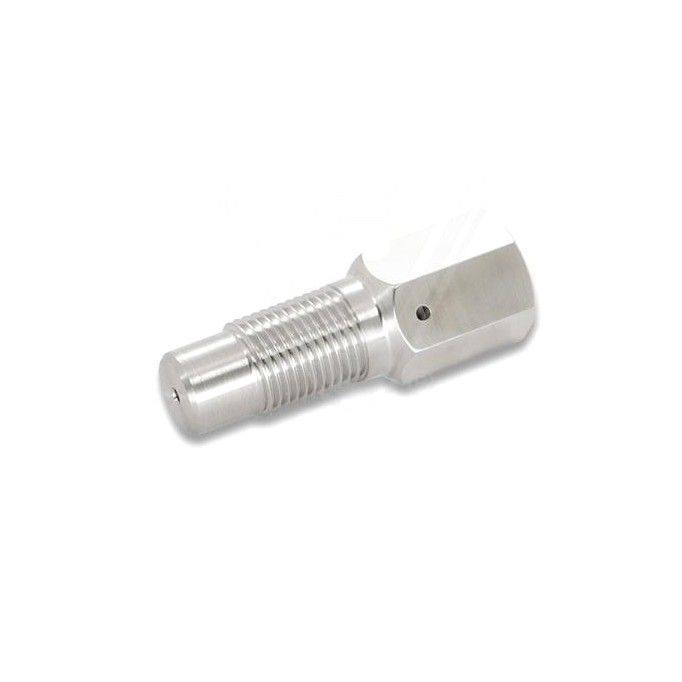

20451557 UHP adapter
The company is a world-leading manufacturer of high-pressure water jet pumps.
The 90K series is an extremely classic and popular industrial high-pressure pump, known for its reliability, durability, and powerful functionality.
As a manufacturer with 25 years of experience in waterjet cutting, we know that downtime causes losses that are difficult to compensate for.
Therefore, we offer original accessories and professional technical support to minimize unexpected downtime and the resulting losses for our customers.

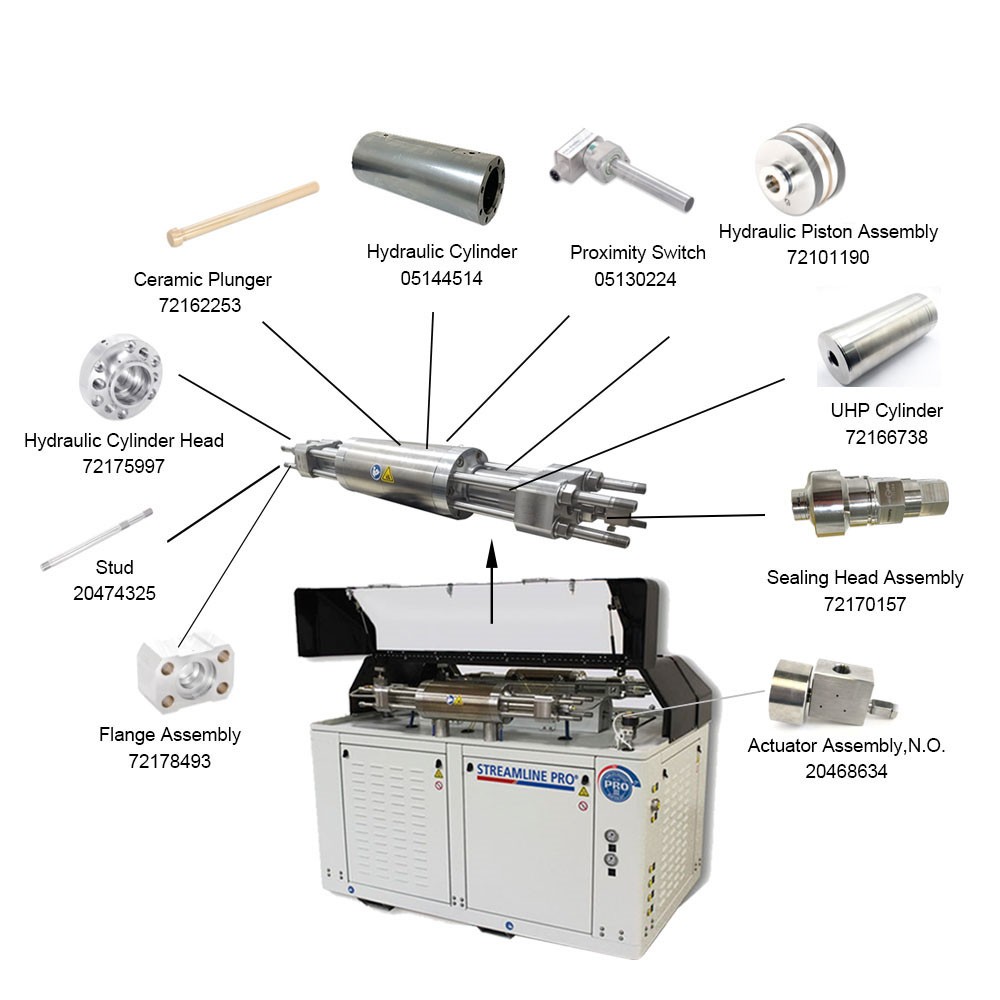

Item | Part Number | Description | Item | Part Number | Description |
1 | 05144514 | Hydraulic Cylinder | 21 | 0503498 | Retaining Ring |
2 | 05130224 | Proximity Switch | 22 | 20464590 | Flat Washer, 1.13 |
3 | 72101190 | Hydraulic Piston Assembly | 23 | 72158494 | UHP Seal Assembly |
4 | 72166738 | UHP Cylinder | 24 | 05130091 | Hydraulic Seal Cartidge |
5 | 72170157 | Sealing Head Assembly | 25 | 05097886 | Socket Head Screw |
6 | 20468634 | Actuator Assembly | 26 | 72163802 | Liner |
7 | 72178493 | Flange Assembly | 27 | 72176756 | O-ring |
8 | 20474325 | Stud | 28 | 20492123 | Retaining Ring |
9 | 72175997 | Hydraulic Cylinder Head | 29 | 20492131 | Dowel Pin |
10 | 72162253 | Ceramic Plunger | 30 | 10085371 | Ball |
11 | 20476377 | Support Topworks | 31 | 72165539 | Sealing Head Body |
12 | 20455812 | UHP Tee Assembly | 32 | 72101570 | Seat |
13 | 20468617 | Valve Body | 33 | 05116561 | Discharge Poppet Valve |
14 | 10178697 | Valve Seat | 34 | 05147863 | Compression Spring |
15 | 20451557 | UHP Adapter | 35 | 05116751 | Poppet Pin |
16 | 20452962 & 20452959 | Gland and Collar | 36 | 20481660 | Gland |
17 | 20475878 | Valve Stem | 37 | 49833114 | Seal Positioning Tool |
18 | 20475882 | Backup Ring | 38 | 20470413 | Seal Push Tool |
19 | 20475874 | Backup Ring, Brass | 39 | 20470417 | Seal Installation Tool |
20 | 72112069 | Seal Assembly | 40 | 05067350 | Seal Positioning Tool |
