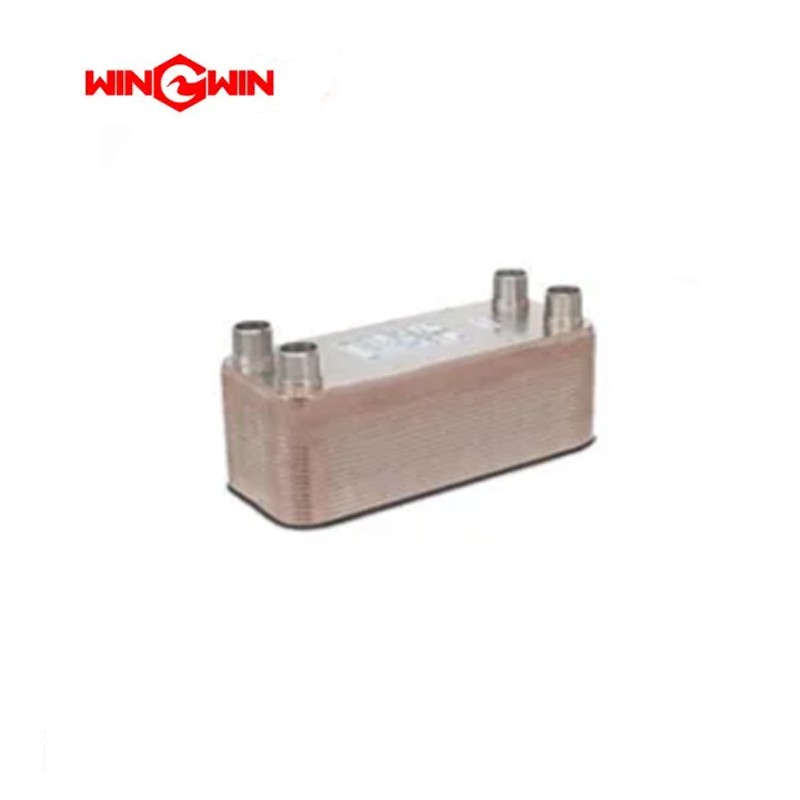

Product Name: Oil/Water Heat Exchanger (Part No. 05145958)

Description:
This component is a plate-type heat exchanger specifically designed for the hydraulic system of high-pressure waterjet cutting pumps . It is a core component of the Oil/Water Heat Exchanger Kit (Assembly 72156272), where it is listed as Item 1 with a quantity of 1 per assembly . This device is engineered to maintain the hydraulic oil at an optimal operating temperature by transferring excess heat to a separate cooling water circuit.

The heat exchanger utilizes a flat plate design, which provides efficient heat transfer in a compact package . As hot hydraulic oil circulates through one set of passages and cool water flows through the other, thermal energy is transferred from the oil to the water without the two fluids mixing. This helps prevent overheating, maintains proper oil viscosity, and protects seals, pumps, and valves from thermal degradation .

Applications:

• Regulates hydraulic oil temperature in waterjet intensifier pump assemblies

• Installed in the hydraulic return line between the intensifier and the reservoir as part of the cooling circuit

• Used with a water modulating valve that controls water flow to maintain precise oil temperature

• Suitable for closed-loop chiller circuits or open-loop tap water cooling systems

• Compatible with SL-IV, SL-V, and other standard waterjet hydraulic systems

Features:

• Counter-Flow Design: Cooling water enters the port nearest the hydraulic oil outlet, maximizing thermal transfer efficiency

• Compact Plate Construction: High surface area in a small footprint for efficient cooling in space-constrained installations

• Corrosion-Resistant Materials: Wetted parts designed to withstand water and hydraulic fluid exposure in industrial environments

• High Thermal Capacity: Engineered to meet the cooling demands of intensifier pumps operating at 60,000-94,000 PSI

• Low Maintenance: Plate-type design minimizes fouling and simplifies cleaning compared to shell-and-tube designs

Maintenance:

Common Issues and Diagnosis:

• Overheating / Poor Cooling Performance: The most common symptom. Often caused by restricted cooling water flow, scale buildup inside the water passages, or a failed water modulating valve .

• Restricted Water Passages: Over time, rust, mineral scale, or debris can partially block the water side of the heat exchanger, reducing heat transfer efficiency. Back-flushing the water circuit can often correct this problem .

• External Leakage: Water or hydraulic oil weeping from the heat exchanger body indicates seal or gasket failure.

• Oil Contamination (Milky Oil): If the hydraulic oil appears milky, the heat exchanger has likely developed an internal leak, allowing water to mix with the oil. The unit must be replaced immediately.

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, lock out the main electrical disconnect, fully depressurize the high-pressure water system and the hydraulic system, and follow lockout/tagout procedures.

• Inspect for Blockage: Check the water inlet strainer and the water modulating valve (Item 2 in the kit) for clogs or debris .

• Clean Water Passages: If scale or debris is suspected, back-flush the heat exchanger by reversing the water flow direction. For stubborn scale, a chemical descaling solution approved for the heat exchanger's materials may be used . Regular water treatment and filtration can prevent scale buildup .

• Test for Internal Leak: Disconnect the water and oil lines. Pressurize the water side with low-pressure air (max 10 bar / 150 psig) while observing the oil ports for bubbles, which would indicate a leak.

• Torque Compliance: When reinstalling, tighten all hydraulic and water line connections to the specific torque values listed in the equipment service manual.

• Replacement: If the heat exchanger is leaking internally or is severely clogged beyond cleaning, it must be replaced as a complete assembly.

Cross-Reference Information:

• OEM Part Number: 05145958

• Part of Assembly: Oil/Water Heat Exchanger Kit 72156272 (Item 1)

• Used with: Water Solenoid Valve (72153174), various JIC and ORB adapters, hydraulic hoses (20456208, 20468826), and push-on hose (20421272)

• Cooling Capacity: Designed to meet the requirements of 30-100 HP waterjet intensifier systems
