20470413 seal push tool
The company is a world-leading manufacturer of high-pressure water jet pumps.
The SL-VI 100HP pump is an extremely classic and popular industrial high-pressure pump, known for its reliability, durability, and powerful functionality.
As a manufacturer with 25 years of experience in waterjet cutting, we know that downtime causes losses that are difficult to compensate for.
Therefore, we offer original accessories and professional technical support to minimize unexpected downtime and the resulting losses for our customers.

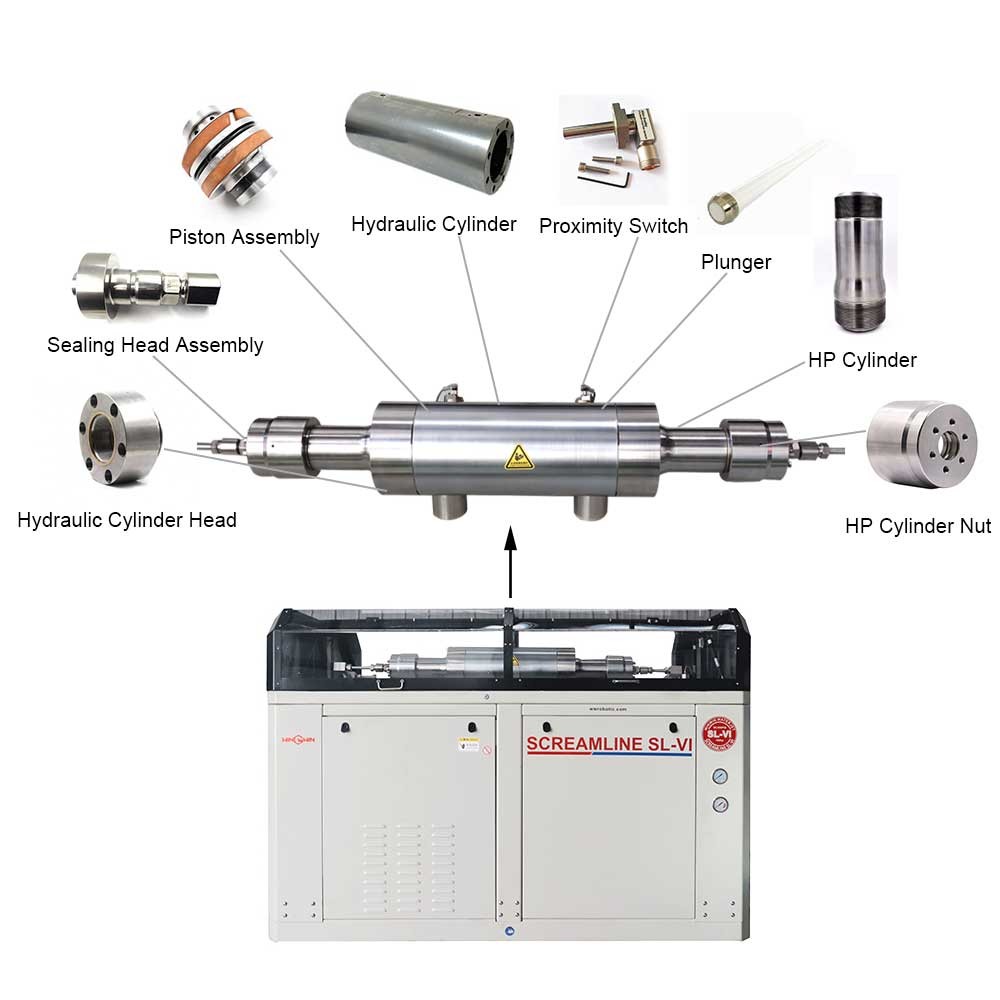

Item | Part | Description | Item | Part | Description |
1 | 72119536 | HP Cylinder | 16 | 05120092 | Backup Ring, 5.25 x 5.50 |
2 | 05144506 | Ceramic Plunger | 17 | 10074771 | O-Ring, 5.25 x 5.50 x .13 |
3 | 72110979 | Sealing Head Assembly | 18 | 20413955 | Socket Head Screw, 3/4-16 x 3-1/4 |
4 | 20416445 | Hydraulic Cylinder Head | 19 | 05130224 | Proximity Switch, 20-250V AC/DC |
5 | 05149711 | HP Seal Assembly | 20 | 95119012 | Socket Head Screw, 1/4 x 20 x 1 |
7 | 49838220 | HP Cylinder Nut, HSEC | 21 | 05146576 | Piston Assembly |
8 | 05146584 | Hydraulic Cartridge Seal Assembly | 23 | 05144522 | Topworks Support |
9 | 05145099 | Bushing Retainer Flange | 25 | 05041058 | Socket Head Screw, 3/8-16 x 2-1/4 |
11 | 72110945 | Liner, HP Cylinder | 26 | 95688743 | Lock Washer, .38 |
12 | 10074920 | O-Ring, 1.75 x .94 x .09 | 27 | 10118206 | O-Ring, 1.31 x 1.56 x .13 |
13 | 80070352 | Jackbolt, 7/16-20 x 2.31 | 28 | 05144183 | Spacer Assembly, Proximity Switch |
14 | 05034798 | Retaining Ring | 05144191 | O-Ring, .69 x .88 x .09 | |
15 | 05144514 | Hydraulic Cylinder | 29 | 05146592 | Gasket, Topworks Support |
