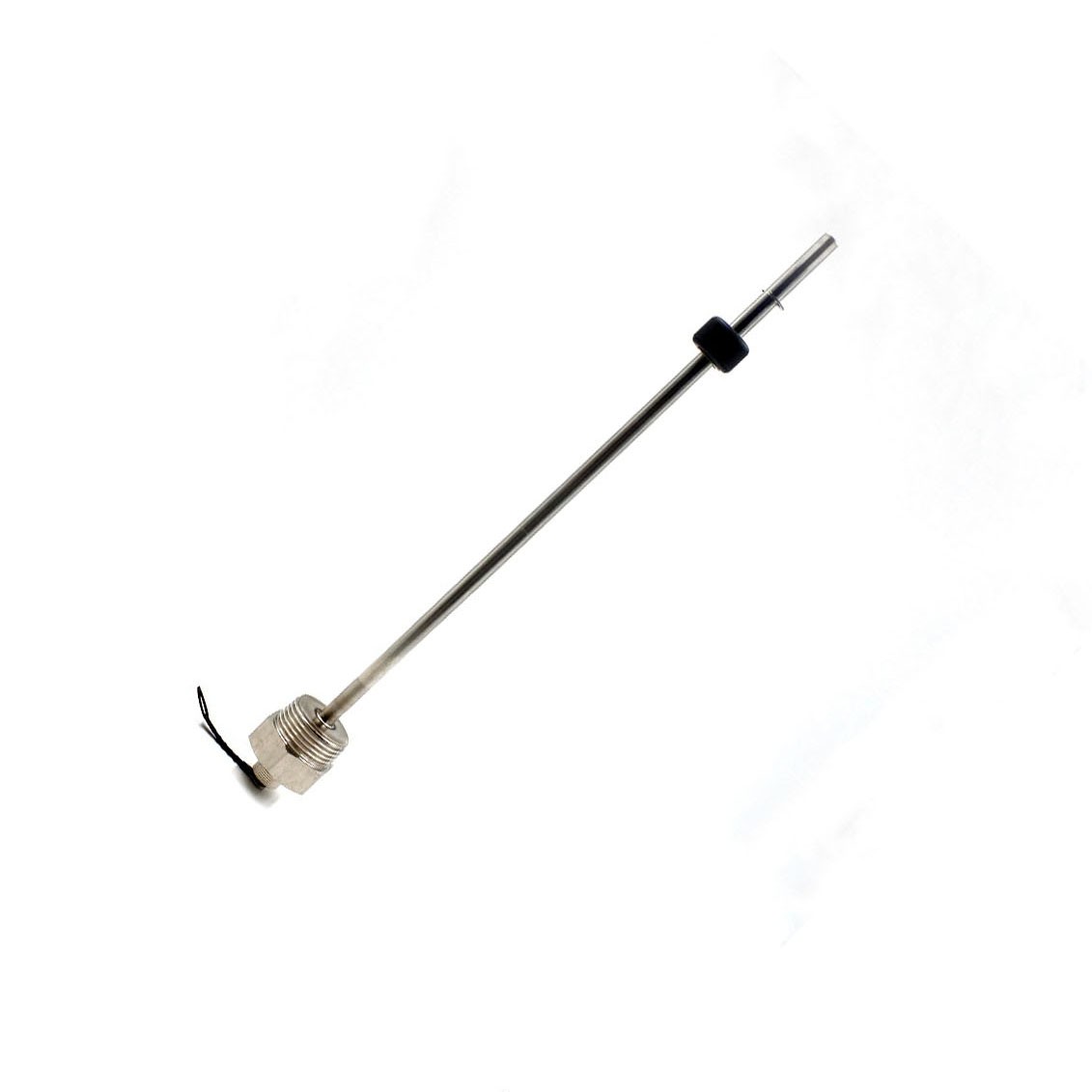

Product ID: 05050026 – Temperature Switch (Thermal Sensor for Waterjet Intensifier)

Description:
This component is a temperature switch, also known as a temperature sensor or thermal switch, designed for waterjet cutting systems . It is an electrical monitoring device that detects temperature changes in the hydraulic system or intensifier pump assembly. When the system temperature exceeds a preset threshold, the switch triggers an alarm or shuts down the equipment to prevent overheating damage.

Applications:

• Used in waterjet intensifier pumps and hydraulic power units to monitor operating temperature

• Installed in the hydraulic oil circuit or on the pump housing to detect excessive heat buildup

• Suitable for JETLINE robotic intensifier pumps and other waterjet cutting systems

Features:

• Temperature Monitoring: Continuously senses system temperature and provides electrical switching at a preset threshold

• Overheat Protection: Triggers alarm or shutdown to prevent damage from excessive operating temperatures

• Robust Construction: Designed for industrial waterjet environments with exposure to hydraulic fluids and vibration

• Precision Calibration: Factory-set switching point for reliable thermal protection

Maintenance:

• Periodic Testing: Verify switch operation by comparing temperature readings with a calibrated thermometer during scheduled maintenance

• Electrical Check: Inspect wiring connections for corrosion, looseness, or damage; ensure proper electrical continuity

• Cleaning: Keep sensor probe and mounting area clean of hydraulic oil residue and abrasive dust

• Replacement Criteria: Replace if the switch fails to activate at the specified temperature, if it remains stuck in alarm state, or if the probe is physically damaged

• Full Depressurization: Always fully depressurize the hydraulic system and high-pressure water system before removing or replacing the temperature switch. Follow lockout/tagout procedures

• Thread Sealant: When installing, apply appropriate thread sealant to the probe threads to prevent hydraulic fluid leakage
