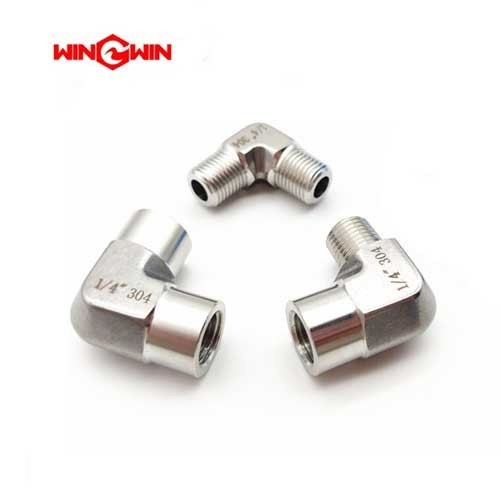

Product Name: Adapter, Pipe/Solenoid Valve (Part No. 7215853)

Description:
This component is a pipe-to-solenoid valve adapter, specifically designed to serve as the connecting interface between a solenoid valve and the piping system in a waterjet cutting unit . According to the official parts diagram for the Oil/Water Heat Exchanger Kit (Assembly 72156272), this adapter is listed as Item 20 with a quantity of 2 required per assembly .

The adapter provides the mechanical and fluid connection that allows a solenoid valve to be integrated into the hydraulic or water circulation circuit. As a key component of the thermal management system, it works in conjunction with the heat exchanger and solenoid valve to regulate the temperature of the hydraulic fluid or cooling water .

Applications:

• Mounts between the solenoid valve and the piping system in the Oil/Water Heat Exchanger Kit (Assembly 72156272)

• Facilitates the flow of hydraulic fluid or cooling water through the heat exchanger circuit

• Used in the thermal regulation system of waterjet cutting pumps to maintain optimal operating temperatures

• Part of the cooling circuit that protects hydraulic components from thermal degradation

Features:

• Precision Machined: Manufactured to exact OEM specifications for a secure, leak-free fit between the solenoid valve and pipe connections

• Corrosion-Resistant Construction: Made from materials suitable for exposure to water, hydraulic fluid, and the waterjet environment

• Threaded Interface: Features standard pipe threads for secure, leak-proof installation

• Direct OEM Replacement: Interchangeable with manufacturer specifications as listed in the official parts diagram

Maintenance:

Failure Diagnosis:

• External Leakage: Water or hydraulic fluid weeping from the adapter connections indicates seal failure or thread damage requiring immediate replacement

• Thread Damage: Stripped, galled, or corroded threads prevent proper tightening and sealing

• Flow Restriction: If the solenoid valve operates but flow is restricted, the adapter may be partially blocked by debris

• Corrosion: Visible rust or pitting on the adapter body compromises structural integrity

• Scheduled Inspection: Inspect adapters during routine maintenance of the heat exchanger and cooling system

Inspection and Replacement Guidelines:

• Full Depressurization (Critical): Before any maintenance, place the main electrical disconnect in the OFF position, fully depressurize both the high-pressure water system and the hydraulic system, and follow lockout/tagout procedures

• Thread Preparation: Clean all threads thoroughly with a soft brush and compatible solvent before installation

• Thread Sealant: Apply PTFE tape or pipe thread sealant to male threads to ensure a leak-proof seal

• Torque Compliance: Tighten the adapter to the specific torque value listed in the equipment service manual using a calibrated torque wrench

• Two-Wrench Method: Use two wrenches—one to counter-hold the adapter and one to tighten the nut—to prevent twisting stress on the assembly

• Inspect Solenoid Valve: When servicing the adapter, inspect the mating solenoid valve (P/N 72153174) for proper operation, coil resistance, and seal condition

• Replace if Damaged: Replace the adapter immediately if threads are damaged, the body shows visible cracking or deformation, severe corrosion is present, or persistent leakage occurs despite proper installation

• Cross-Reference Information: This adapter is part of the Oil/Water Heat Exchanger Kit (Assembly 72156272) and works with items including the heat exchanger (05145958), solenoid valve (72153174), and various hydraulic hoses and adapters
