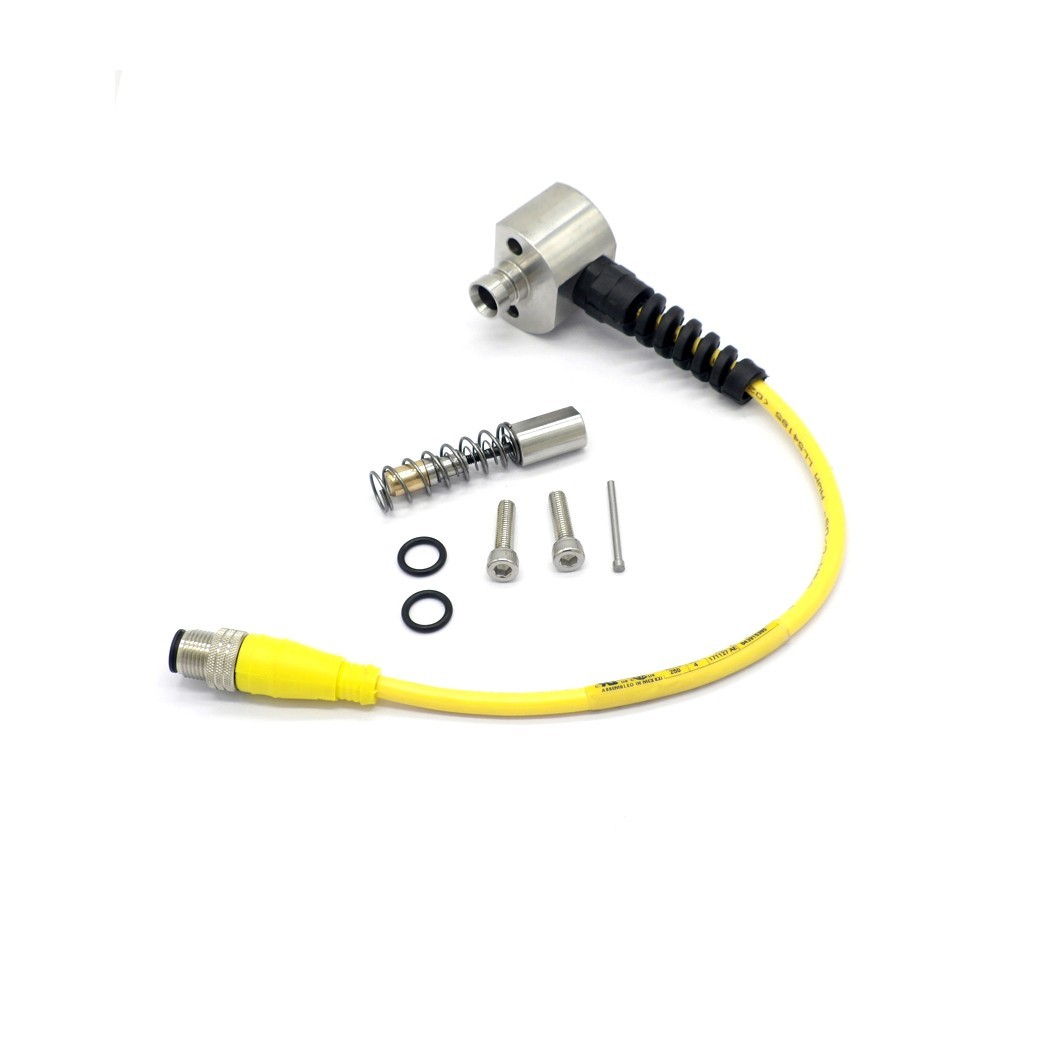

Product Name: Electronic Shift Sensor Assembly (Part No. 301011-3)

Description:
The Electronic Shift Sensor Assembly 301011-3 is a critical control component for high-pressure waterjet intensifier pumps . This assembly is responsible for monitoring the position of the intensifier piston within the hydraulic cylinder and sending electrical signals to the pump's programmable logic controller (PLC) to initiate the reversal of the piston stroke .

As the piston travels from one end of the cylinder to the other, the sensor detects the piston's proximity at the end of its stroke . It then sends a signal to the directional control valve, which reverses the flow of hydraulic fluid, causing the piston to change direction . This continuous, rapid-cycle operation is essential for generating the constant, ultra-high-pressure water flow (up to 60,000 PSI / 4,137 bar) required for precision cutting .

The assembly is designed as a direct OEM replacement part for specific waterjet intensifier models and includes the sensor, wiring harness, and connector for integration with the machine’s control system .

Applications:

• Controls the directional shifting of the hydraulic piston in waterjet intensifier pumps .

• Sends end-of-stroke position signals to the machine’s PLC for precise pump cycling .

• Ensures stable, continuous ultra-high-pressure water output for cutting operations .

• Designed for use in 60,000 PSI (4,137 bar) waterjet cutting systems .

Features:

• Precise Position Detection: Reliably senses the metallic surface of the hydraulic piston to determine stroke completion .

• Rapid Switching: Enables fast, consistent reversal of the intensifier piston for smooth pressure delivery .

• Integrated Assembly: Includes the sensor element, mounting hardware, and electrical connections in one unit .

• Visual Status Indicator: Features a built-in LED; a green light indicates power to the switch, while red indicates activation .

• OEM Replacement: Manufactured to original equipment specifications for drop-in compatibility .

Maintenance:

• Functional Testing: Periodically verify that the sensor activates correctly by observing the indicator light change from green to red as the piston strokes .

• Inspection: Check the sensor, wiring harness, and connector for signs of physical damage, wear, or corrosion during routine pump overhauls .

• Cleaning: Keep the sensor face clean and free from metallic debris or hydraulic fluid residue that could affect sensing accuracy.

• Diagnostics: If the pump fails to reverse direction or the pressure output becomes erratic, test the sensor signal. Failure to actuate may indicate a faulty sensor .

• Replacement: Replace the assembly if the sensor fails to detect the piston, the LED is unresponsive, or the harness is damaged.

• Reinstallation Note: After servicing the intensifier, always ensure the proximity switches are reinstalled and tightened. Failure to do so will result in considerable spraying of hydraulic oil.

• Full Depressurization: Before any maintenance, fully depressurize the waterjet system (hydraulic and high-pressure circuits) and follow lockout/tagout procedures. Severe injury can result from high-pressure fluid release.
