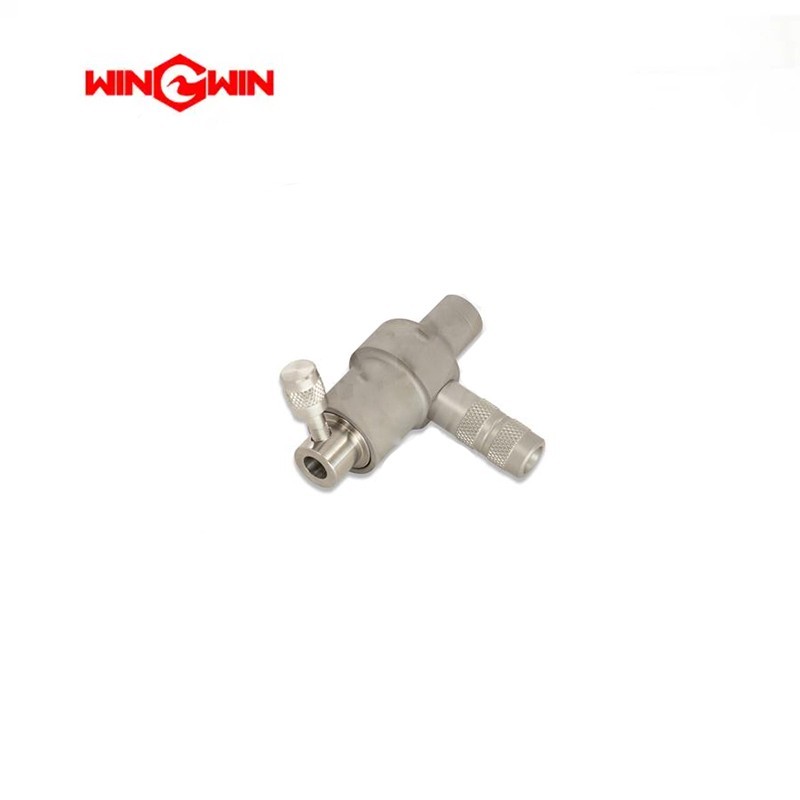

Product Name: Autoline™ Nozzle Assembly, .043 Wear Insert – Part No. 05147970

Description:
This component is a complete Autoline™ abrasive nozzle assembly specifically designed for high-pressure waterjet cutting systems . The .043 Wear Insert designation indicates that this assembly is configured with a 0.043 inch (approximately 1.09 mm) inner diameter wear insert (mixing chamber).

This assembly serves as the complete cutting head unit where the ultra-high-pressure waterjet and abrasive particles (typically garnet) are combined and focused into a coherent cutting stream . It is a critical consumable component that integrates multiple parts into a single, ready-to-install assembly.

According to the official parts diagram for the Autoline™ Abrasive Nozzle Assembly (Table 12-45), this assembly includes the following components :

This assembly is rated for continuous operation at 60,000-94,000 PSI (approximately 4,137-6,480 bar) and is compatible with Autoline™ series cutting heads . Cross-reference part numbers include AB05147970 (WSI equivalent) .

Applications:

• Serves as the complete abrasive cutting head assembly for Autoline™ series waterjet cutting systems

• Mixes abrasive particles (garnet) with the high-pressure waterjet just before the stream exits the nozzle

• Installed at the end of the high-pressure water line and abrasive feed tube

• Suitable for cutting hard materials including metal, stone, glass, ceramics, and composites

• Compatible with KMT AccuStream and other standard waterjet systems

Features:

• Complete Assembly: Includes all necessary components for the abrasive mixing section of the cutting head

• .043 Inch Wear Insert: Configured with a 0.043″ x 0.156″ tungsten carbide wear insert for optimal abrasive mixing

• Only Three Wear Parts: According to Autoline™ II documentation, the cutting head contains only three wear components: the orifice (water nozzle), the mixing chamber (wear insert), and the focusing tube (mixing tube)

• Self-Aligning Design: The assembly features self-aligning components that provide true, perfect alignment to extend the life of focusing tubes and mixing chambers

• Tool-Free Maintenance: The patented tool-free fixing system allows rapid replacement of the water nozzle (orifice) and focusing tube without disassembling the abrasive feed hose

• Leak Detection Feature: Equipped with a weep hole indicator that shows when components need tightening, eliminating over-tightening

• Efficient Abrasive Mixing: The angled abrasive inlet provides faster abrasive flow and optimized mixing efficiency

• Pure Water Compatibility: Capable of pure water cutting with the same nozzle; changeover takes only seconds

• Lowest Operating Cost: Independent tests have shown the Autoline™ design achieves the best overall cutting performance for speed and efficiency with the lowest operating cost

Maintenance:

When to Replace (Failure Diagnosis):

• Reduced Cutting Performance: Slower cutting speeds, rougher edge finish, or increased kerf width indicates wear insert or focusing tube wear

• Visible Wear During Inspection: Inspect the wear insert for signs of erosion, cracking, or bore enlargement. The wear insert is a consumable component that erodes over time

• O-Ring Failure: External water or abrasive leakage from the nozzle assembly indicates O-ring seal failure

• Water Leakage from Weep Hole: If the weep hole indicator shows water leakage, components need tightening or replacement

• Focusing Tube Wear: Check the exit orifice for ovality, flaring, or visible bore enlargement; replace when cut quality degrades

• Scheduled Preventive Maintenance: Replace wear components based on operating hours or when cutting performance degrades

Inspection and Replacement Guidelines:

• Only Three Wear Parts: The cutting head contains only three wear components: the orifice (water nozzle, not included in this assembly), the mixing chamber (wear insert, Item 3), and the focusing tube (mixing tube, ordered separately)

• Tool-Free Maintenance: The patented tool-free system allows rapid replacement of wear parts without special tools

• Component Relationships:

• This assembly (05147970) uses the .043 x .156 wear insert (05135827)

• For smaller orifices, use assembly 05078530 with .030 wear insert (05076955)

• Full Depressurization (Critical): Before any maintenance, fully depressurize the waterjet system and follow lockout/tagout procedures

• Clean Area Maintenance: Perform rebuilds in a designated clean area to prevent contamination of new components with abrasive particles

• Proper Lubrication: Apply manufacturer-recommended high-pressure grease to O-rings during installation to prevent pinching, rolling, or tearing

• Torque Compliance: When reassembling, tighten all retaining components to the specific torque values listed in the equipment service manual

• Alignment Check: Due to the self-aligning design, perfect alignment is maintained automatically; no manual alignment adjustment is required

• Weep Hole Monitoring: Use the leakage detection bore to verify correct installation of components

• Storage: Store spare assemblies in a clean, dry environment in protective packaging to prevent damage before use

• Cross-Reference Information: This assembly replaces KMT part number 05147970; WSI equivalent is AB05147970
