English Translation of Title:
High-Pressure Bushing for Water Jet Cutting Machine Parts – 56 x 25, Female-to-Male, Model No. 10079424-HP-Bushing-56-x-25-FM-Water-Jet-Parts.928.3-1

Introduction, Application, Features, and Maintenance:

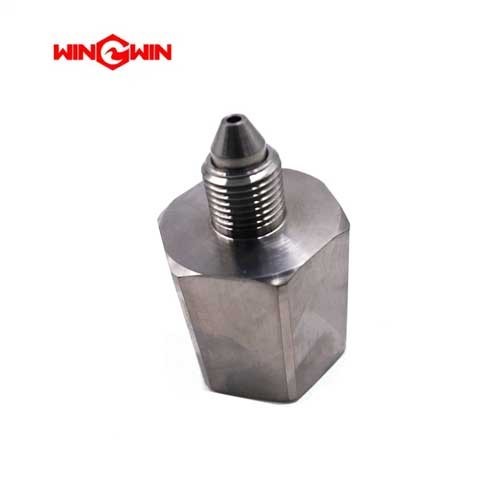

This component is a high-pressure reducing bushing with a female-to-male thread configuration, designed for water jet cutting systems. It connects two high-pressure components of different sizes, reducing from a larger female port to a smaller male port.

Application:
Used to adapt and connect high-pressure lines or fittings with mismatched thread sizes in water jet cutting machines, typically between the pump, cutting head, or other hydraulic components where size reduction is required.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Female-to-male (FM) configuration allows direct size reduction without additional adapters.

• Reduces from 56 mm interface to 25 mm interface, enabling compatibility across different system sections.

• Constructed from high-strength, corrosion-resistant material suitable for abrasive water jet media.

• Compact design minimizes additional leak points in the high-pressure circuit.

Maintenance:

• Regularly inspect the bushing body, threads, and sealing surfaces for signs of erosion, cracking, or thread damage.

• Check for high-pressure leakage at both connection ends during operation.

• Replace immediately if any surface pitting, deformed threads, or pressure loss is detected.

• Always use compatible seals or washers as required by the specific connection type.

• Follow specified torque values when tightening female and male ends.
