English Translation of Title:

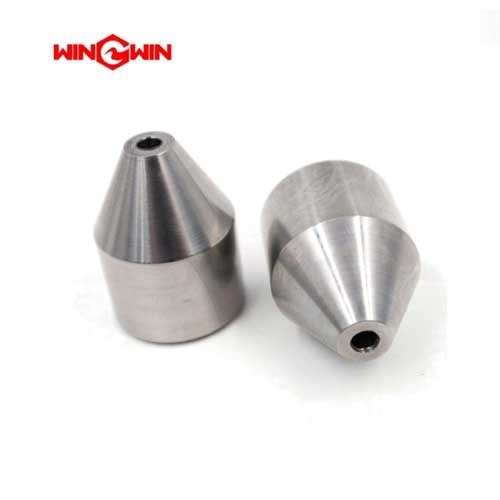

Water Jet Cutting Machine Parts – Adapter Cone, Model No. 10079291-SL-VI-50HP-Waterjet-Parts-Adapter-Cone-56.946.3-1

Introduction, Application, Features, and Maintenance:

This component is an adapter cone designed for high-pressure water jet cutting systems. It serves as a transitional fitting that connects components with different diameters or thread types, typically featuring a tapered conical design.

Application:
Used to adapt and seal connections between dissimilar high-pressure components in water jet cutting machines, such as between the high-pressure line and the cutting head, or between pump outlets and delivery tubing.

Features:

• Rated for extreme pressures common in water jet cutting, up to 6,000 bar (87,000 psi).

• Tapered cone geometry ensures a metal-to-metal sealing interface for reliable high-pressure containment.

• Facilitates smooth transition between different connection sizes or standards.

• Manufactured from high-strength, corrosion-resistant material to withstand abrasive slurry and high-velocity water.

• Precision-machined sealing surfaces reduce the risk of leaks.

Maintenance:

• Regularly inspect the cone sealing surfaces for signs of galling, erosion, or deformation.

• Check for high-pressure water leakage around the adapter during operation.

• Replace the adapter cone immediately if sealing surfaces are damaged or if pressure loss is observed.

• Do not reuse a damaged cone, as proper sealing cannot be guaranteed.

• Follow specified torque values when assembling adjacent components.
