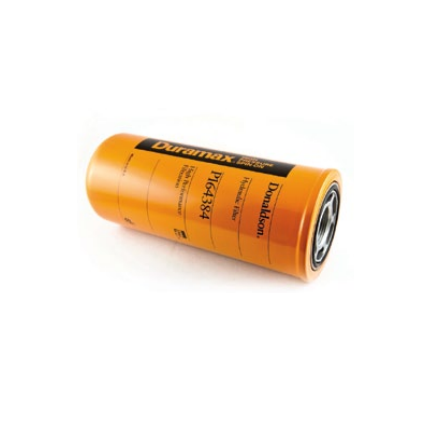

Product Name: Hydraulic Oil Filter Element (Part No. 400041-1)

Description:
The Hydraulic Oil Filter Element 400041-1 is a critical maintenance component for the hydraulic system of a high-pressure waterjet intensifier pump . Its primary function is to remove contaminants, metal wear debris, and sludge from the hydraulic oil as it circulates through the system .

The oil filter works by forcing the hydraulic fluid through a filter cartridge, which traps particles and impurities . The filtered oil is then returned to the hydraulic system to lubricate and cool the pump's moving parts . Maintaining clean hydraulic oil is essential for preventing damage to the pump, ensuring consistent intensifier cycling, and protecting other critical components such as valves, seals, and pistons .

Applications:

• Installed in the hydraulic fluid circuit of waterjet intensifier pumps

• Filters hydraulic oil returning to the reservoir or flowing to critical pump components

• Suitable for standard waterjet systems operating at 40,000–60,000 PSI

• An OEM direct replacement part for intensifier pump hydraulic systems

Features:

• High Contaminant Capacity: Captures fine metal particles and wear debris generated during normal pump operation

• Consumable Design: A single-use, replaceable element that is not intended to be cleaned and reused

• Protective Function: Plays a critical role in extending the service life of expensive hydraulic components, including the hydraulic cylinder, piston assembly, and seals

• Direct OEM Replacement: Interchangeable with the standard filter element for waterjet intensifier hydraulic systems

Maintenance:

When to Replace (Failure Diagnosis):

• Scheduled Replacement: This is a preventive maintenance part. It should be replaced regularly based on operating hours, typically during scheduled maintenance intervals .

• Clogging Indicator: If the system is equipped with a filter service indicator, replace the element when the indicator shows red or reaches the specified pressure differential.

• Hydraulic Performance Issues: If the intensifier cycles sluggishly, the pump runs excessively hot, or there is a loss of cutting pressure, a clogged filter may be restricting oil flow .

• Fluid Condition: If the hydraulic oil appears dark, milky, or contains visible particles, the filter should be inspected and likely replaced.

Replacement Guidelines:

• Full Depressurization (Critical): Before servicing, completely shut down the high-pressure water system, stop the hydraulic pump, and follow lockout/tagout procedures to release all residual hydraulic pressure.

• Clean Mounting Surface: Thoroughly wipe the filter head's sealing surface clean before installing the new element to prevent debris ingress.

• Inspect Housing: Check the filter housing for damage, cracks, or corrosion before installing the new element.

• Lubricate Seal: Apply a thin film of clean hydraulic oil to the O-ring seal on the new filter element to ensure it seats properly and does not tear during installation.

• Hand Tighten Only: Spin the new filter onto the head until the gasket contacts the sealing surface, then tighten an additional 1/2 to 3/4 turn by hand. Do not use a wrench to over-tighten, as this can damage the seal or filter head.

• Check for Leaks: After installation, run the hydraulic system and inspect the filter head for any signs of external oil leakage.

• Proper Disposal: Dispose of the used filter and any drained hydraulic oil in accordance with local environmental regulations.
