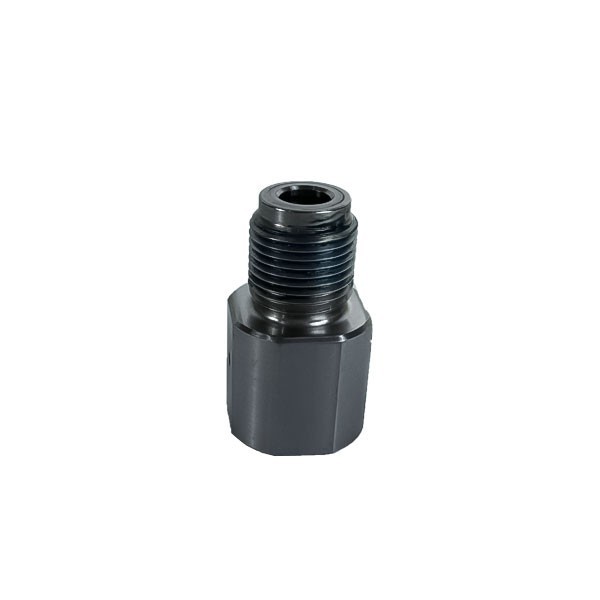

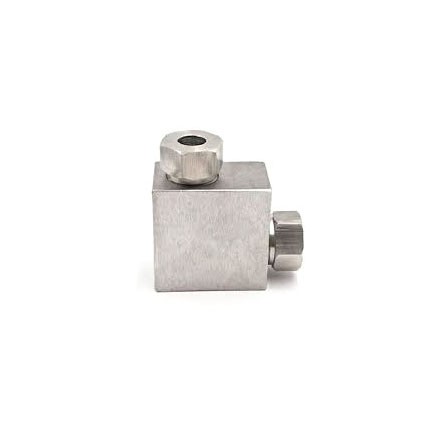

Product Name: Outlet Body, Check Valve, 15 GPM, 60k / Outlet Check Valve Body (Part No. 100022-2)

Description:
This component is the outlet body of a high-pressure check valve assembly, specifically designed for 60,000 PSI (approximately 4,137 bar), 15 GPM waterjet intensifier pumps . It is a precision-machined stainless steel housing that serves as the discharge manifold, directing pressurized water from the intensifier cylinder toward the high-pressure outlet line and cutting head.

The outlet check valve body contains internal flow passages and a precision-machined cavity that houses the outlet poppet, valve seat, spring, and sealing elements . It functions as a one-way flow control device, allowing high-pressure water to exit the cylinder during the compression stroke while preventing reverse flow during the intake stroke. This component is installed on the high-pressure outlet side of the intensifier, opposite the inlet check valve assembly.

Applications:

• Directs high-pressure water flow from the intensifier cylinder to the outlet manifold and cutting head

• Houses the outlet poppet and seat for one-way flow control

• Suitable for 60,000 PSI, 15 GPM waterjet intensifier systems

• Compatible with standard intensifier pumps from major manufacturers

Features:

• High-Strength Stainless Steel Construction: Provides exceptional corrosion resistance and structural integrity under extreme pressure cycling

• Precision-Machined Internal Passages: Optimized flow geometry minimizes turbulence and pressure drop

• 60,000 PSI & 15 GPM Rating: Engineered for continuous ultra-high pressure operation with medium flow capacity

• Integrated Valve Cavity: Precision-bored chamber accepts outlet poppet, seat, spring, and seals

• OEM Compatibility: Direct replacement for standard outlet check valve bodies

Maintenance:

Failure Diagnosis:

• Pressure Drop: Inability to maintain rated cutting pressure may indicate worn outlet poppet or seat within the body

• Overheating: An outlet body that runs significantly hotter than normal suggests internal leakage

• External Water Leakage: Visible weeping from the body indicates seal failure requiring immediate service

• Contaminated Water: Milky appearance in the low-pressure water supply suggests high-pressure water crossover

Inspection and Replacement Guidelines:

• Disassembly: Fully depressurize the system, remove the cylinder head end cap, and extract the outlet check valve body

• Internal Inspection: Clean the internal cavity and inspect sealing surfaces for pitting, scoring, erosion, or cracks

• Poppet and Seat Replacement: Always replace the outlet poppet, valve seat, spring, and O-rings whenever the outlet body is serviced

• Torque Compliance: Tighten the cylinder head end cap to the specific torque value listed in the equipment service manual

• Replacement Criteria: Replace the outlet body immediately if cracks, severe internal erosion, or thread damage is detected

• Full Depressurization: Always fully depressurize the waterjet system and follow lockout/tagout procedures before servicing
